AR91.29-P-1200SC Remove/Install Head Restraint Drive
AR91.29-P-1200SC Remove/Install Head Restraint Drive
AR91.29-P-1200SC Remove/install Head Restraint Drive
- Front seat

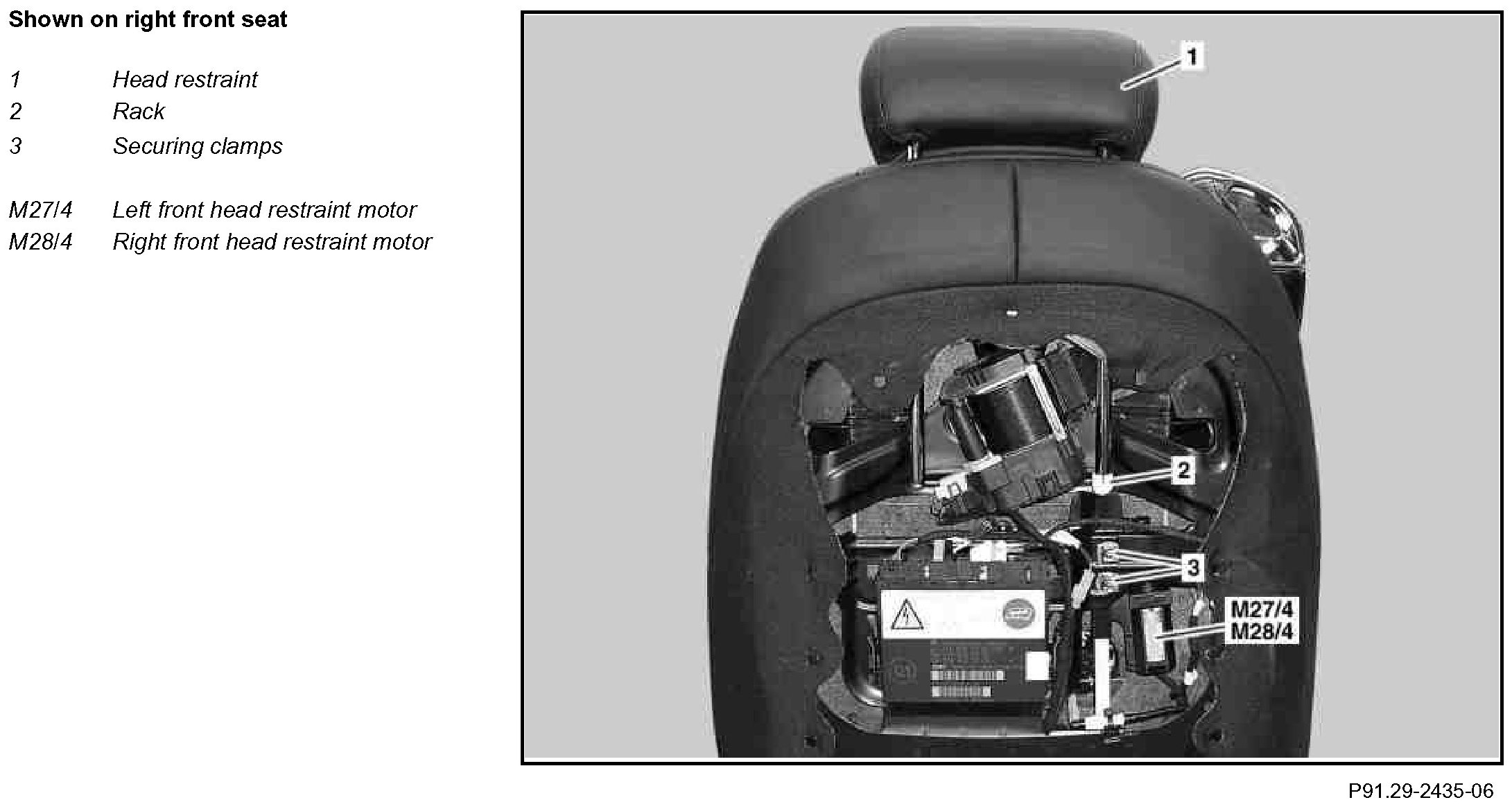

Component Identification:

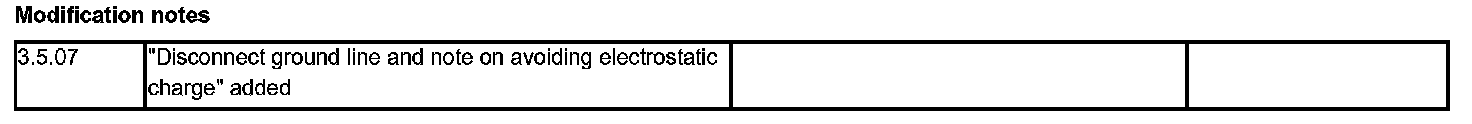

Modification Notes:

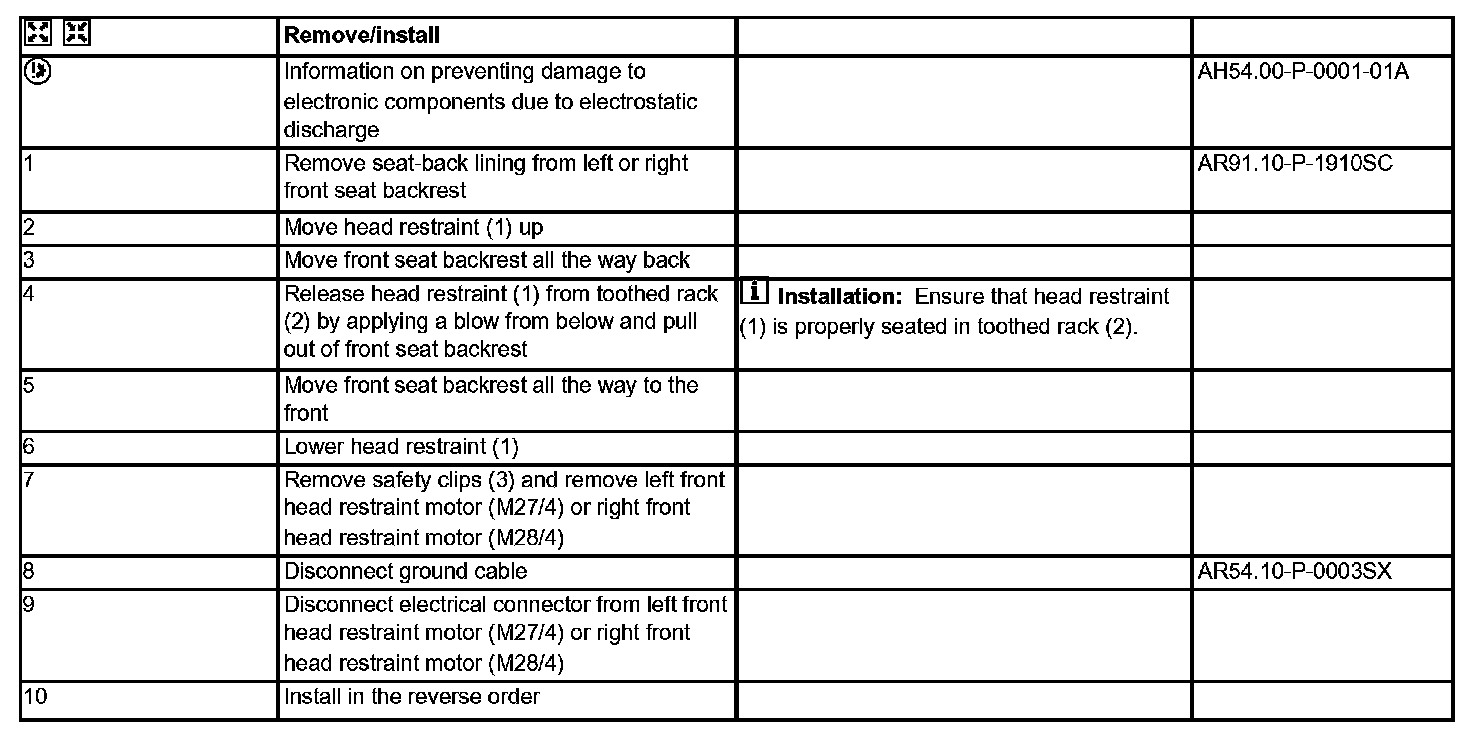

Steps 1-10:
