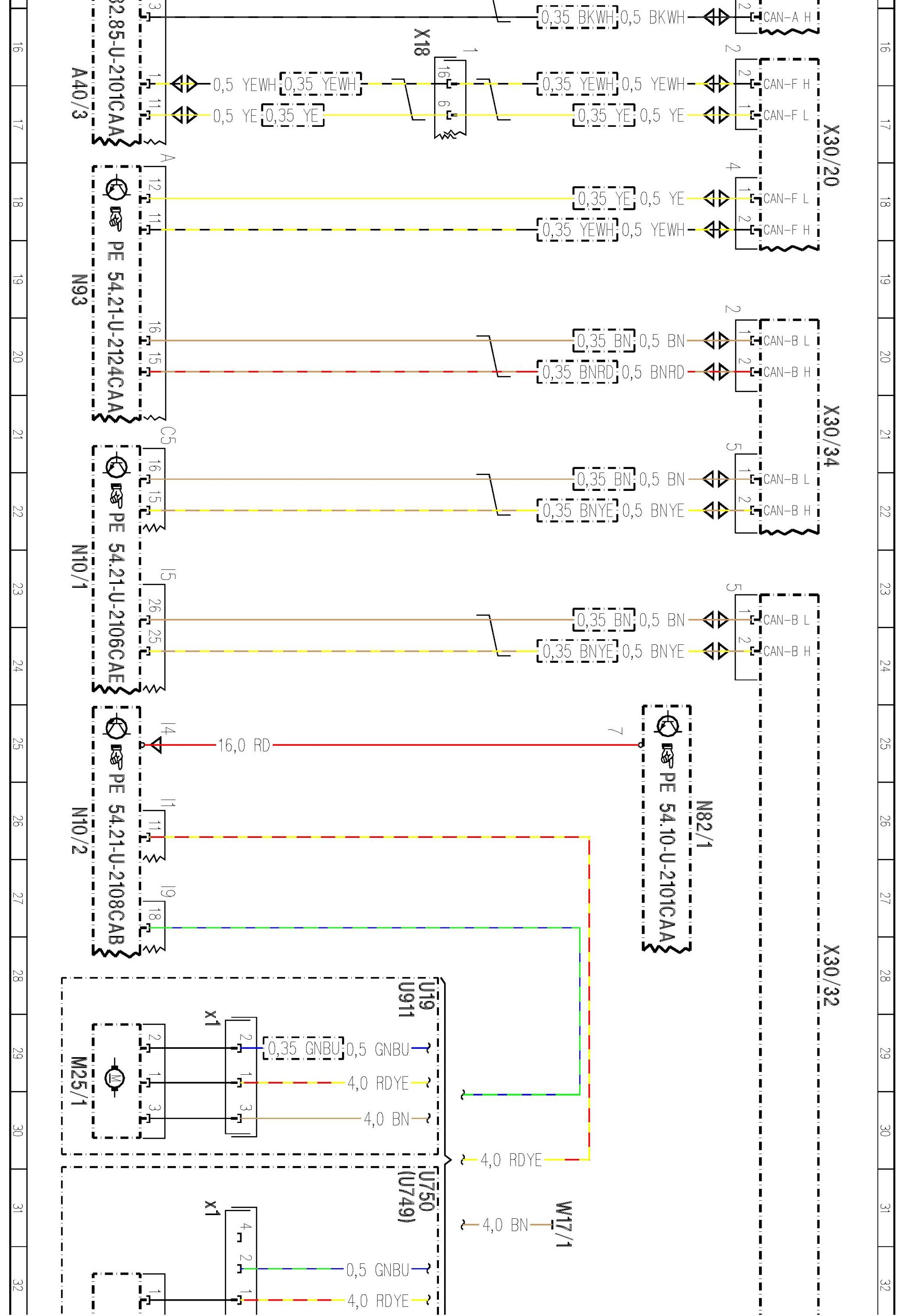

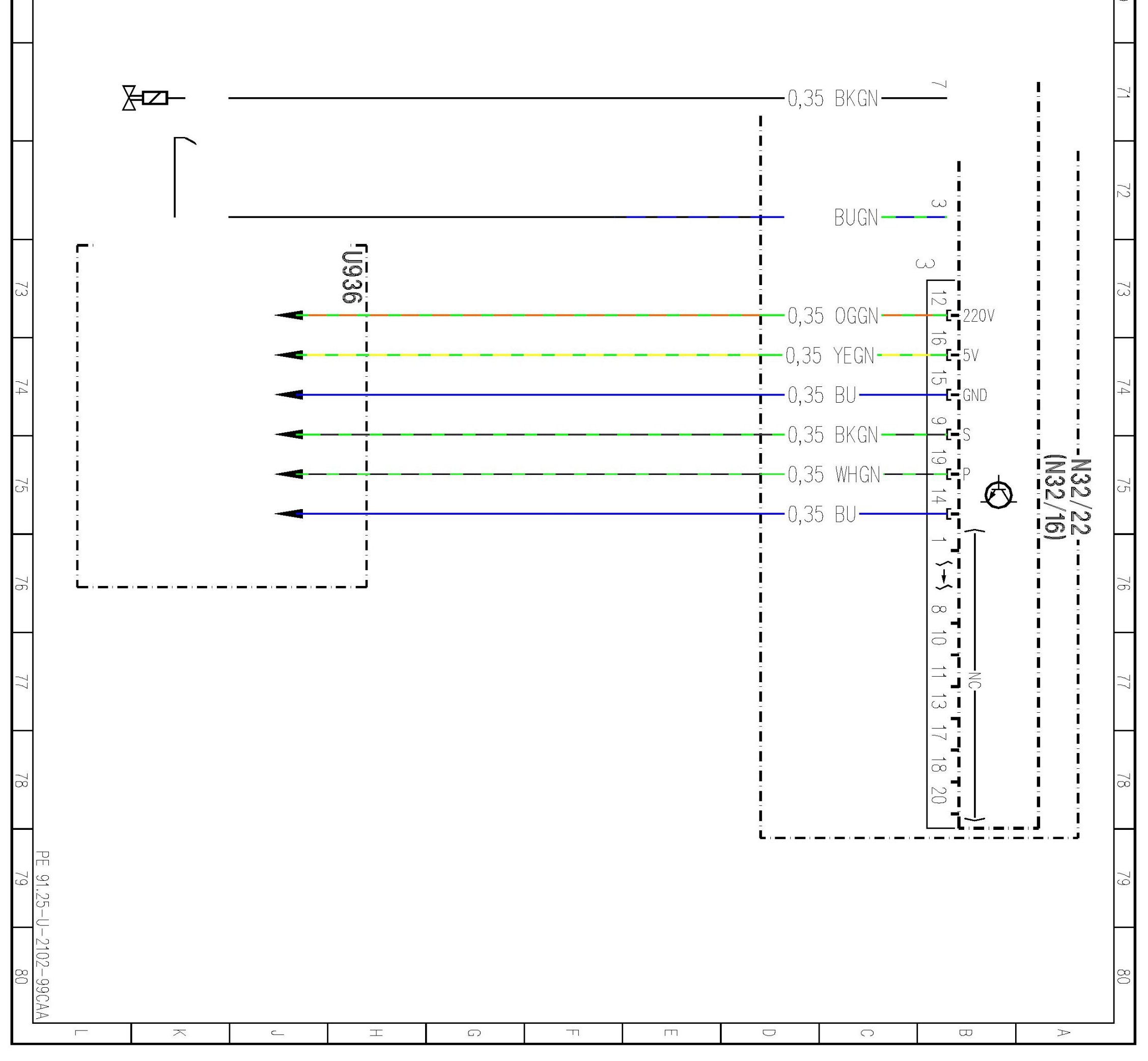

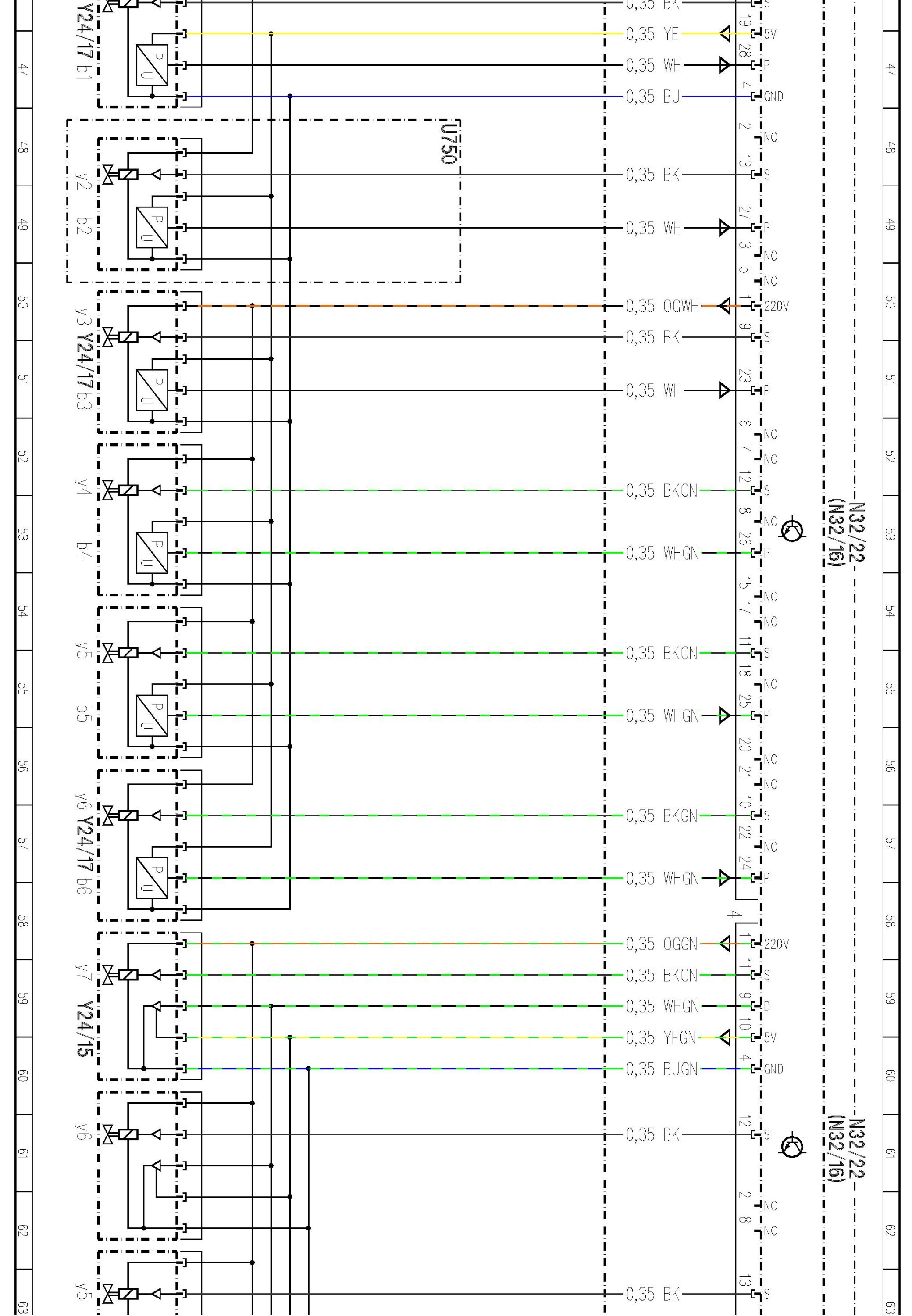

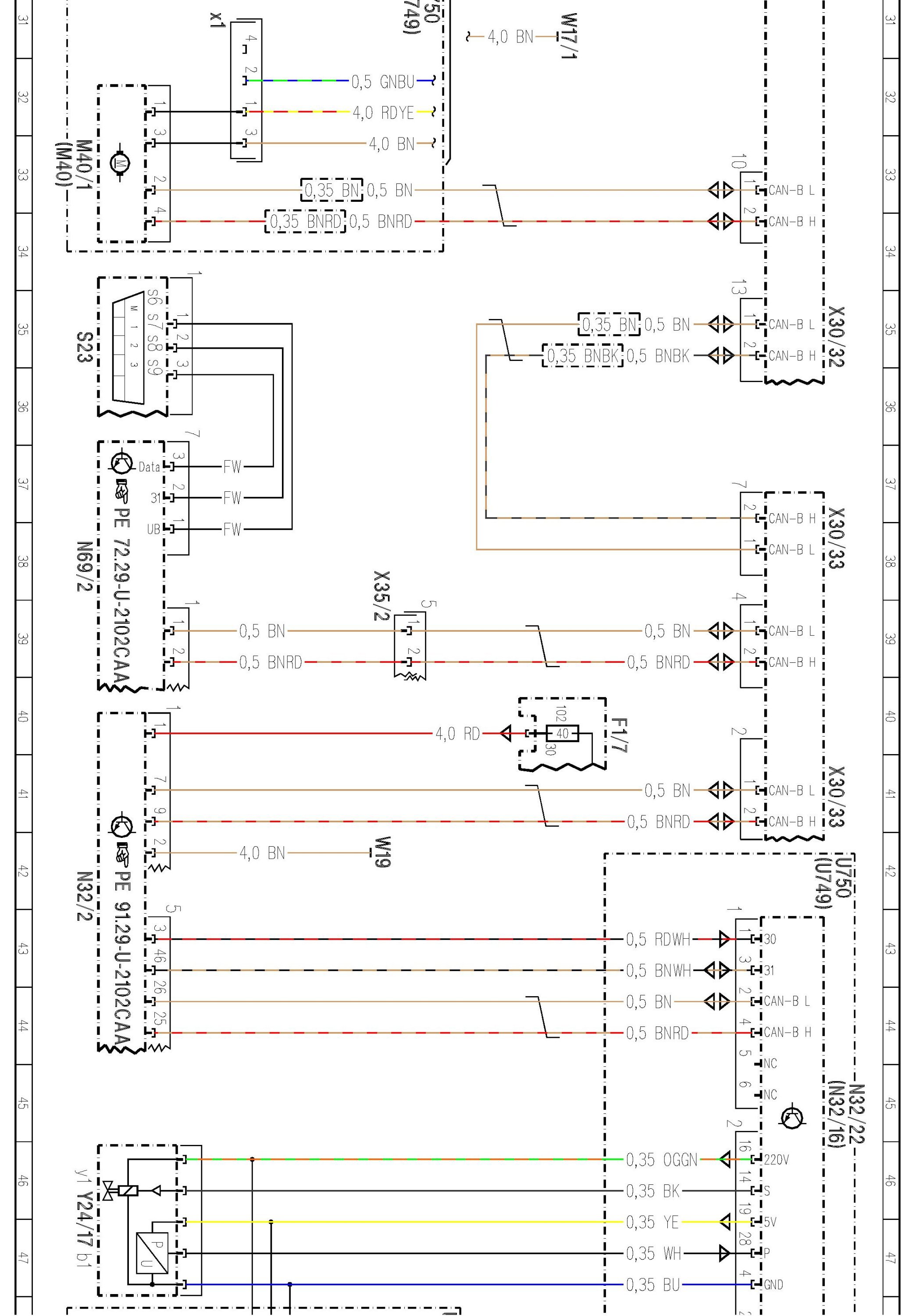

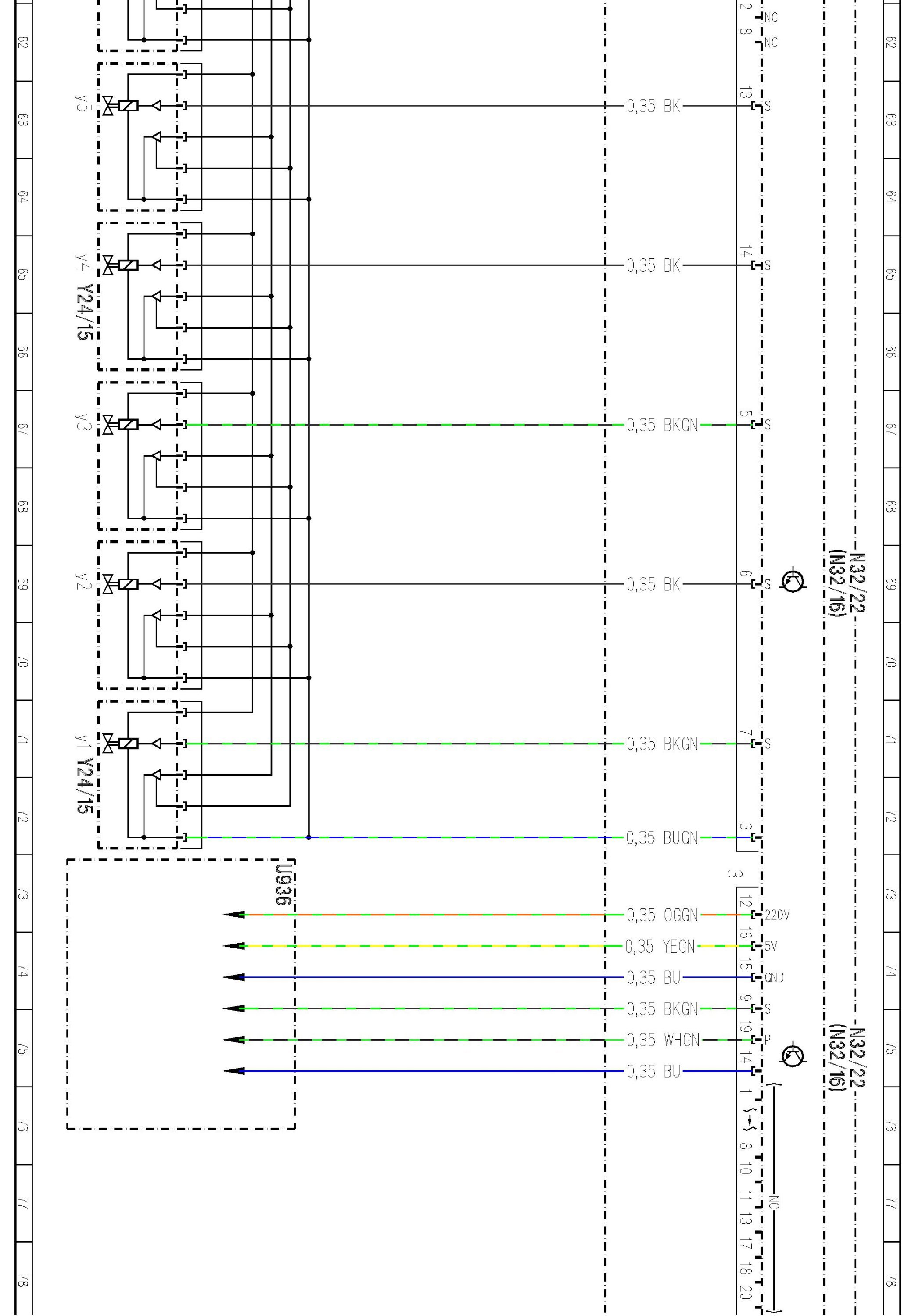

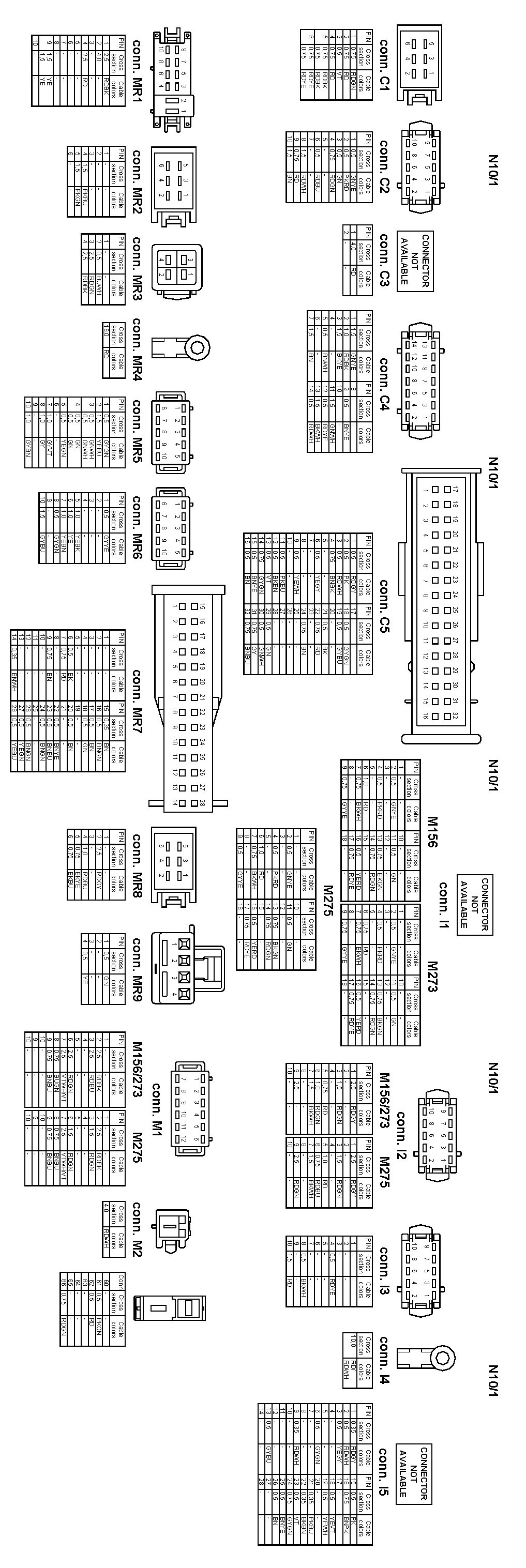

PE91.25-U-2102CAA Right Front Dynamic Seat Control Module

PE91.25-U-2102CAA Right Front Dynamic Seat Control Module

MODEL 216
- with CODE (409) Left/right front multicontour seat
- up to Model Year 2011
- Control unit N32/16
MODEL 216
- with CODE (432) Left and right dynamic multicontour seat
- Control unit N32/22







































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
