AZ68.30-P-0005SC Retrofit Unilluminated Door Sill




AZ68.30-P-0005SC Retrofit Unilluminated Door Sill
MODEL 216

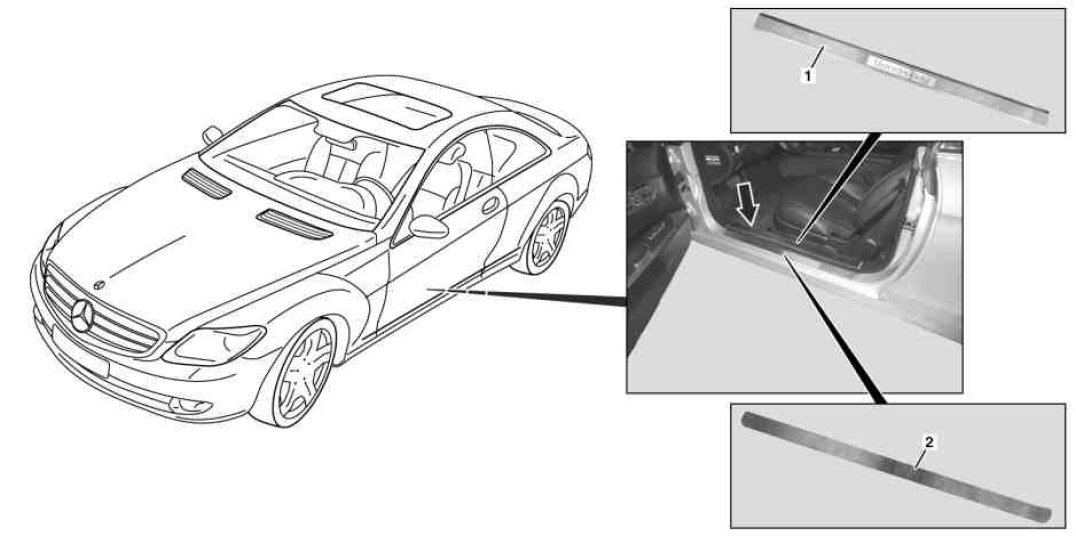

1 Inner stainless steel door sill molding
2 Outer stainless steel door sill molding








110 589 03 59 00
Mounting wedge
