Hood Hinge: Service and Repair



AR88.40-P-3060SX Remove/install Hood Hinge

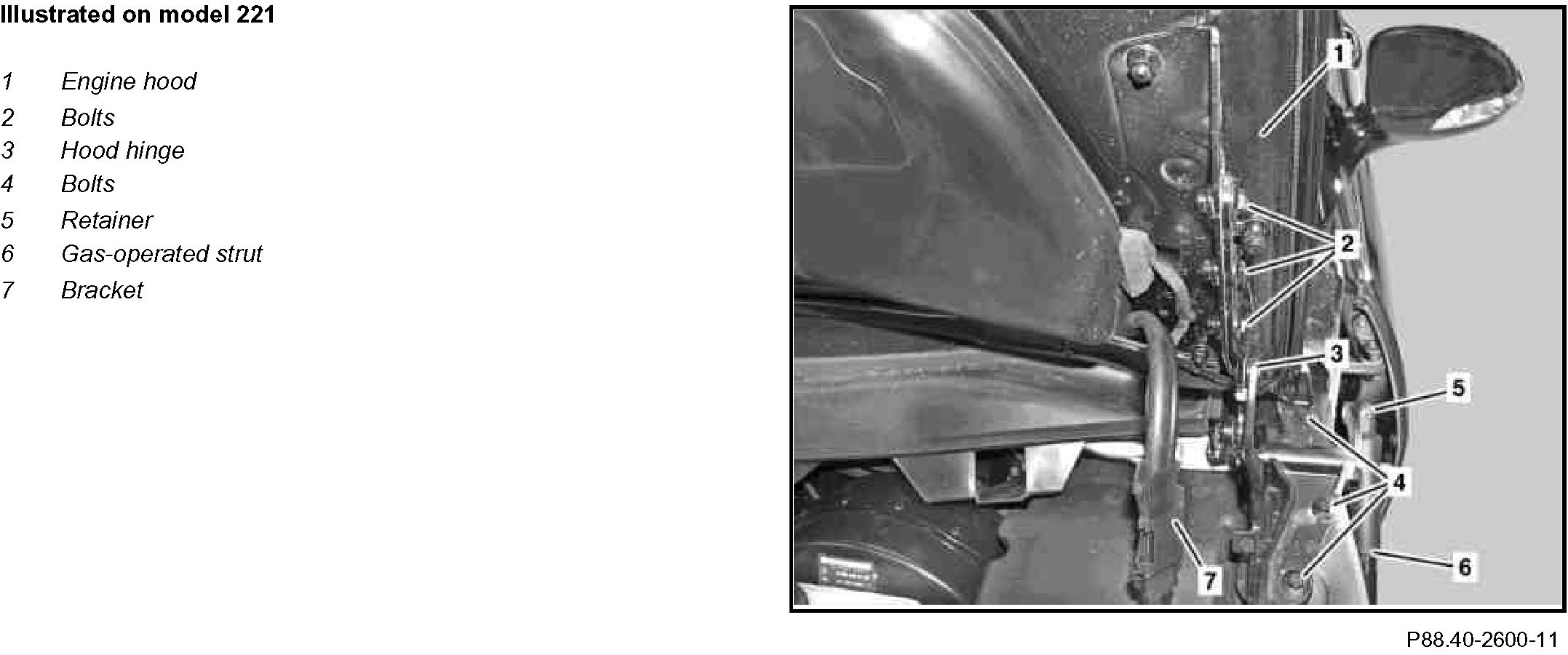

Component Identification:

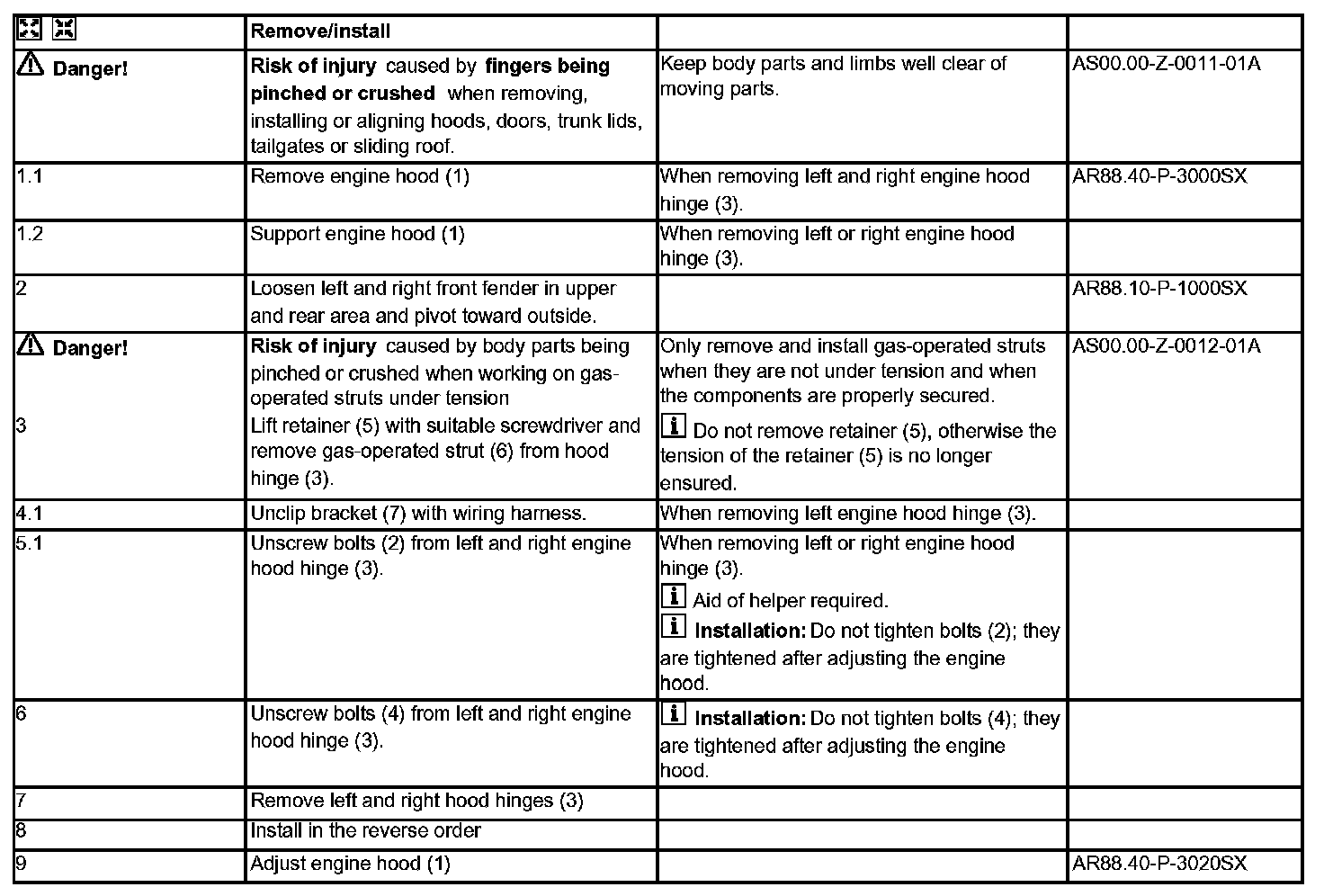

Steps 1.1-9:
