AR88.20-P-2200SC Remove/install Rear
Bumper

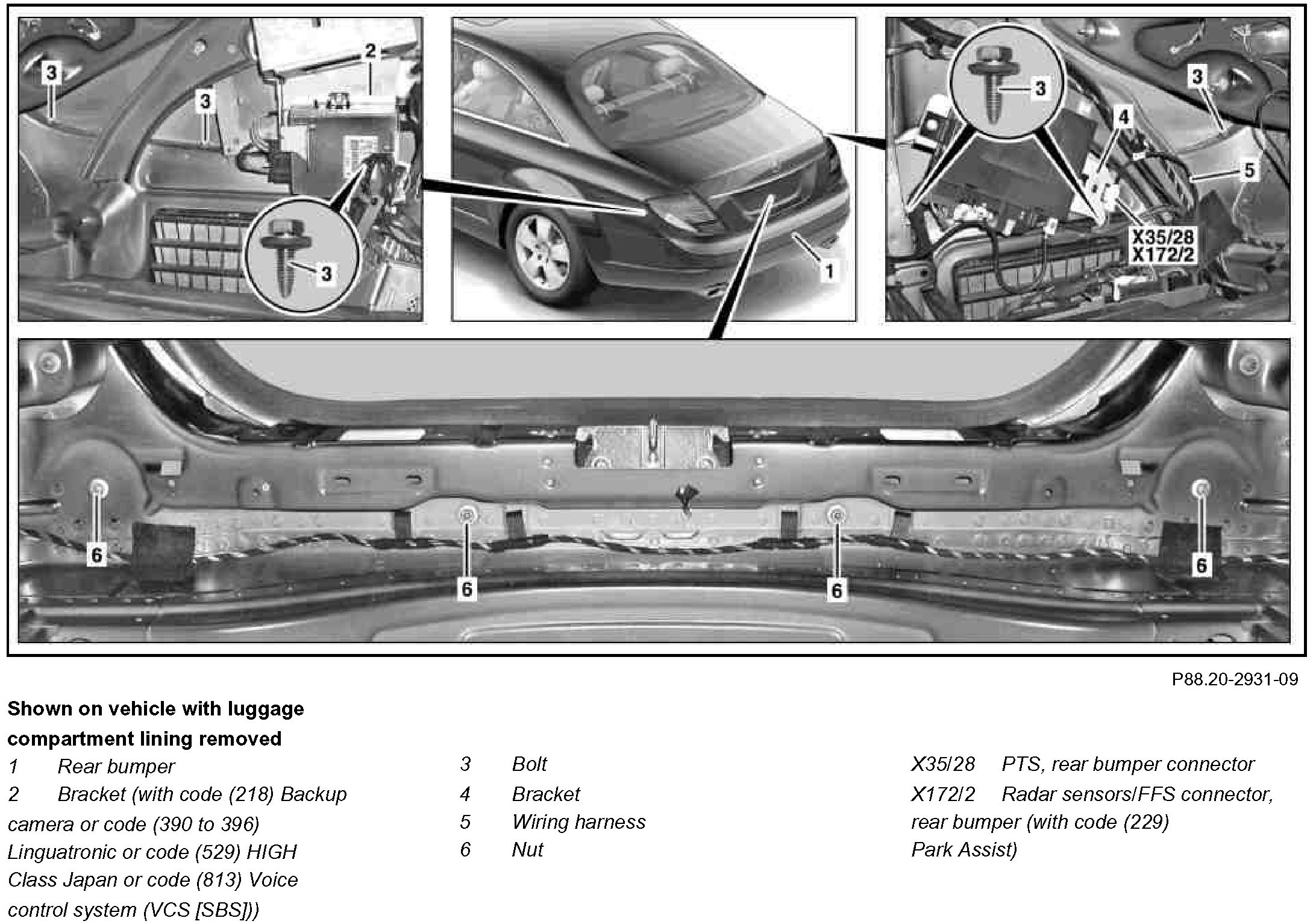

Component Identification:

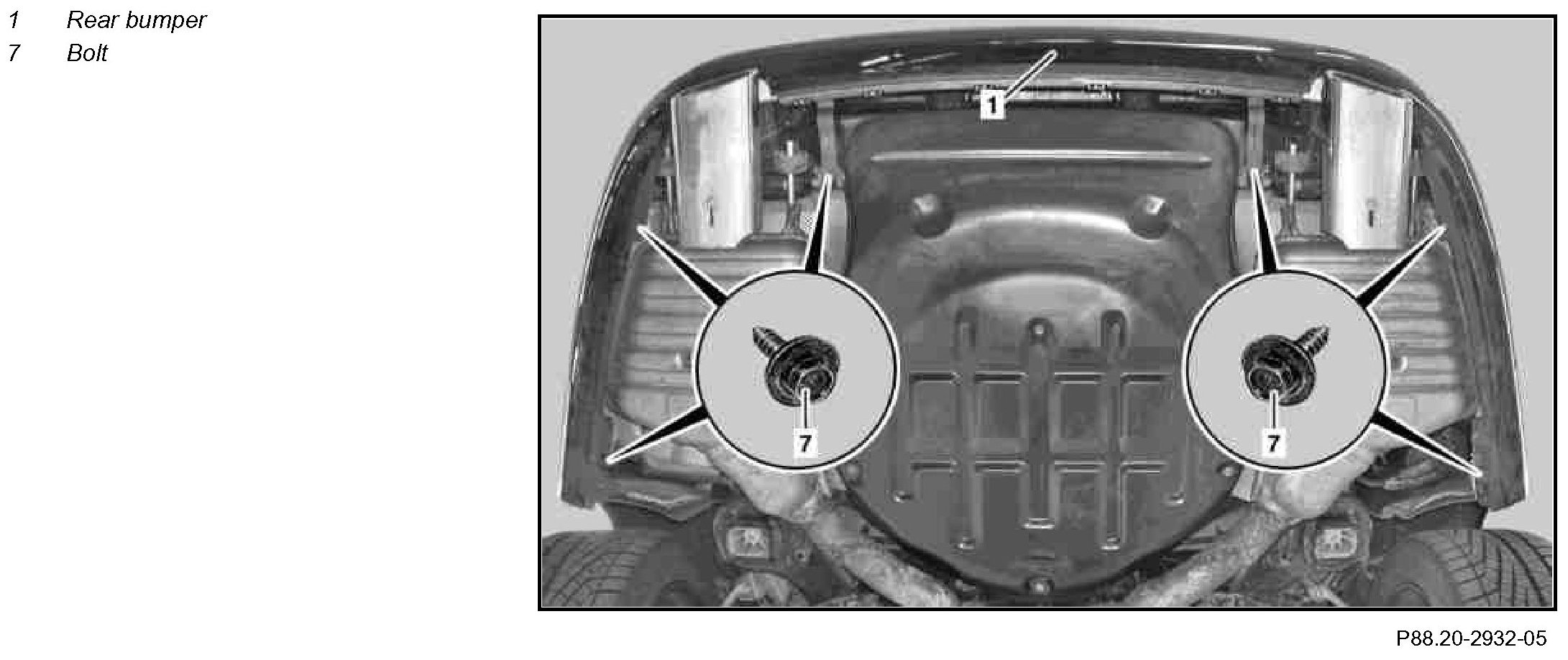

Component Identification:

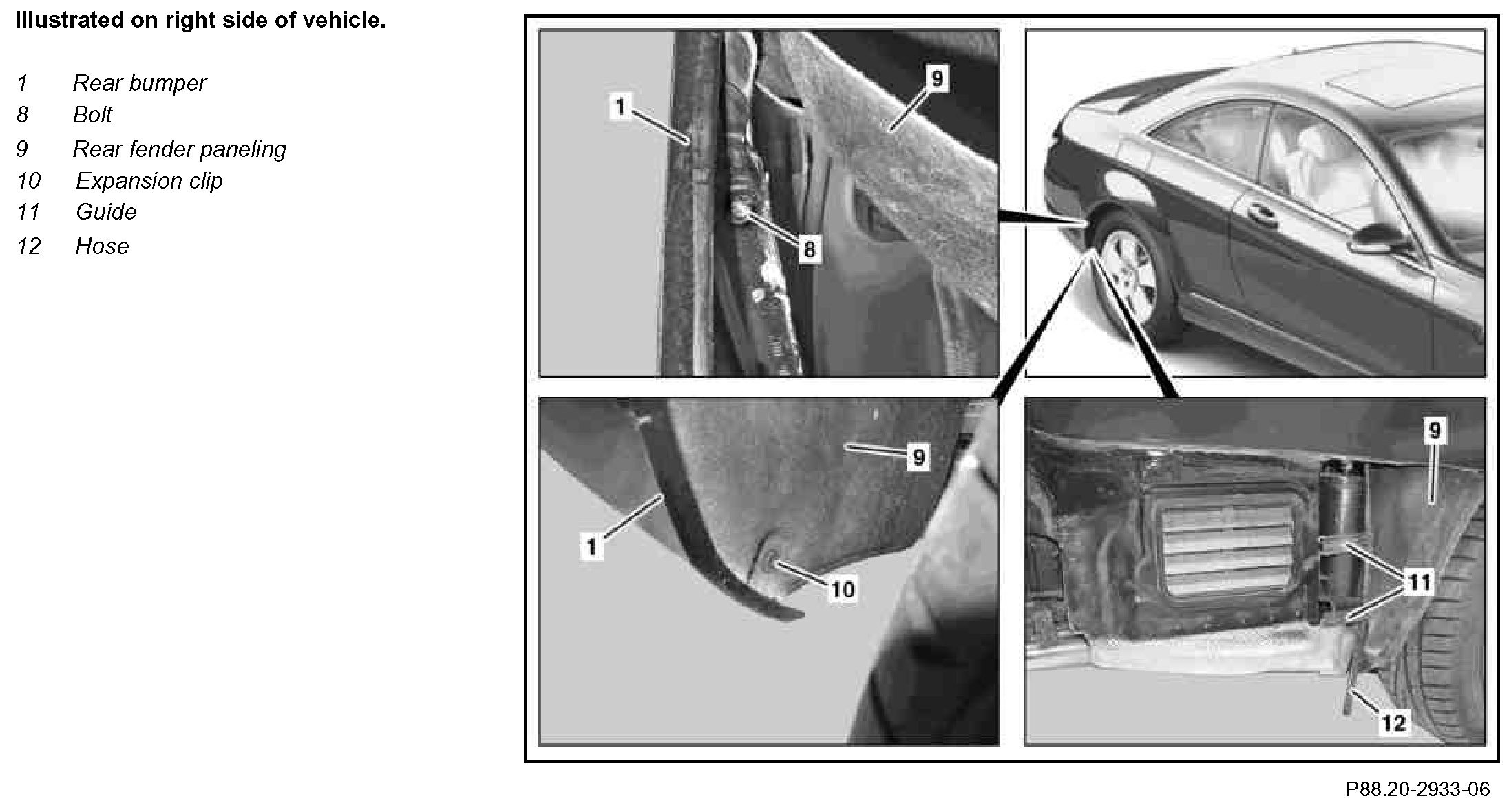

Component Identification:

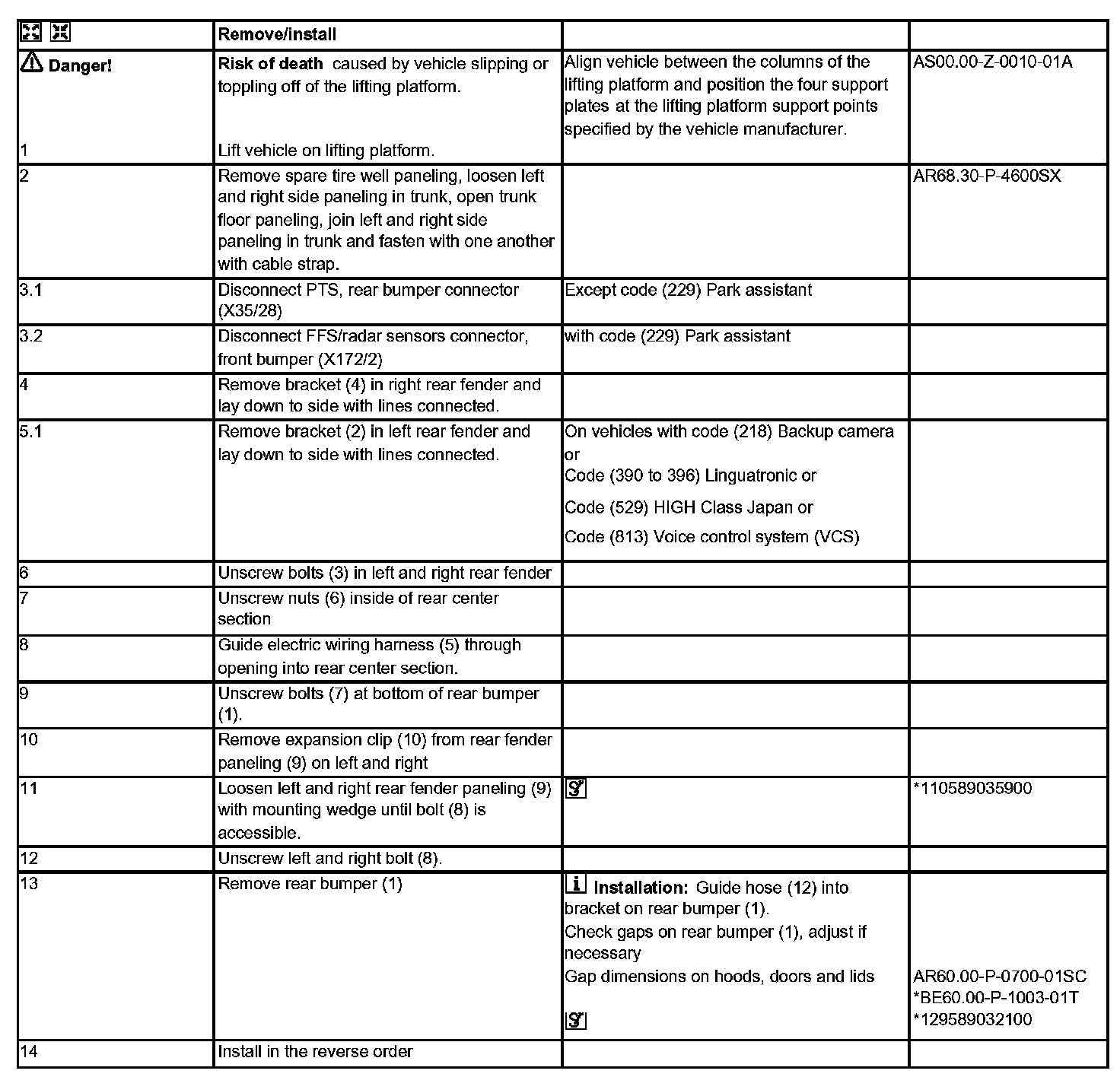

Steps 1-14:

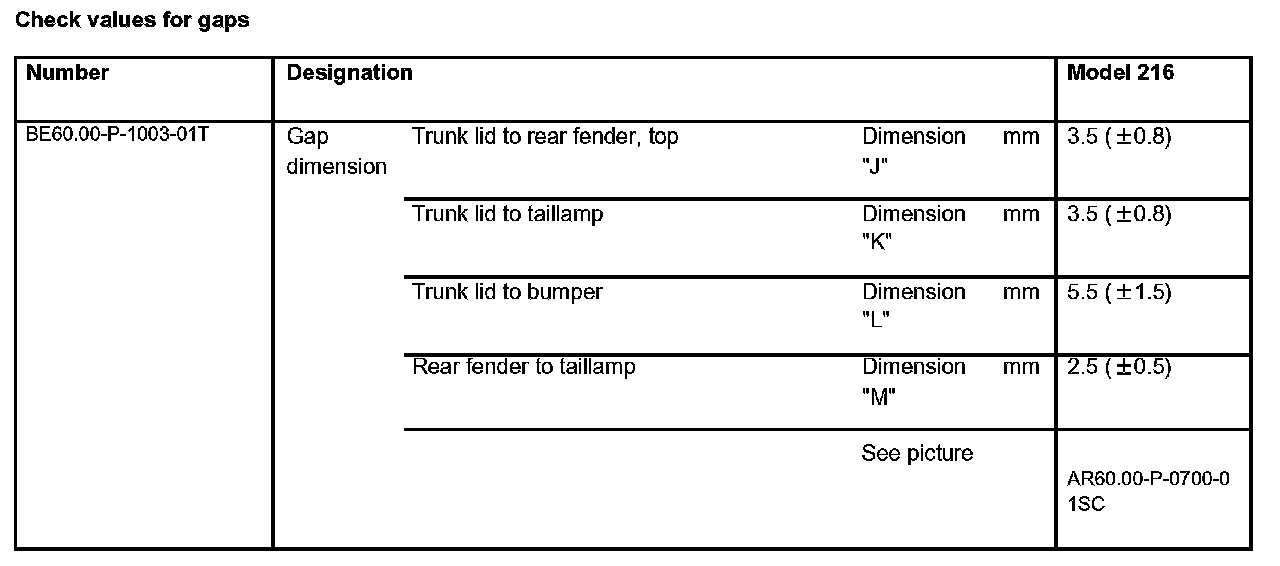

Check Values For Gaps:

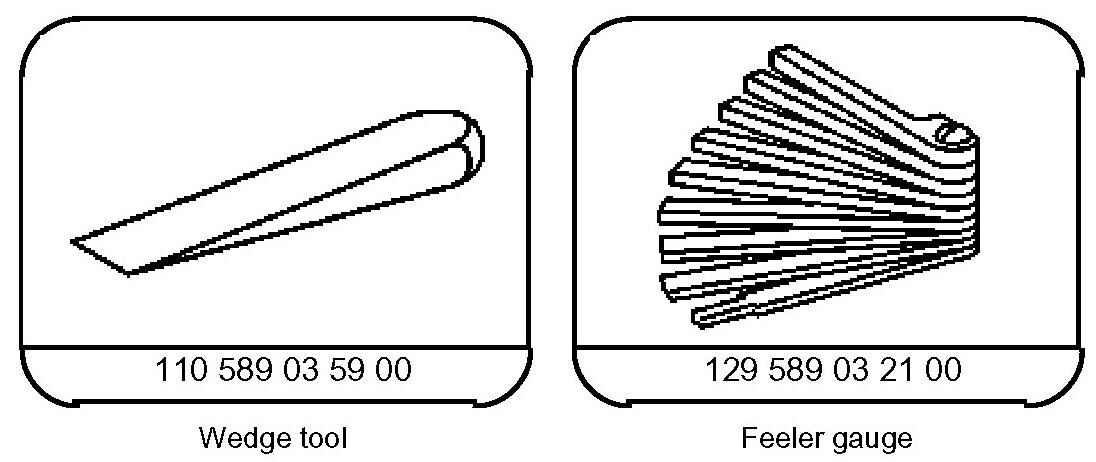

Special Tools:
