Home >> Mercedes Benz >> 2011 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> AR82.62-P-7845SC Remove/Install Loudspeakers In Front Doors

AR82.62-P-7845SC Remove/Install Loudspeakers In Front Doors



AR82.62-P-7845SC Remove/Install Loudspeakers In Front Doors

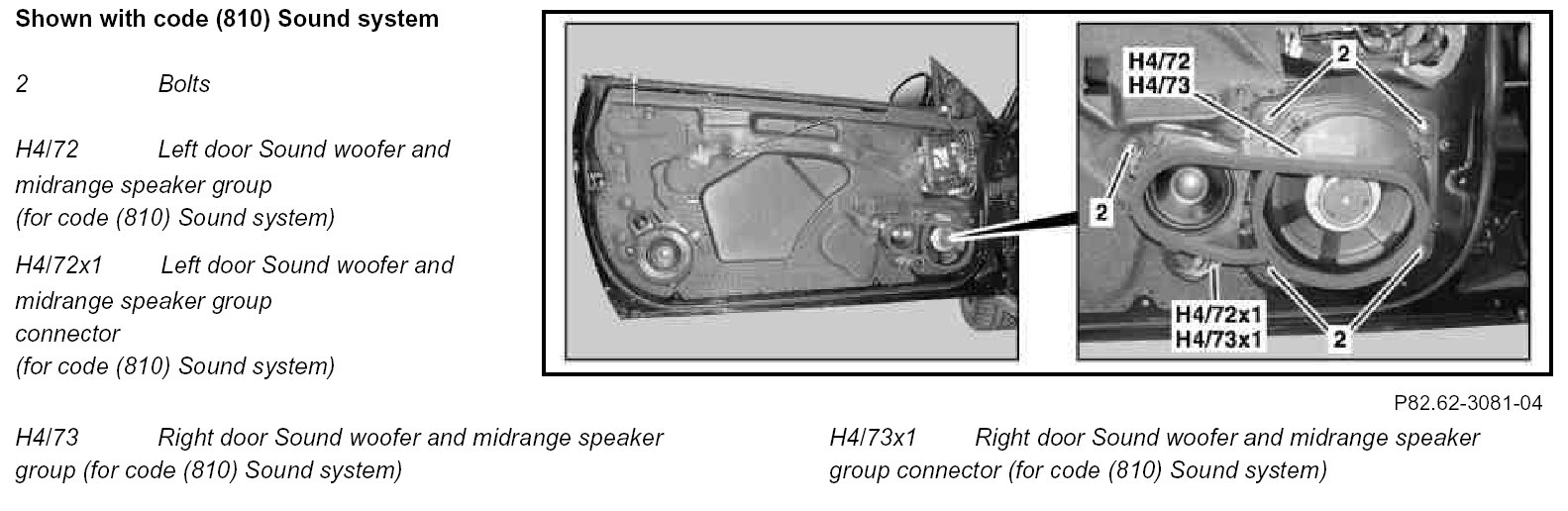

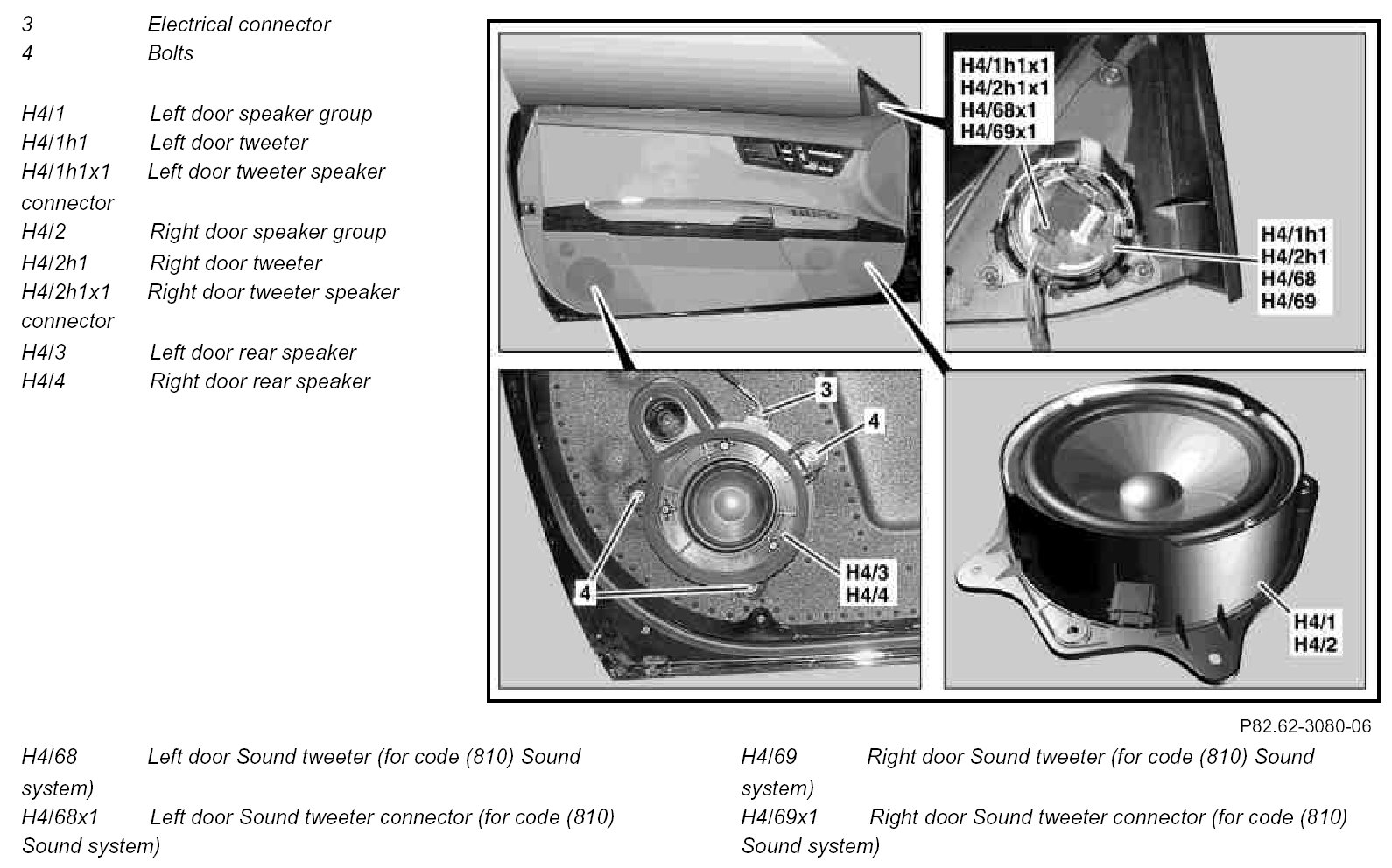

Component Identification:




Component Identification:

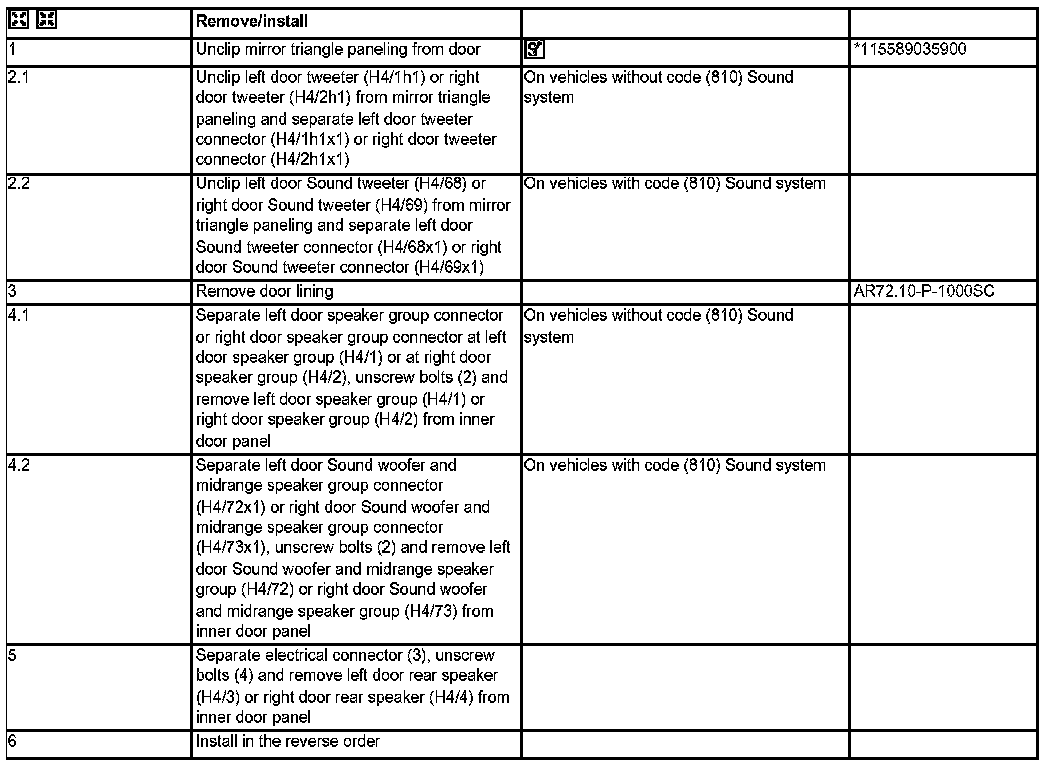

Steps 1 - 6:

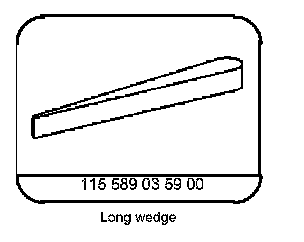

Special Tools:
