Television / Monitor: Service and Repair
AR82.85-P-7366SX Remove/Install TV Tuner
- with CODE (863) Digital/analog TV tuner

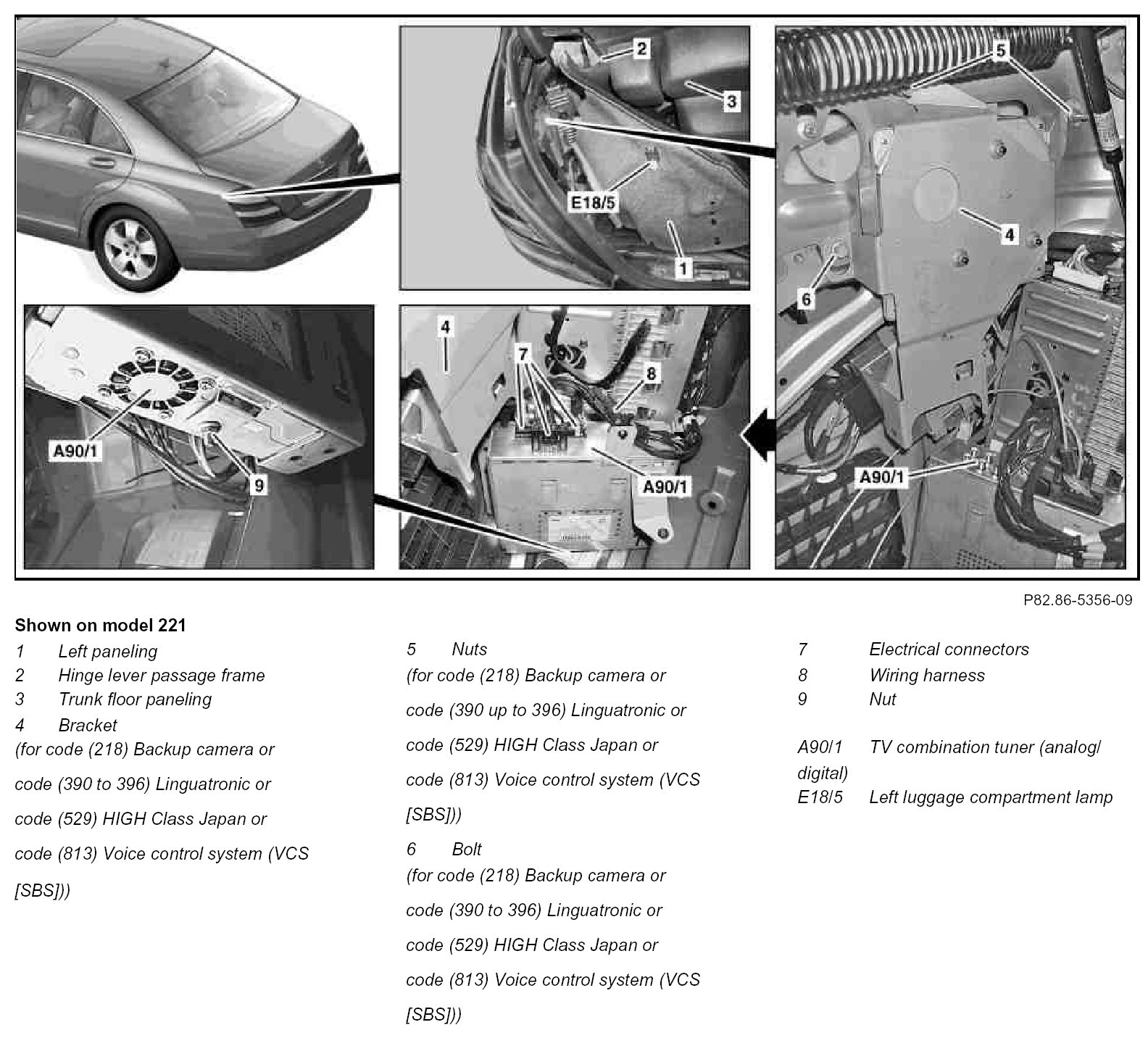

Component Identification:

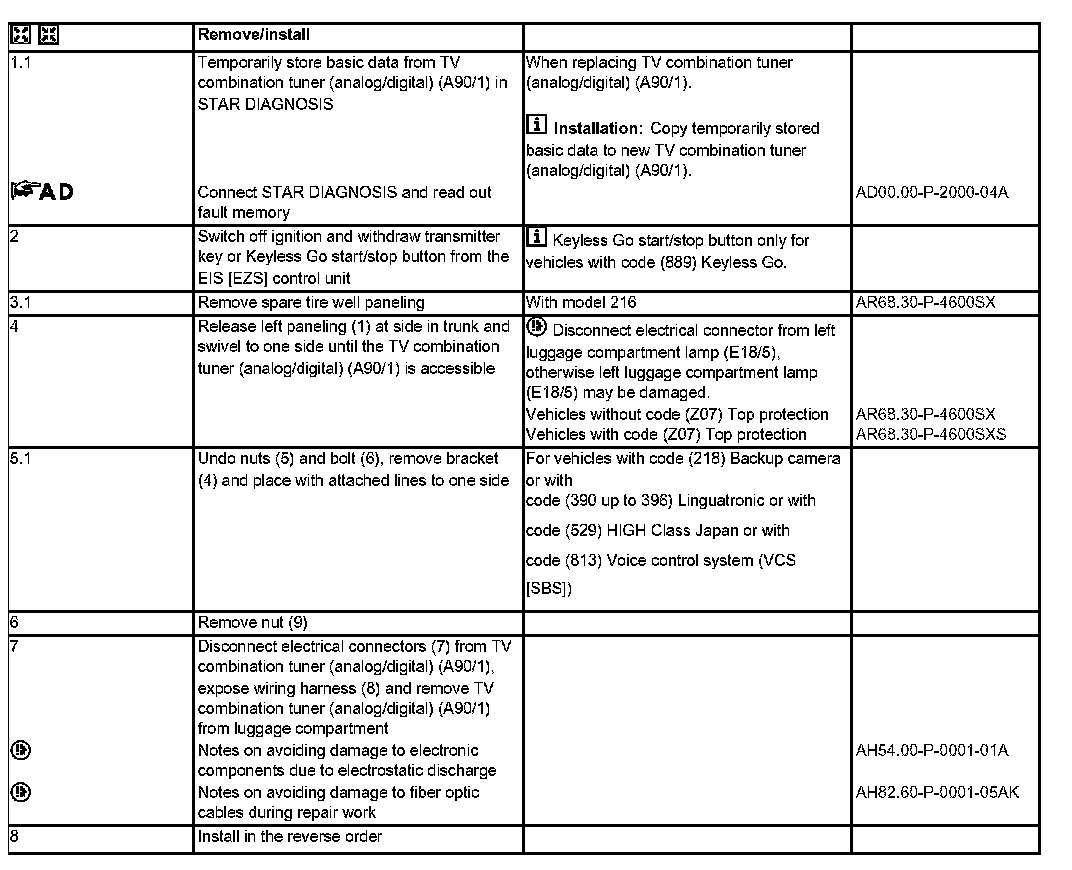

Steps 1.1 - 8:
