AR54.10-P-1128CW Check Condition Of Additional Battery

AR54.10-P-1128CW Check Condition Of Additional Battery
- MODEL 204.0 /2 /3
- with CODE (B03) ECO start/stop function

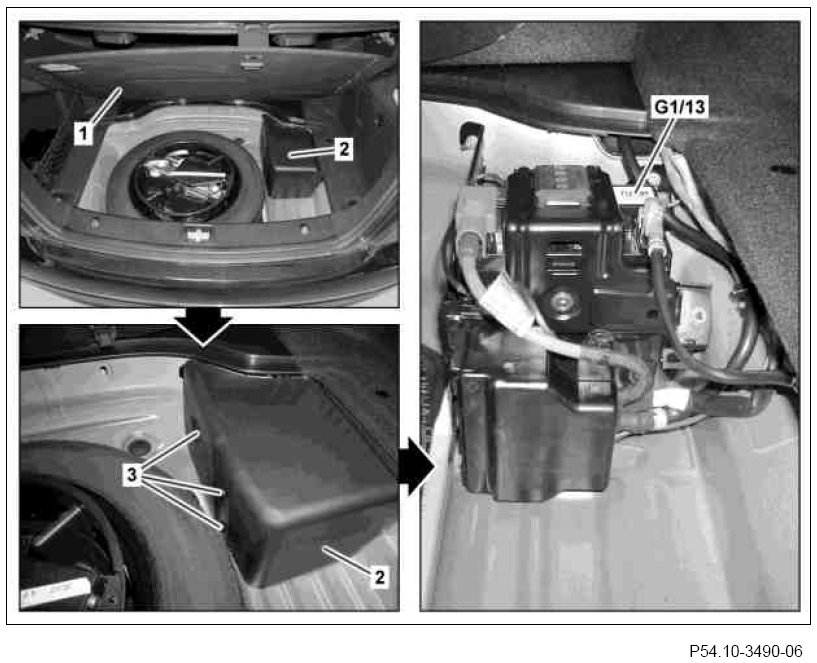

Shown on model 204.0






1 Luggage compartment floor covering
2 Covering for additional battery
3 Expansion clip
G1/13 ECO start/stop function additional battery



















452 589 01 63 00, Snap-release tool
