Front Door Latch: Service and Repair



AR72.10-P-4011CW Remove/Install Front Door Lock
- except CODE (Z04) Light armoring [models 212]

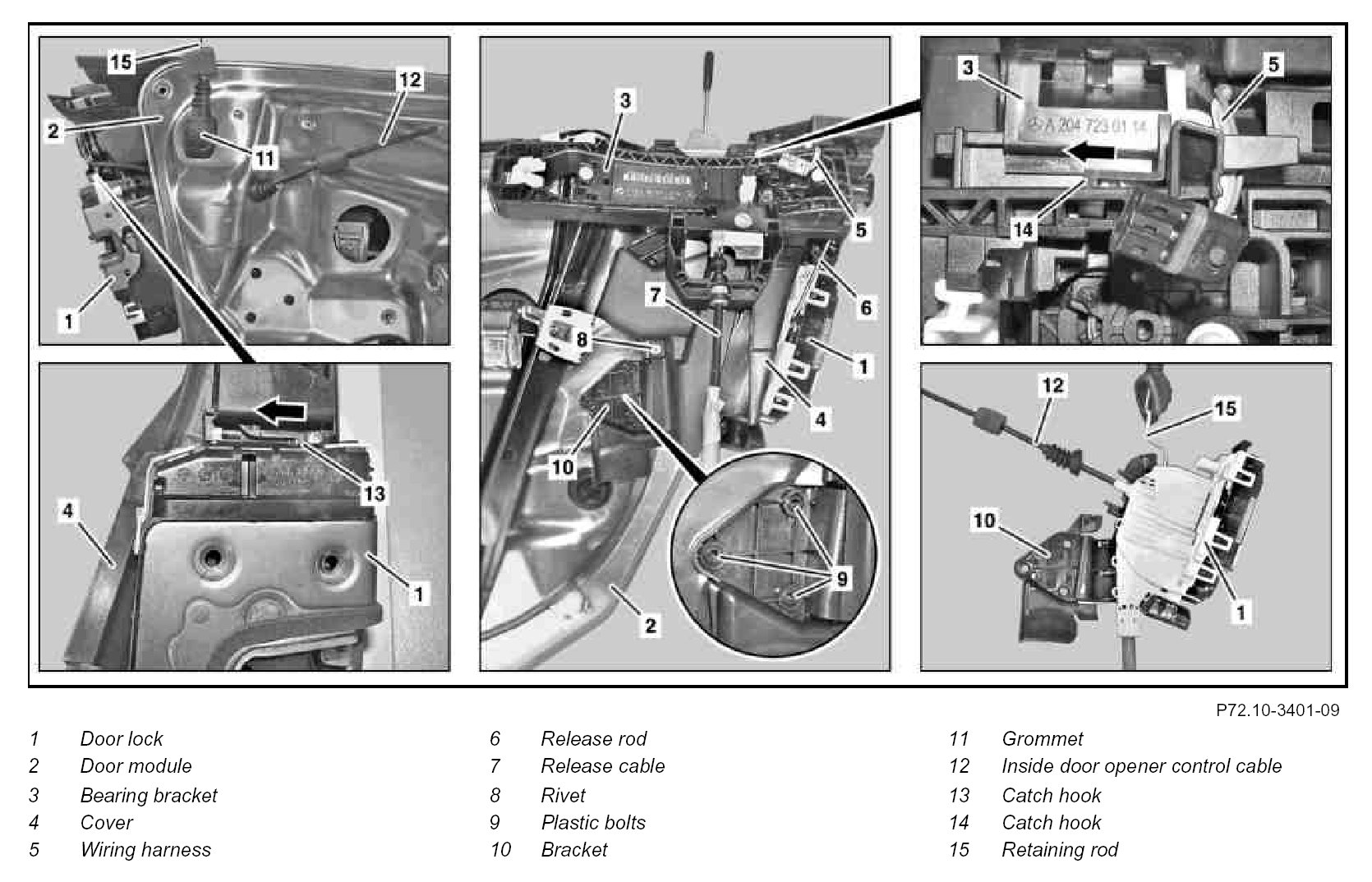

Component Identification:

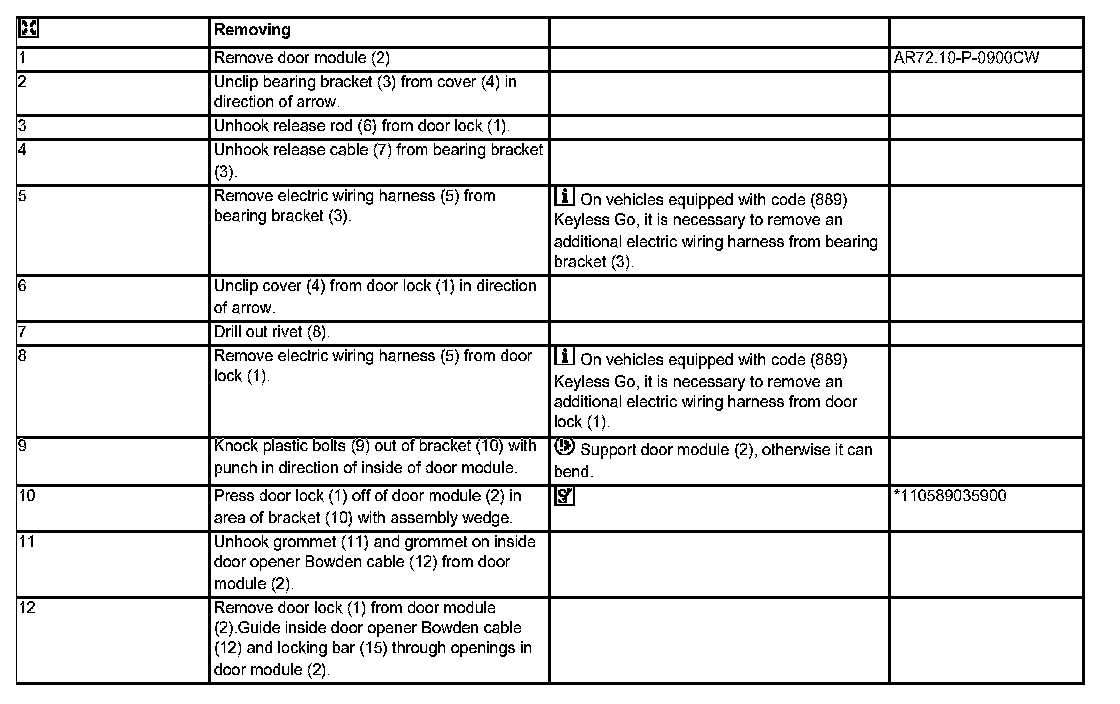

Steps 1 - 12:

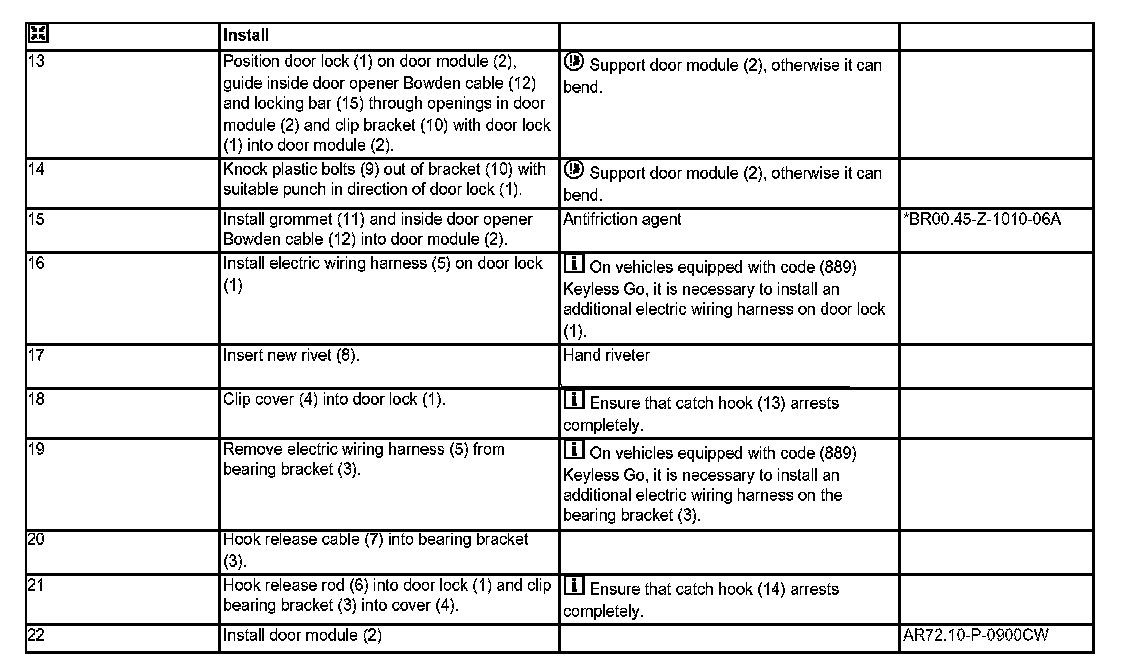

Steps 13 - 22:




Special Tools:

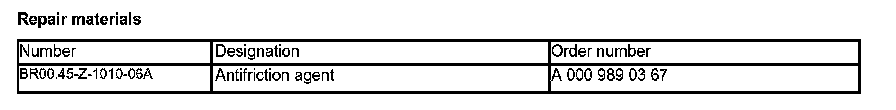

Repair Materials:
