ABS/TCS - Yaw Rate Sensor Fastener Update

Date: October 28, 2009

Order No: S-B-61.10/06

Supercedes:

Group: 61

SUBJECT:
MY-All, Model 171
Retrofitting Threaded Studs to Weld Studs for Turn Rate Sensor on Right-Hand Floor

The replacement part A 171 610 04 60 "right-hand floor" does not have threaded studs for attaching the turn rate sensor. Therefore, threaded studs (M6) have to be retrofitted as weld studs when working on Chassis F 168695 from 04/17/2007 onwards.

A. Applying the Template

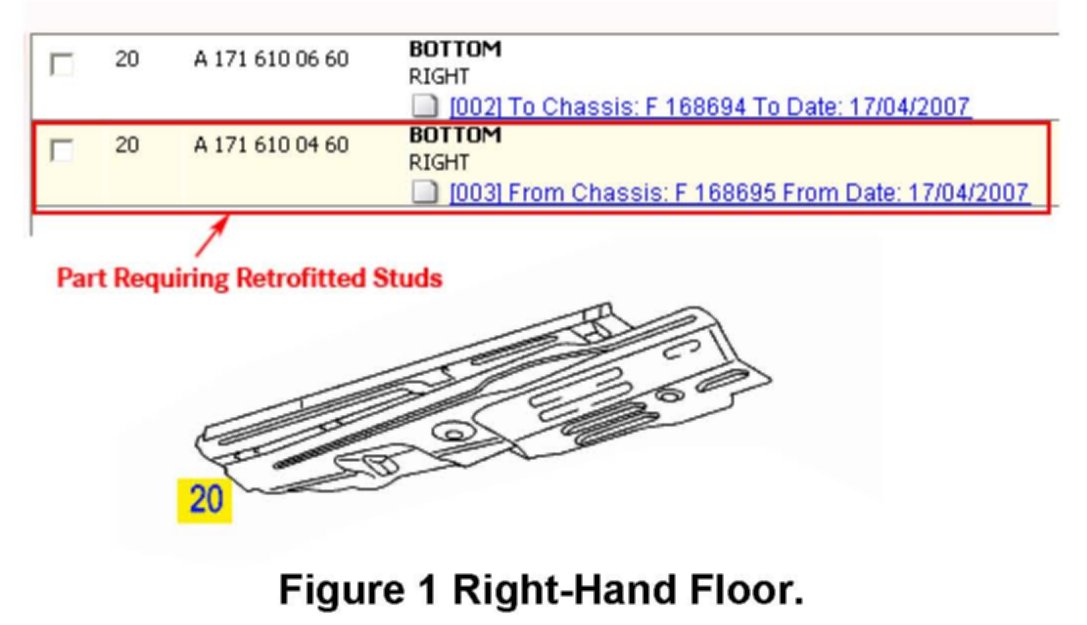

1. Note the two part numbers for right-hand floor. Part A171 610 04 60 replaces Part A 171 610 06 60 when working on vehicles April 17, 2007 to the present. (Part A 171 610 06 60 can only be used on vehicles before production March 2007 (Figure 1)).

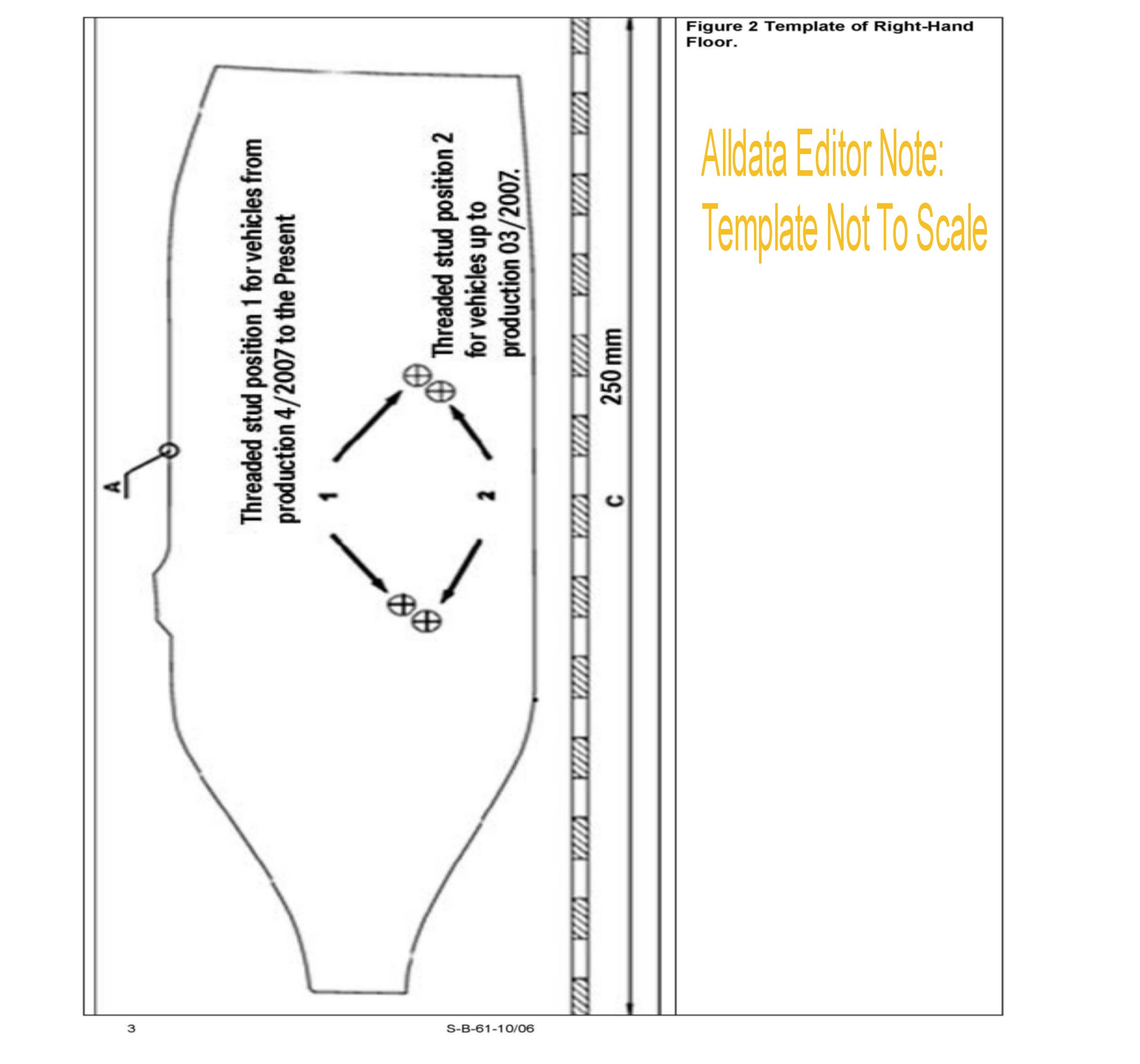

2. Print the template out as is (Figure 2).

3. Cut out the template and attach it to the right-hand floor.

4. Transfer bolt marks (circle with center cross) using position 1 if working on vehicles with F 168695 04/2007 to the present (Figure 2). Only use transfer bolt marks using position 2 if working on vehicles F 168649 to 04/2007 (Figure 2), which do not require retrofitting thread studs to weld studs.

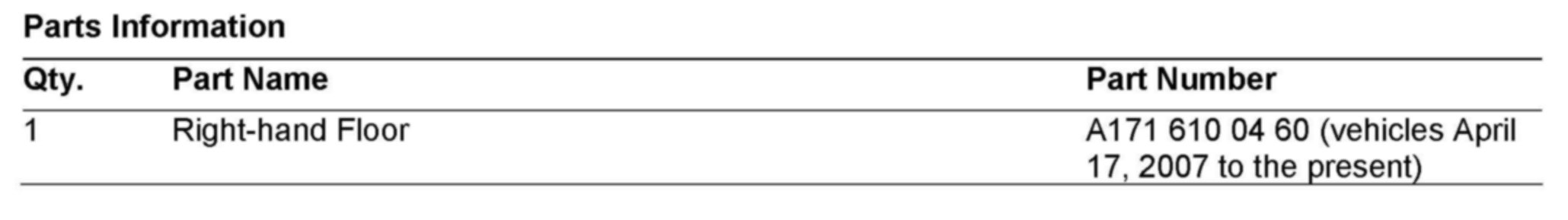

Parts Information
