Power Seat Switch: Service and Repair
AR91.29-P-1700V Remove/install Seat Adjustment Controls
- with CODE (275a) Memory package (driver's seat, steering column, mirrors)
- with CODE (242b) Electrically adjustable front passenger seat with memory

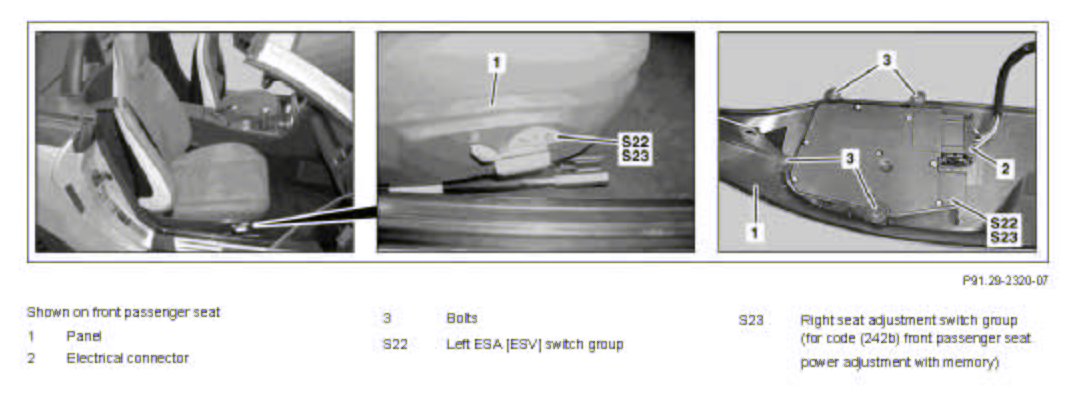

Component Identification:

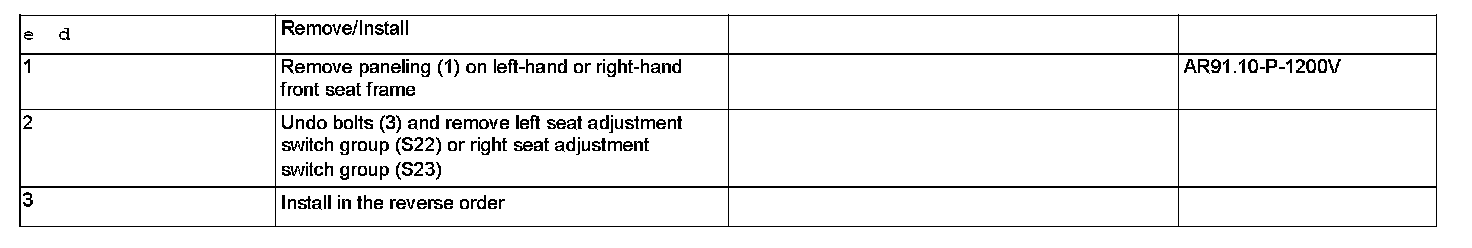

Steps 1 - 3:
