Crankshaft: Service and Repair

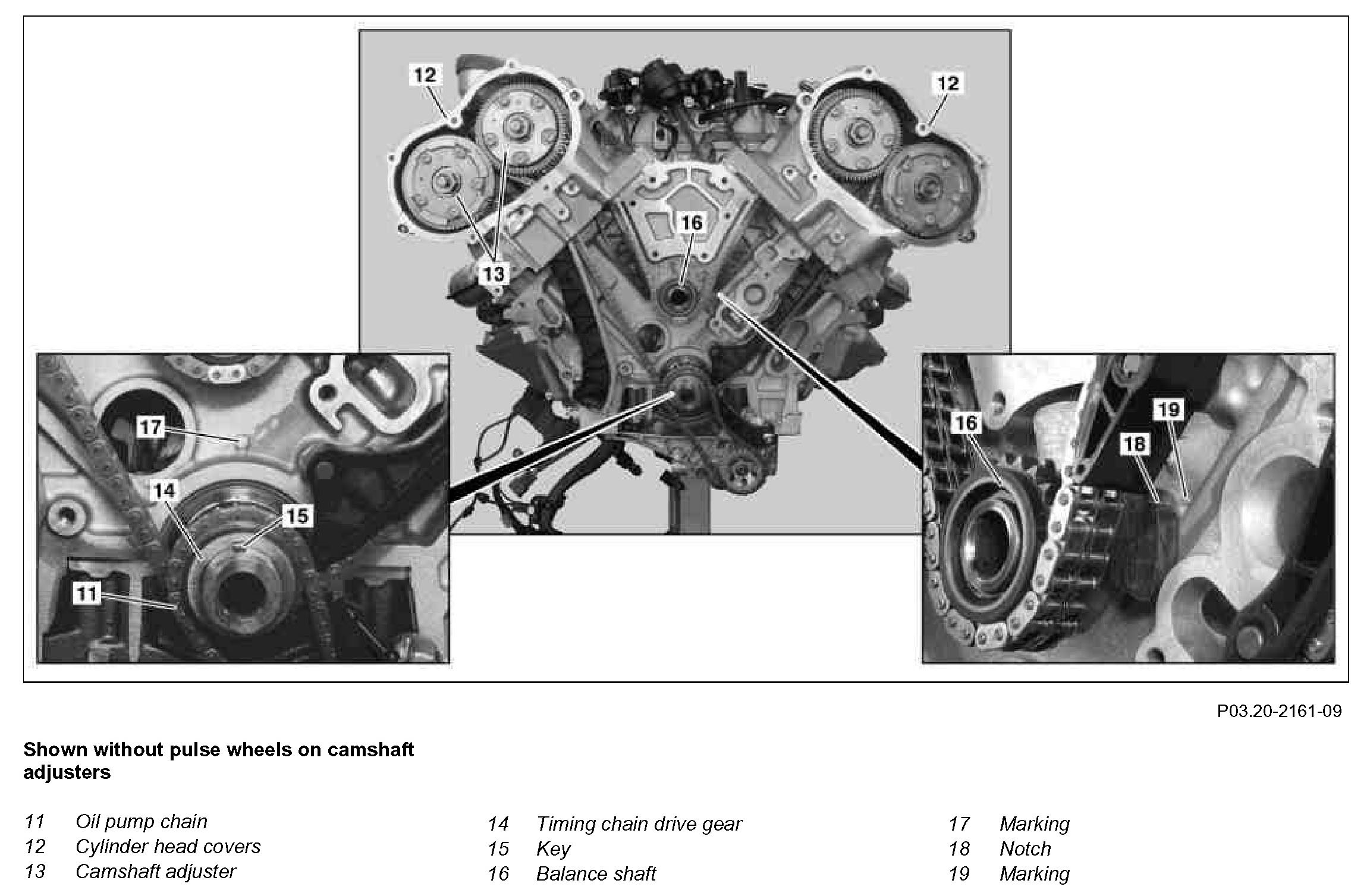

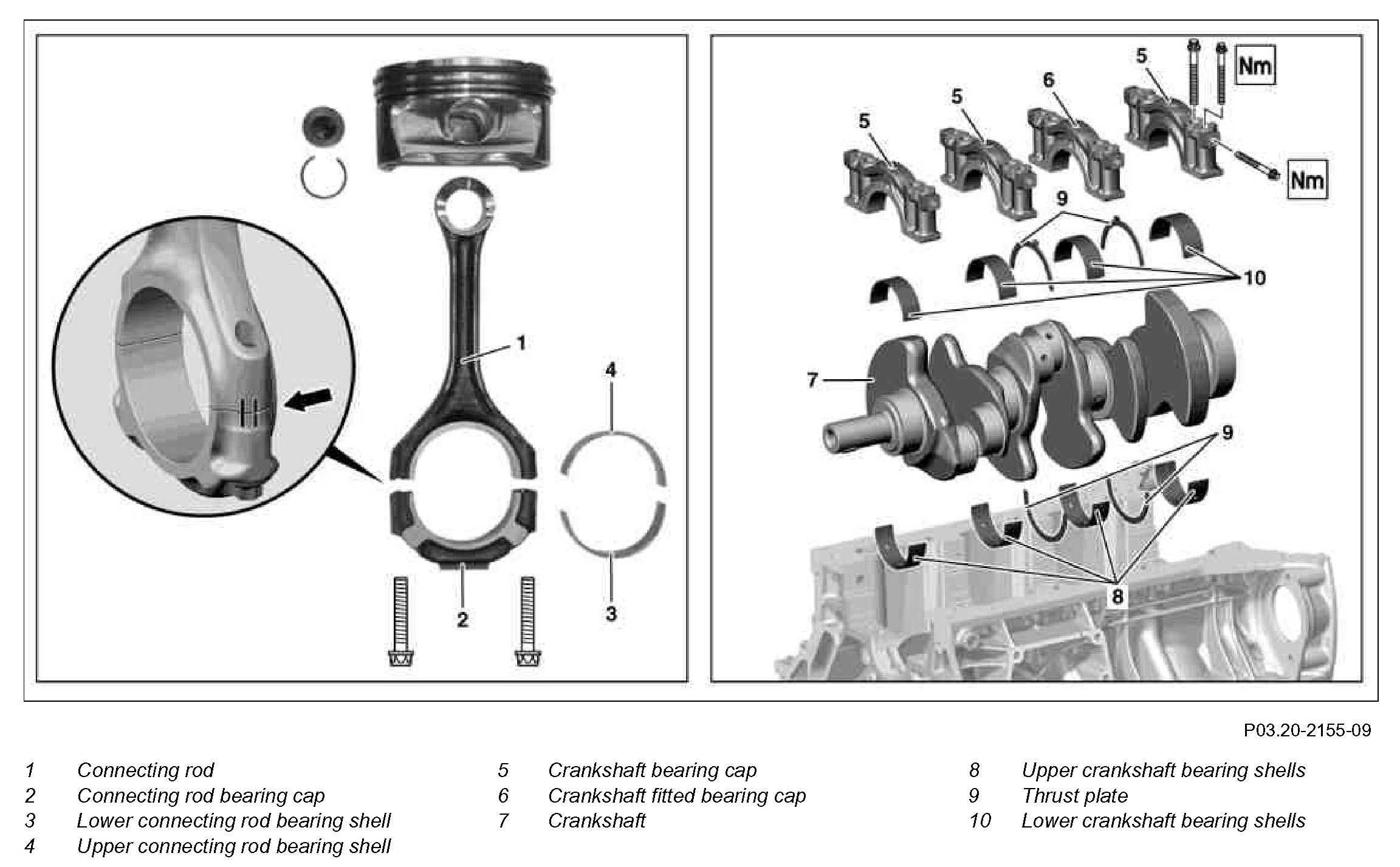

Component Identification:

Component Identification:

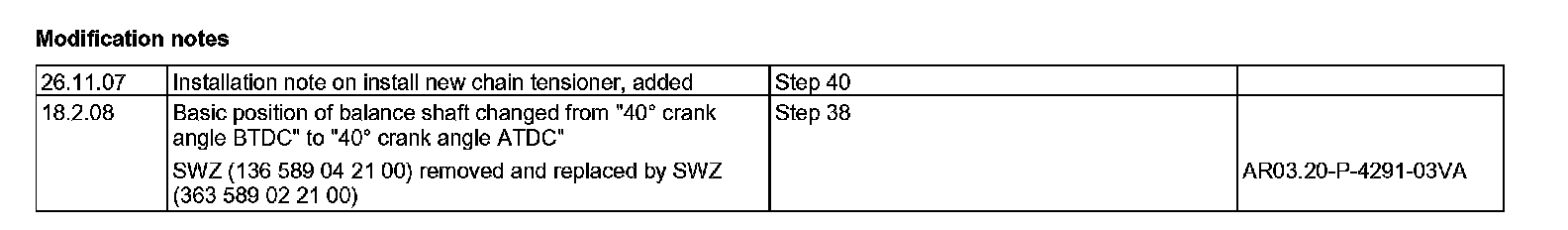

Modification notes:

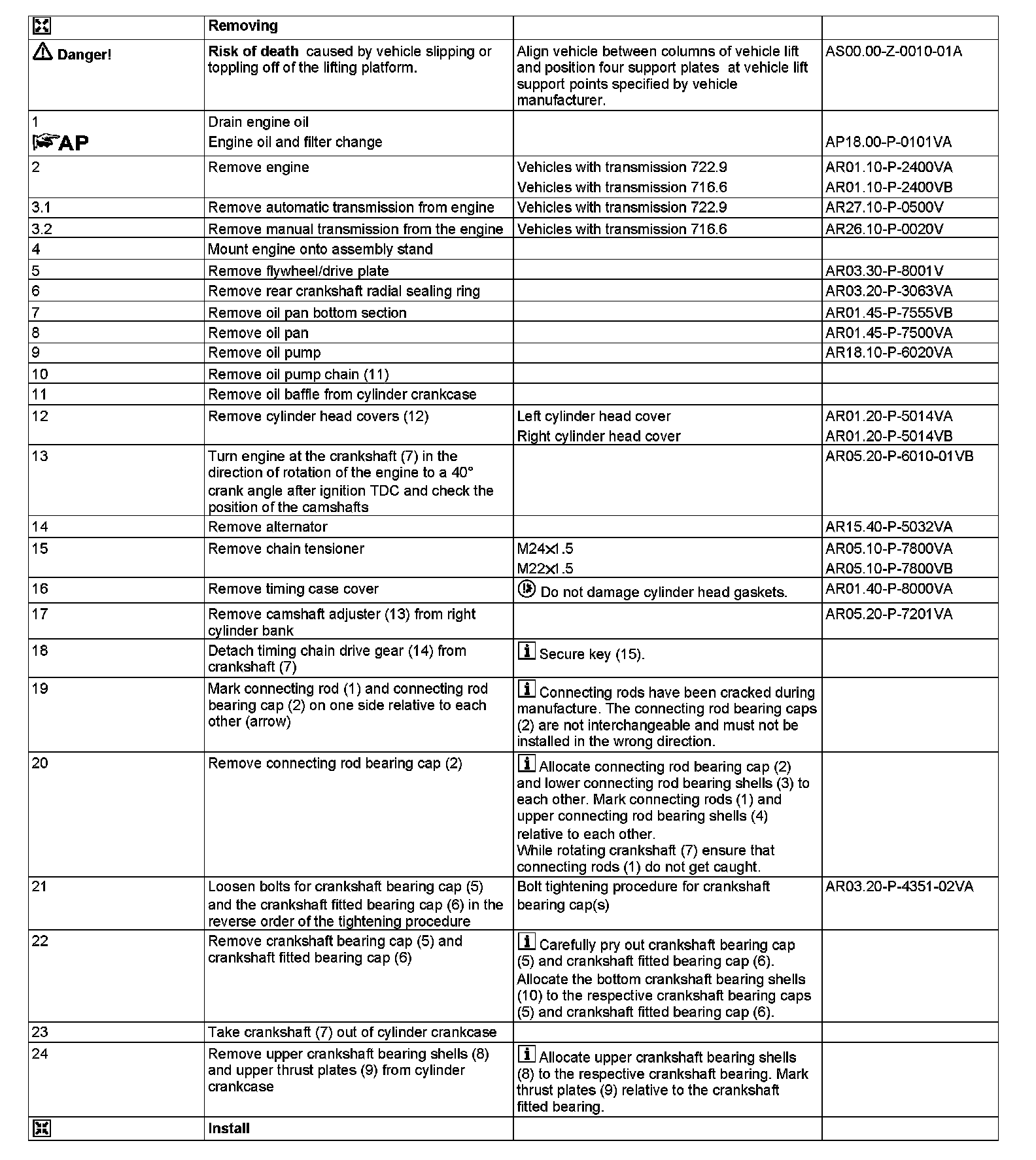

Steps 1-24:

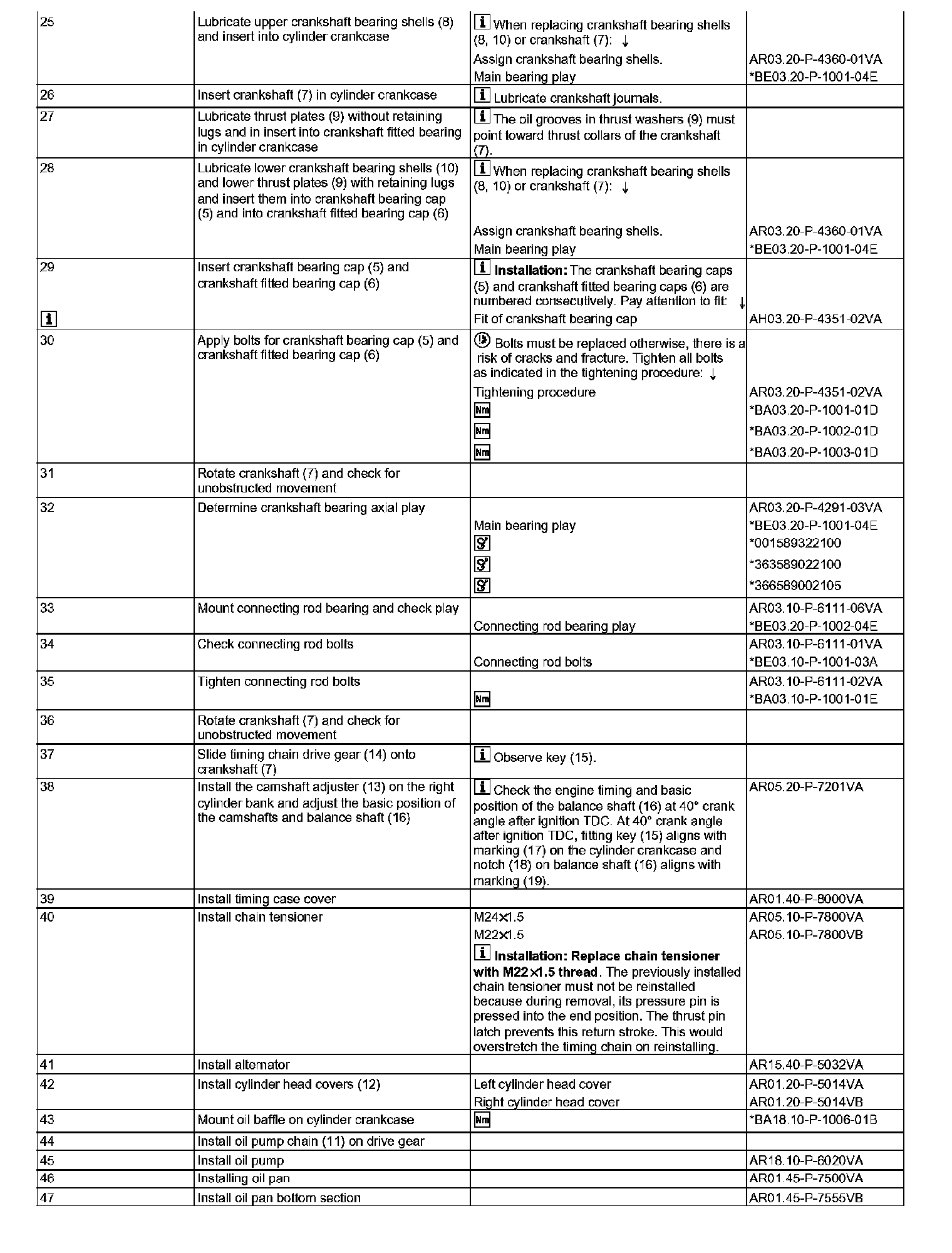

Steps 25-47:

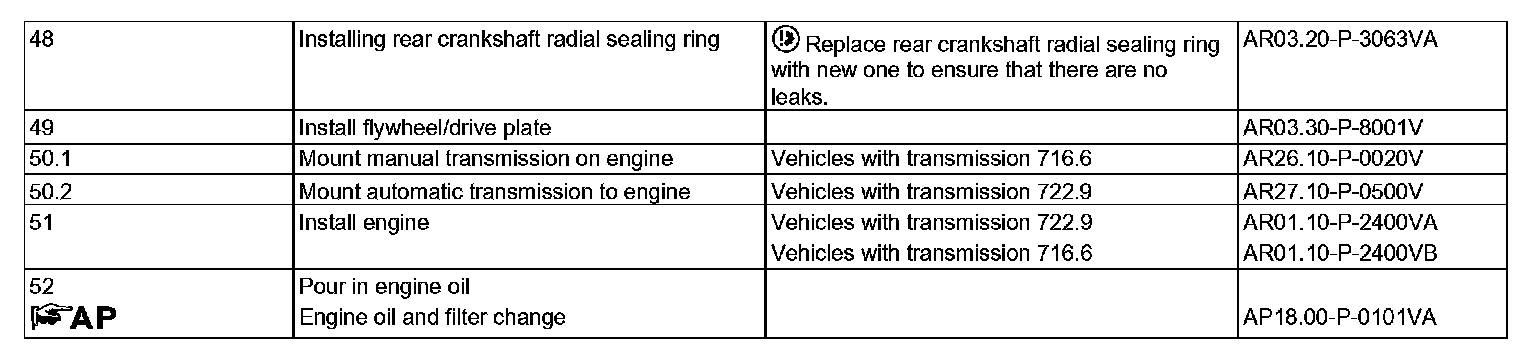

Steps 48-52:

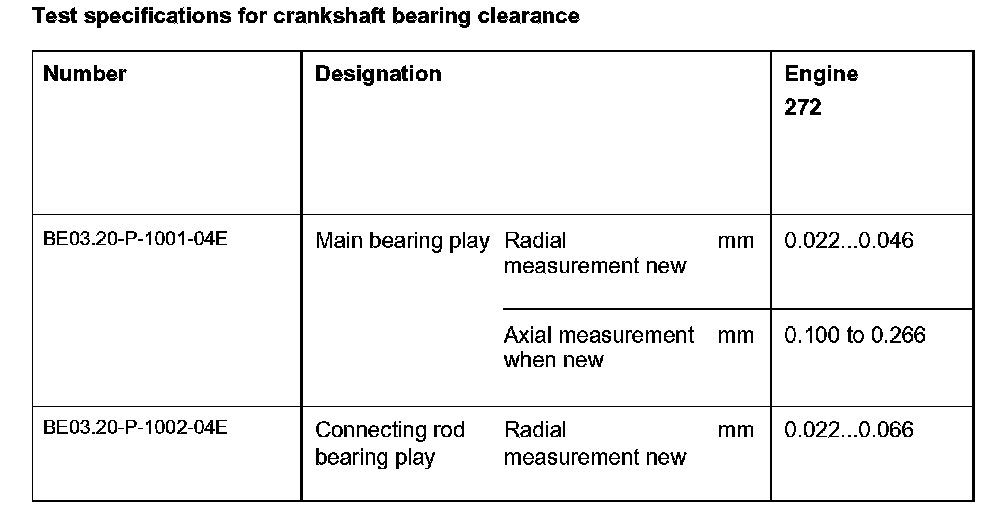

Test specifications for crankshaft bearing clearance:

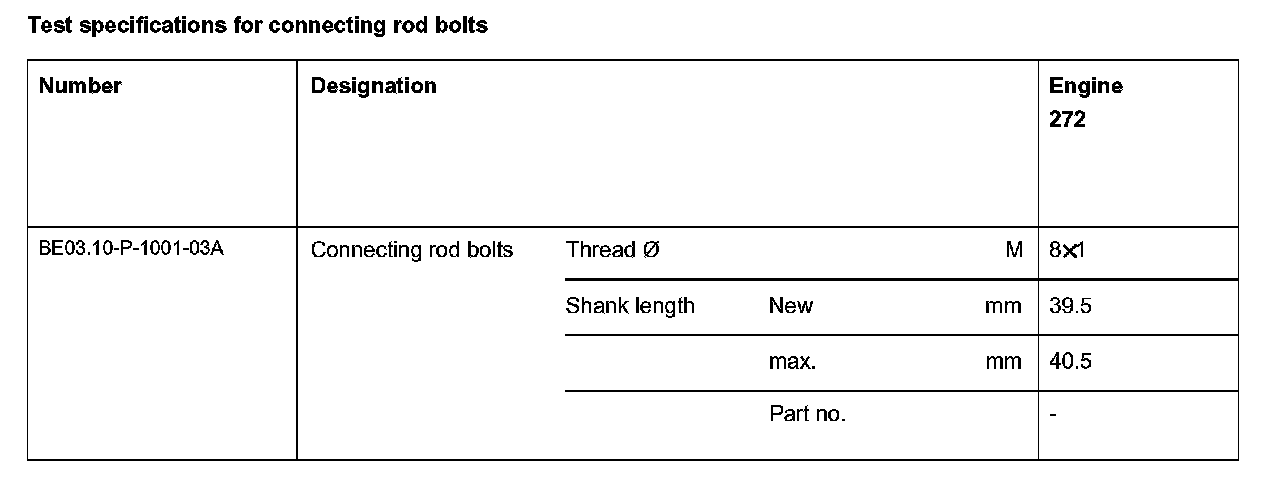

Test specifications for connecting rod bolts:

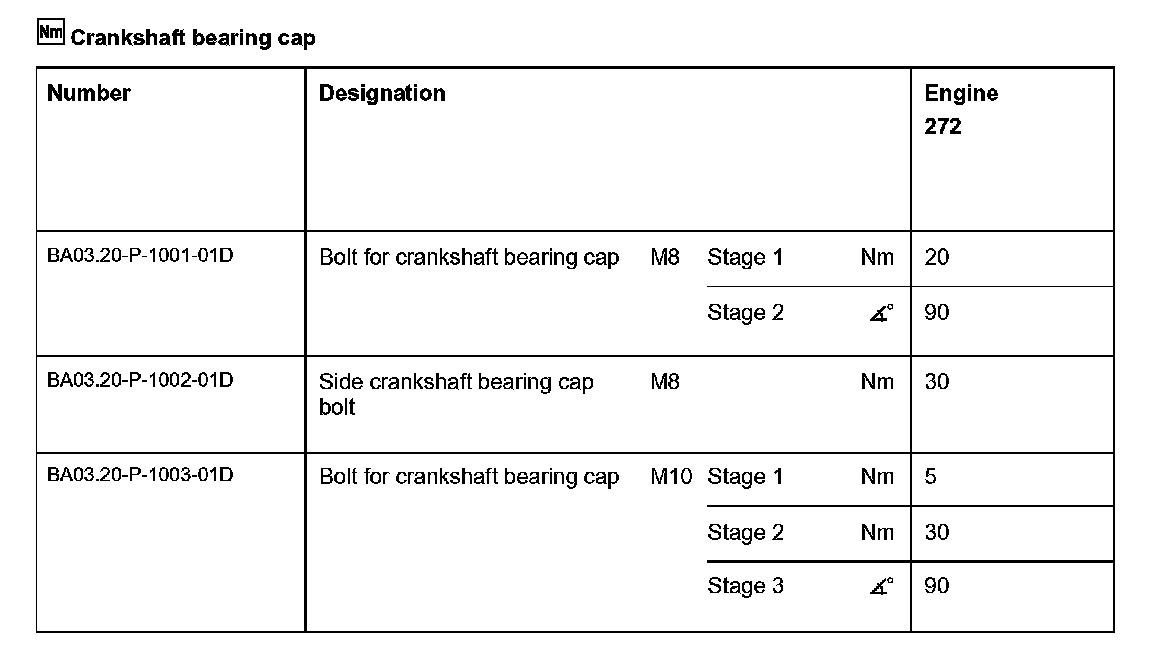

Crankshaft bearing cap:

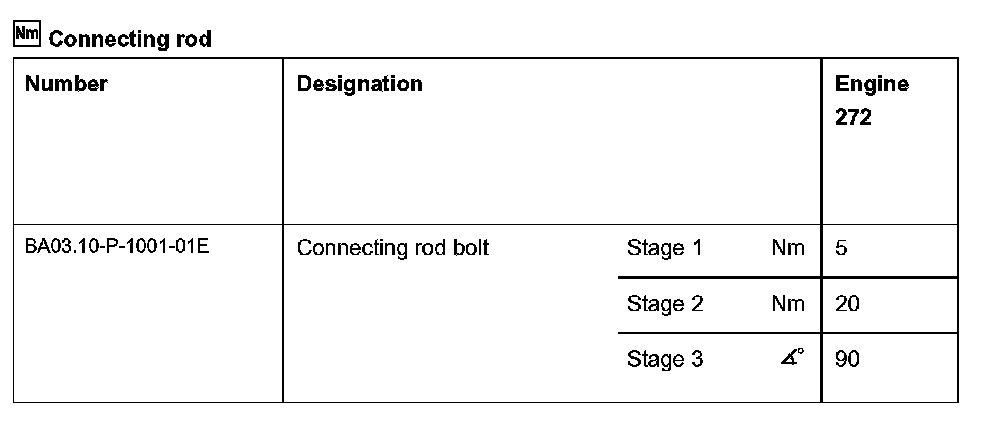

Connecting rod:

Oil pump:

Special Tools:
