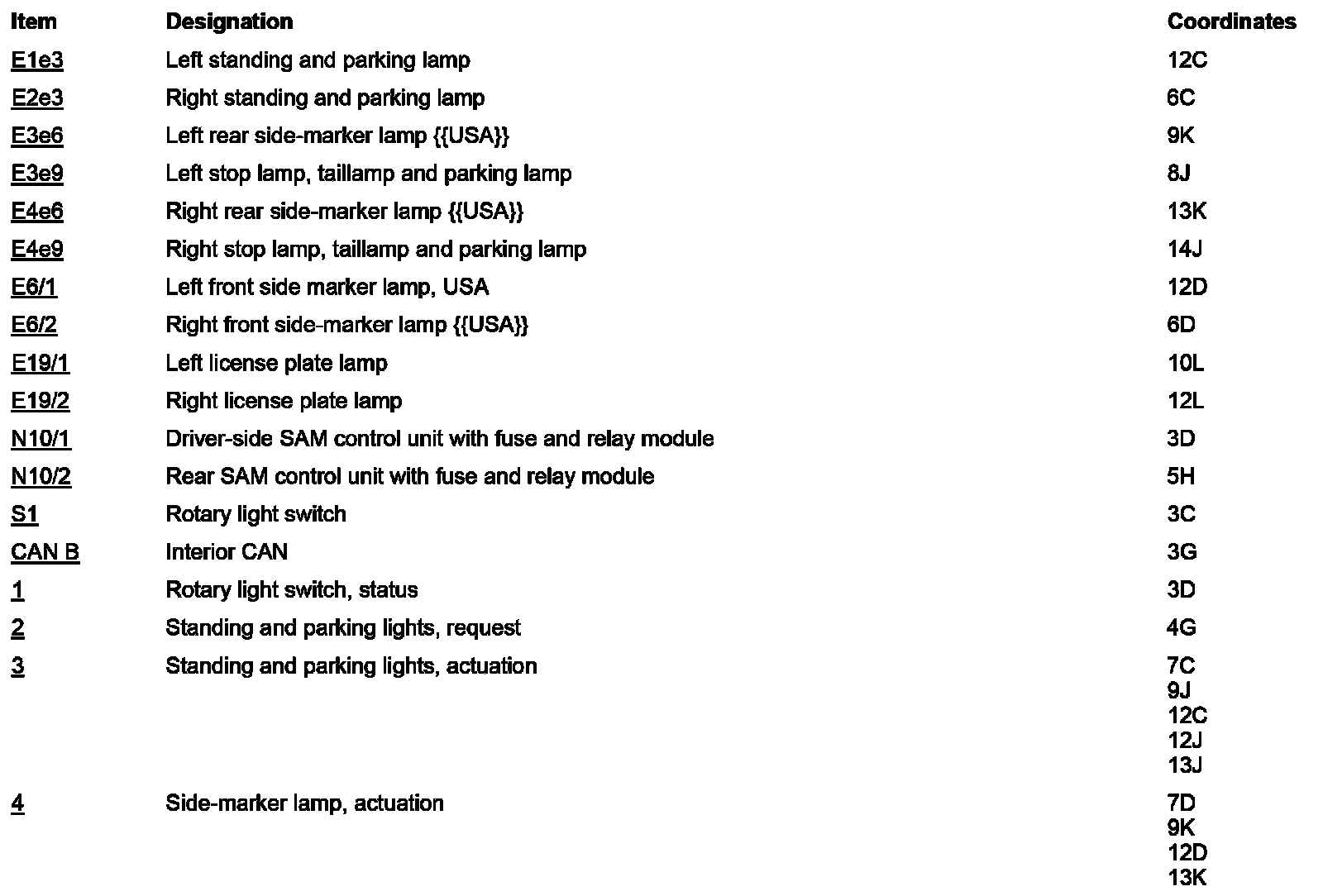

PE82.10-U-2054TA Electrical Function Diagram For Standing Lights/Parking Lights Actuation

PE82.10-U-2054TA Electrical Function Diagram For Standing Lights/Parking Lights Actuation











Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
