AR67.20-P-3001V Remove/Install Rear Window Sealing Frame on Vario Roof



AR67.20-P-3001V Remove/install Rear Window Sealing Frame On Vario Roof

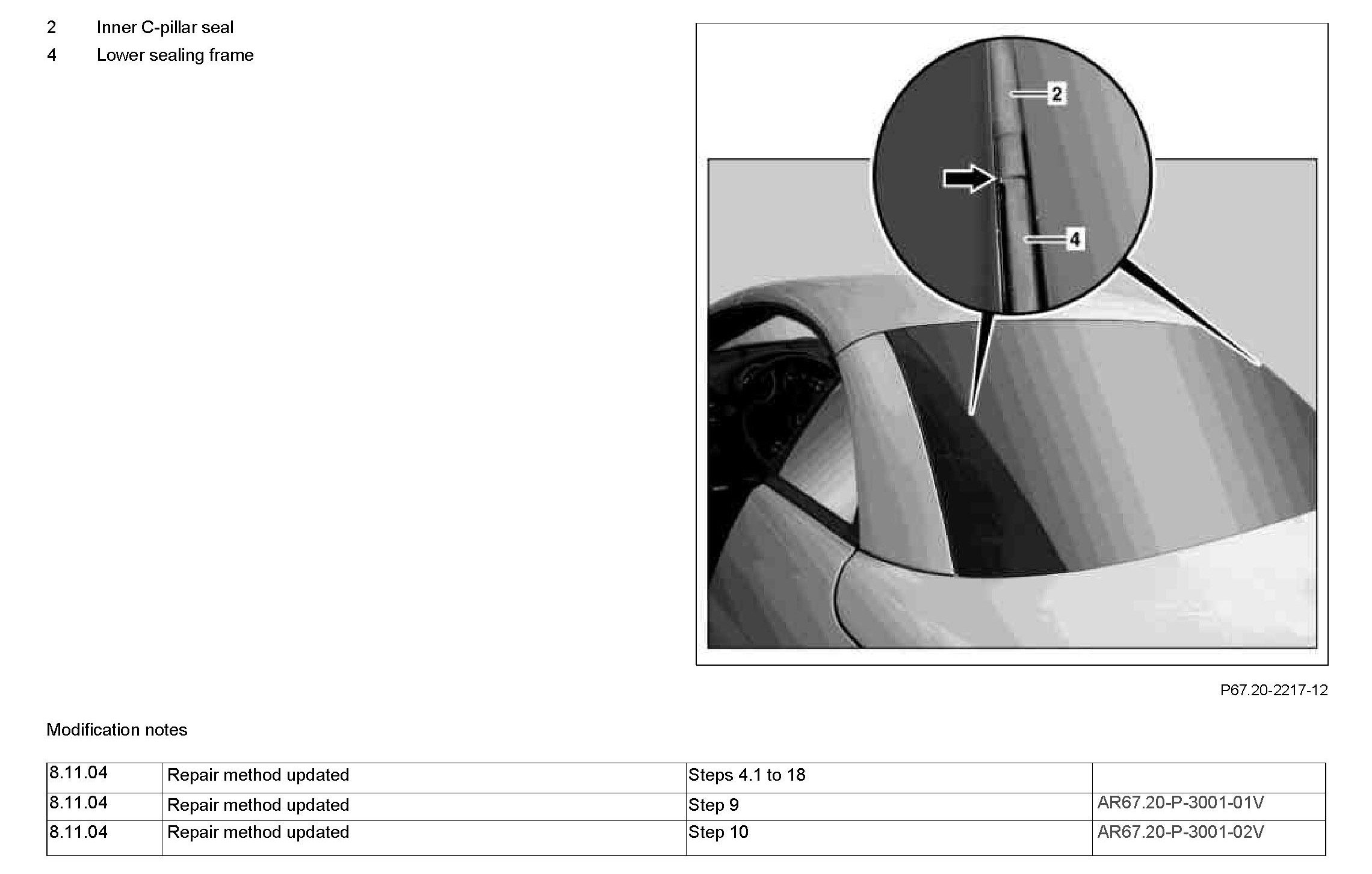

Component Identification:

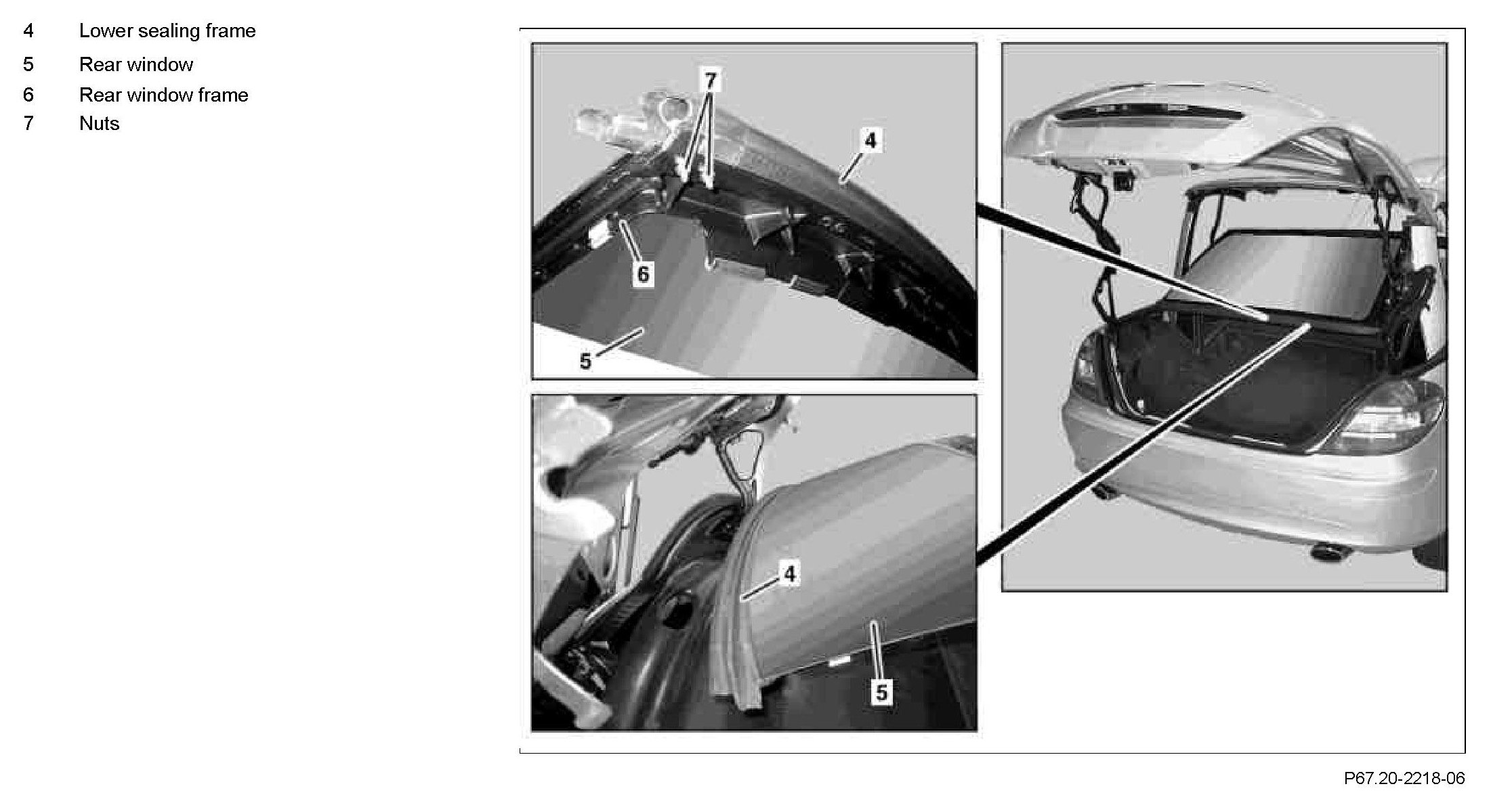

Component Identification:

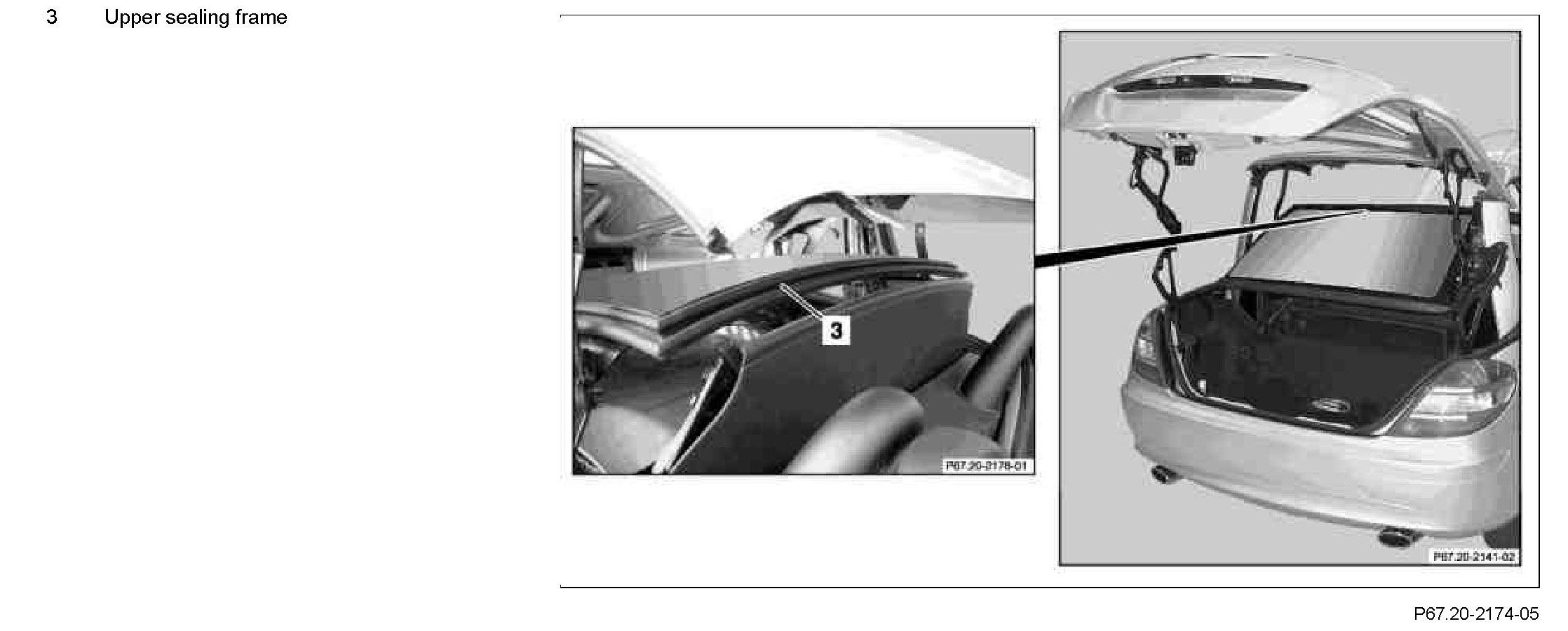

Component Identification:

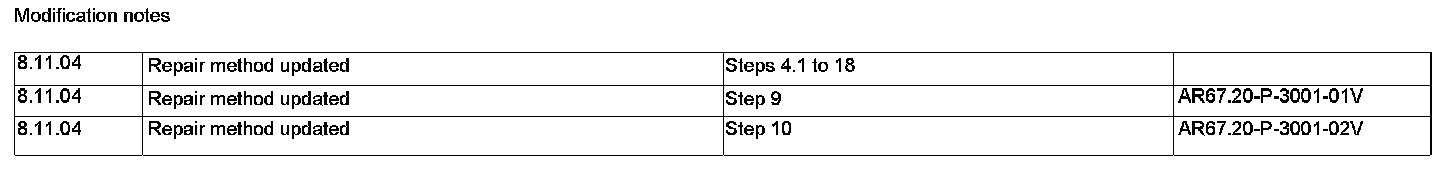

Modification Notes:

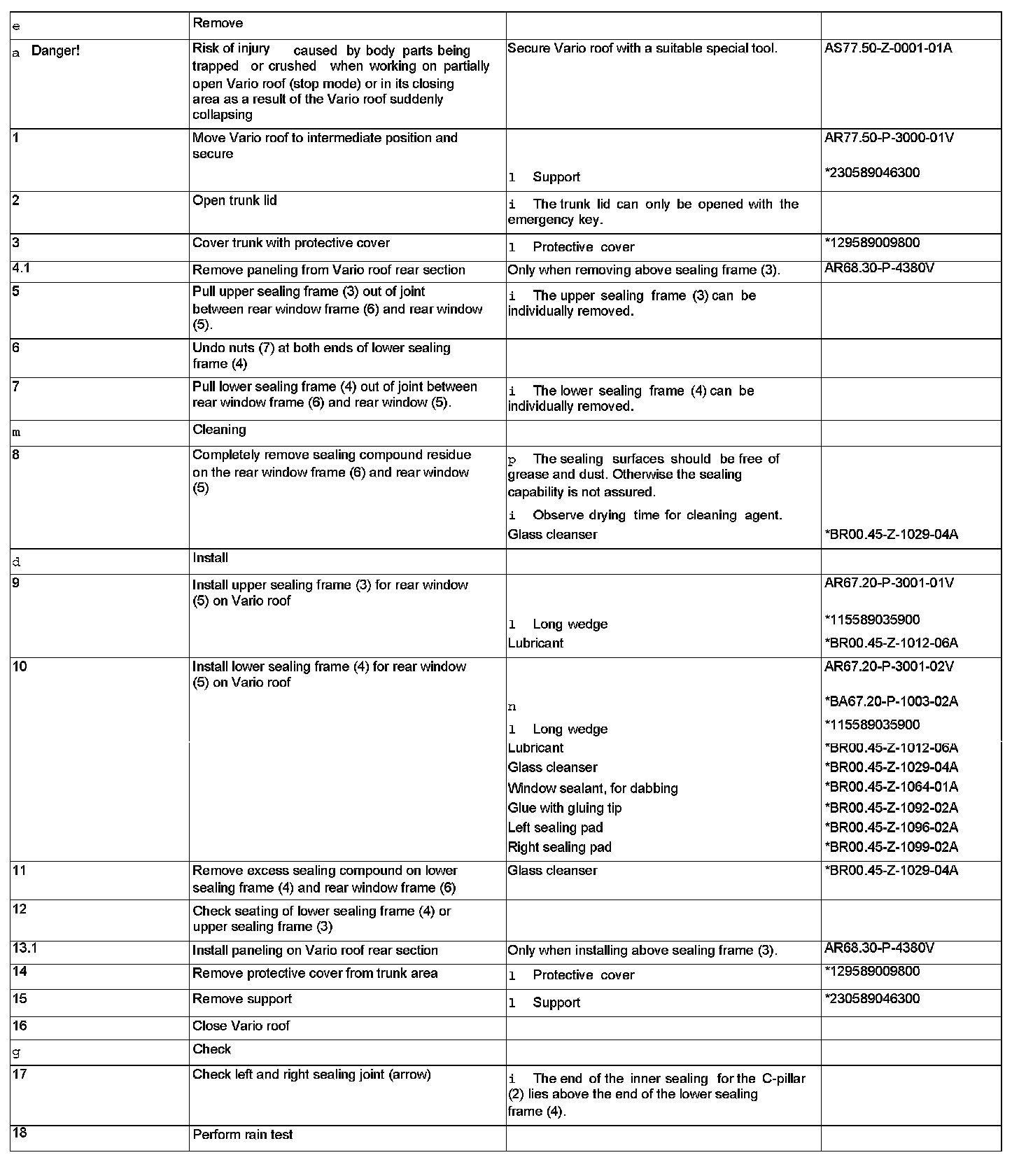

Steps 1 - 18:

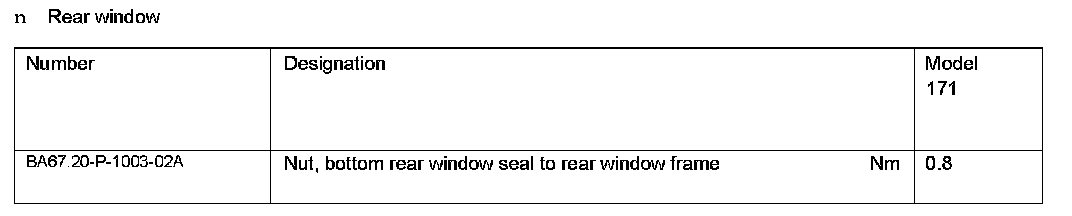

Rear Window:

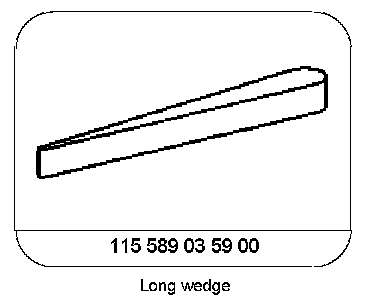

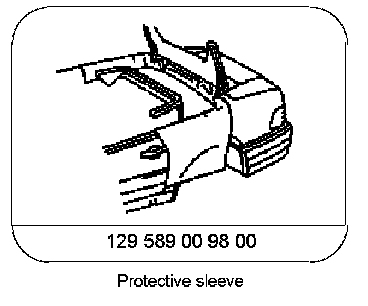

Special Tools:

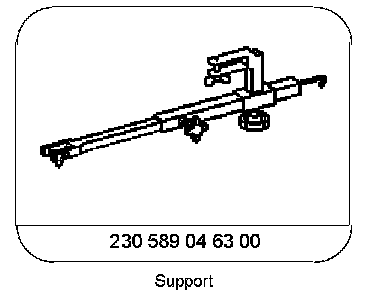

Special Tools:




Special Tools:

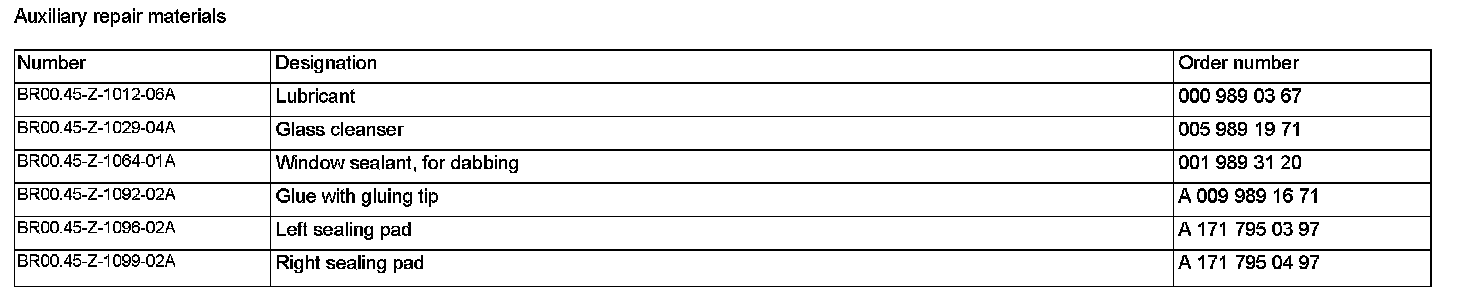

Auxiliary Repair Materials:
