Convertible Top Cable: Service and Repair
AR77.33-P-3471V Remove/install Bowden Cables For Lock At C-pillar

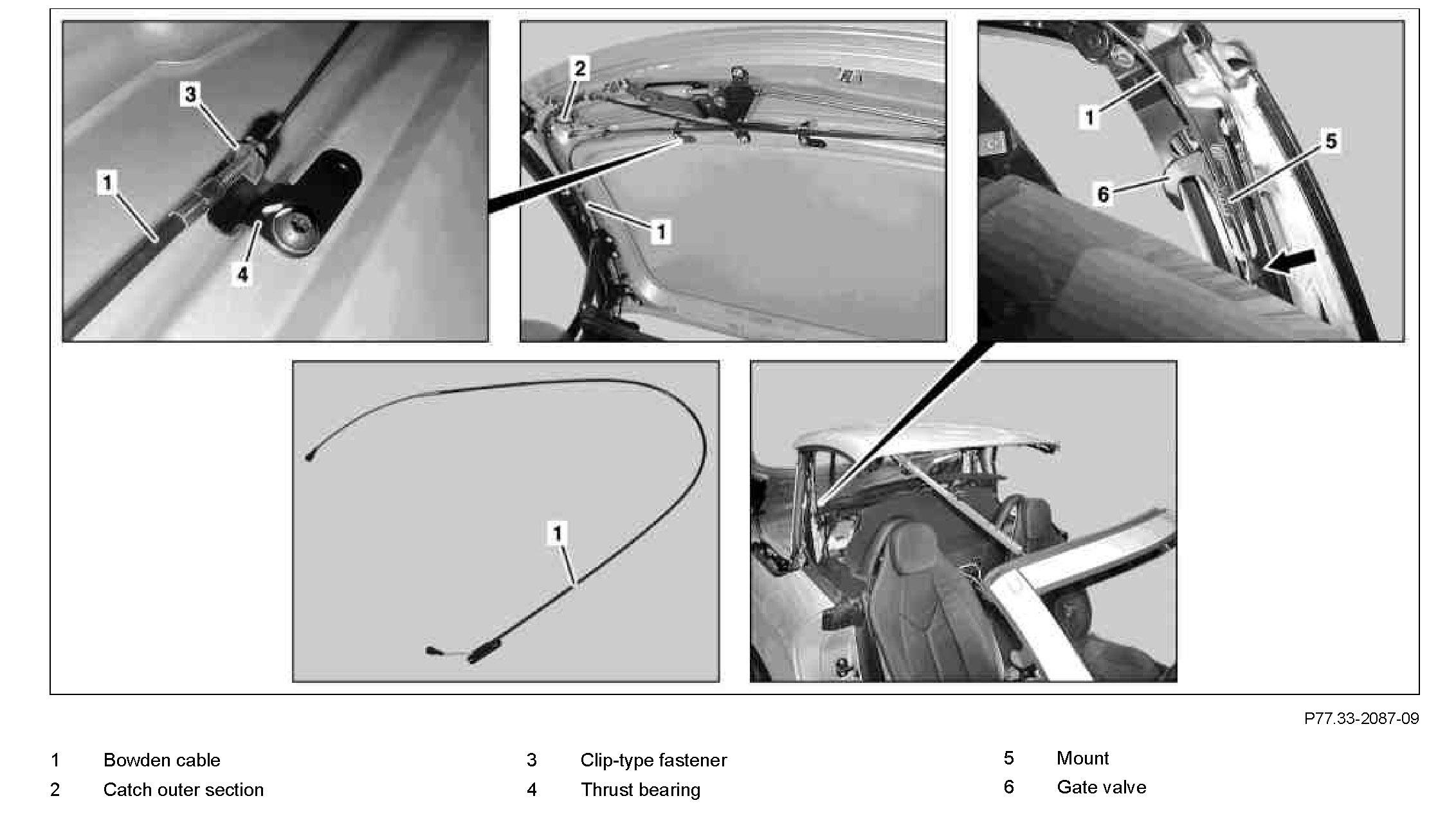

Component Identification:

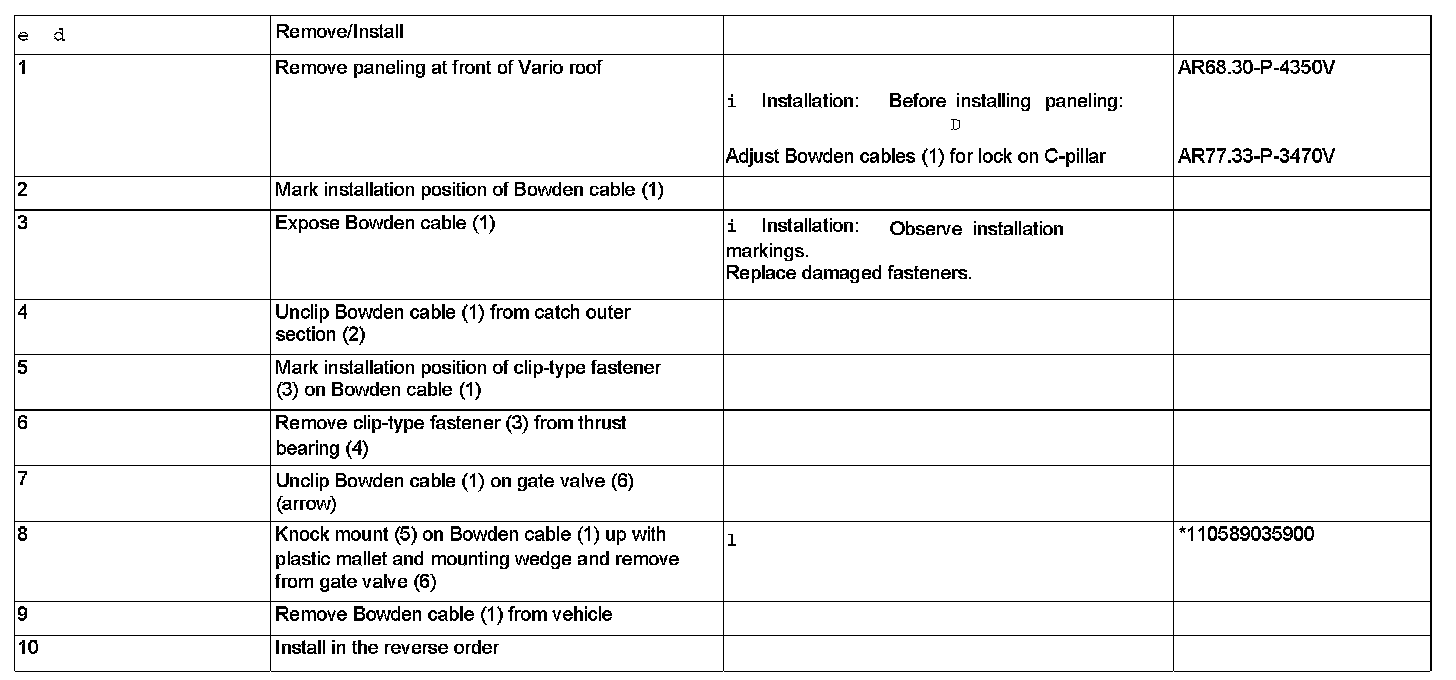

Steps 1 - 10:

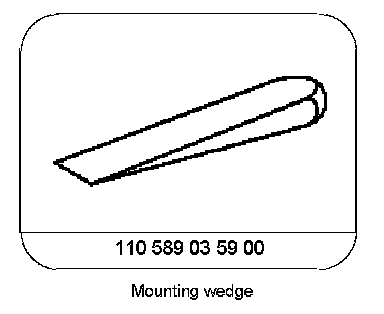

Special Tools:
