Transmission 722.9
AR27.10-P-0502RMG Remove/install automatic transmission
- with TRANSMISSION 722.93

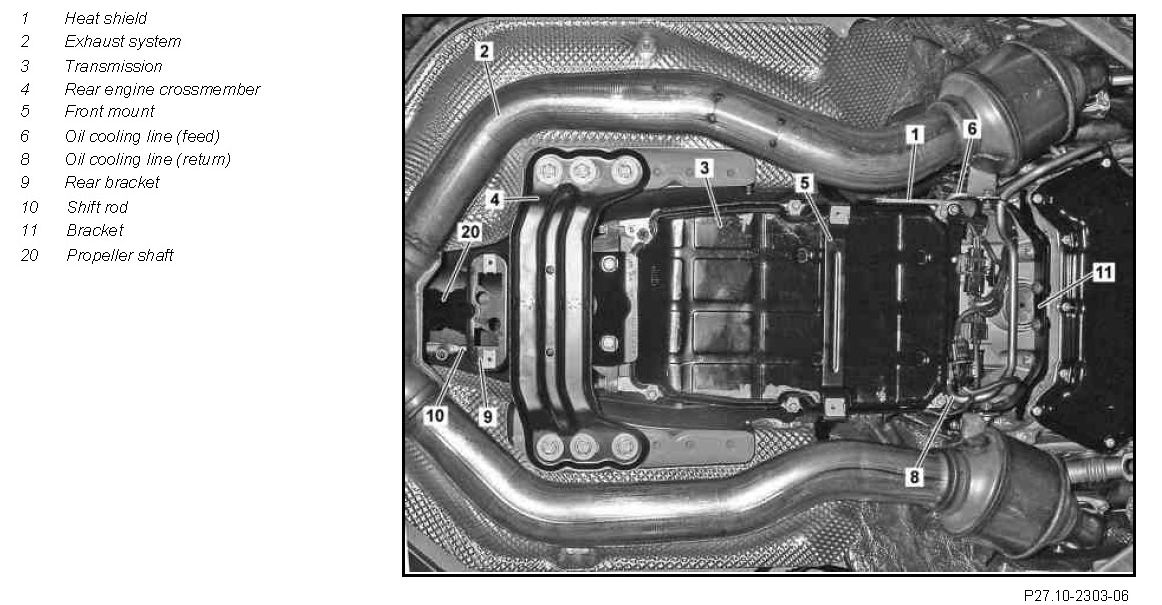

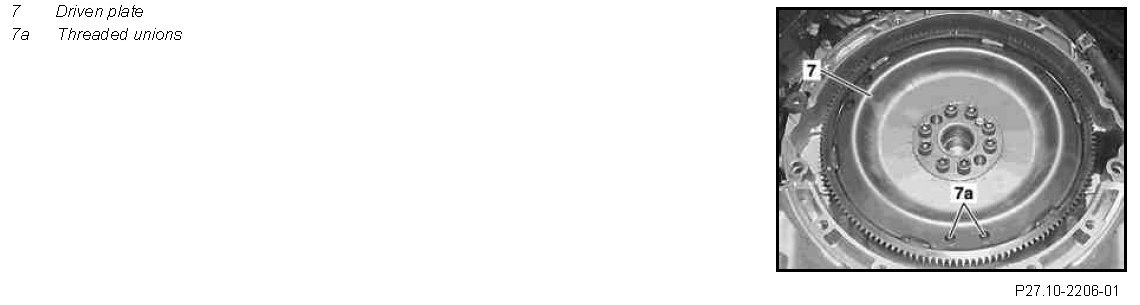

Component Identification:

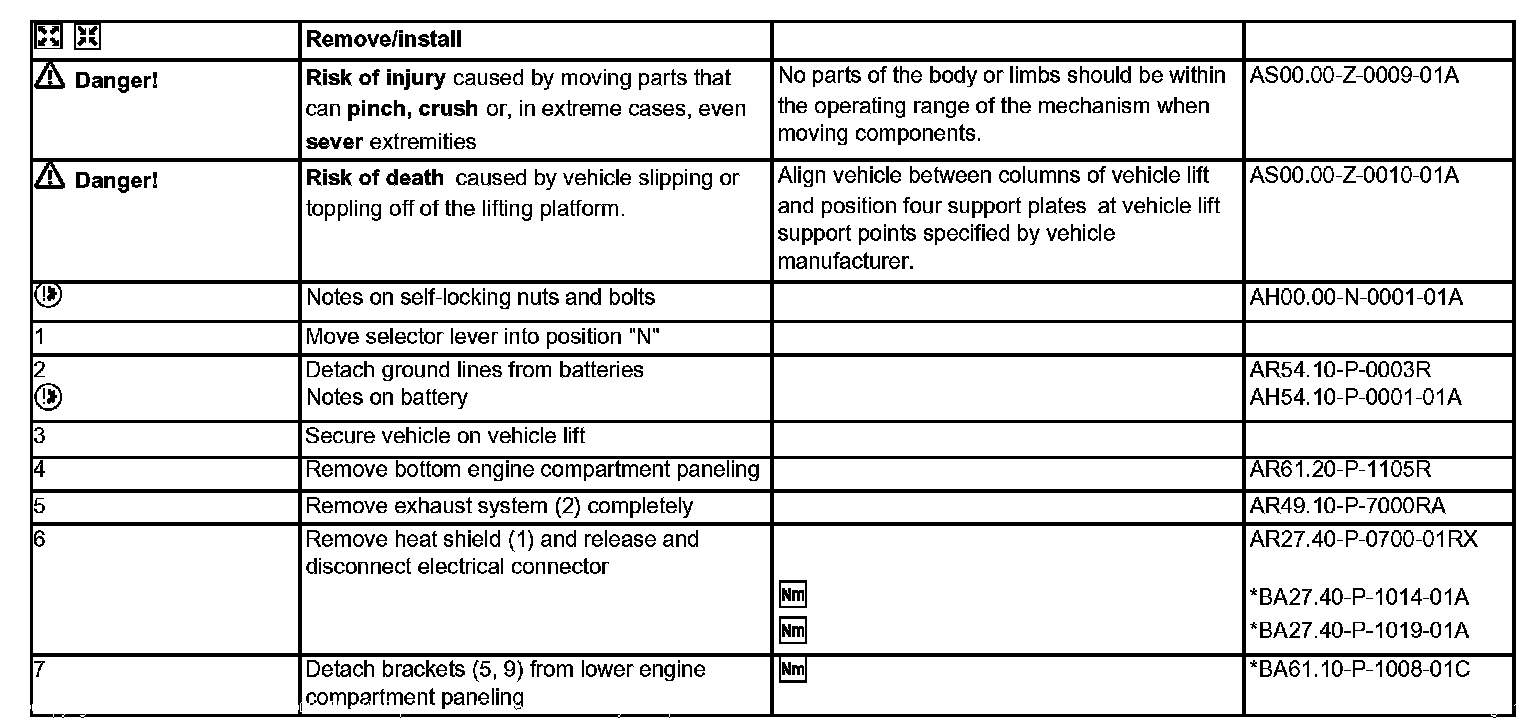

Remove/install Steps 1-7:

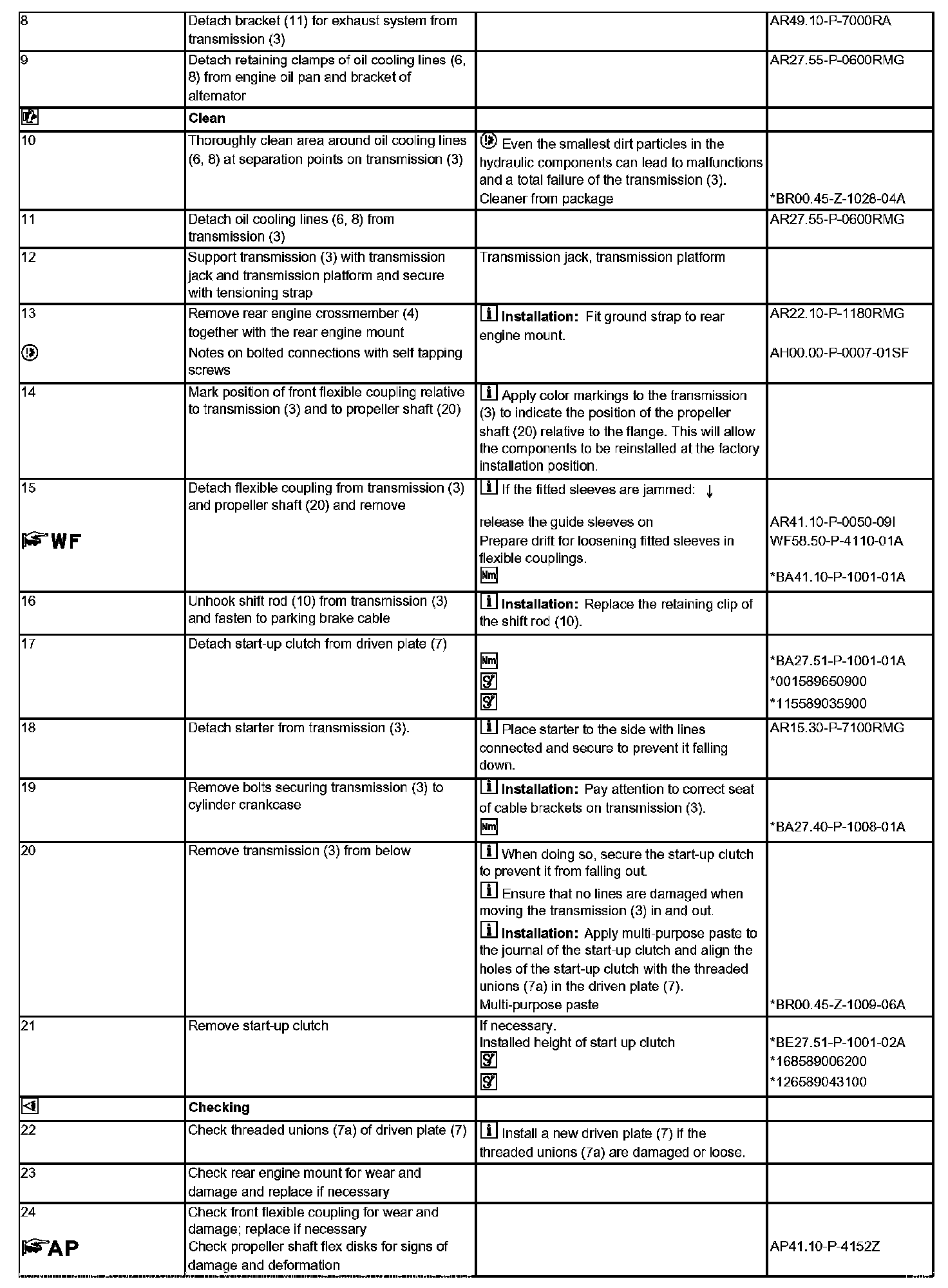

Remove/install Steps 8-24:

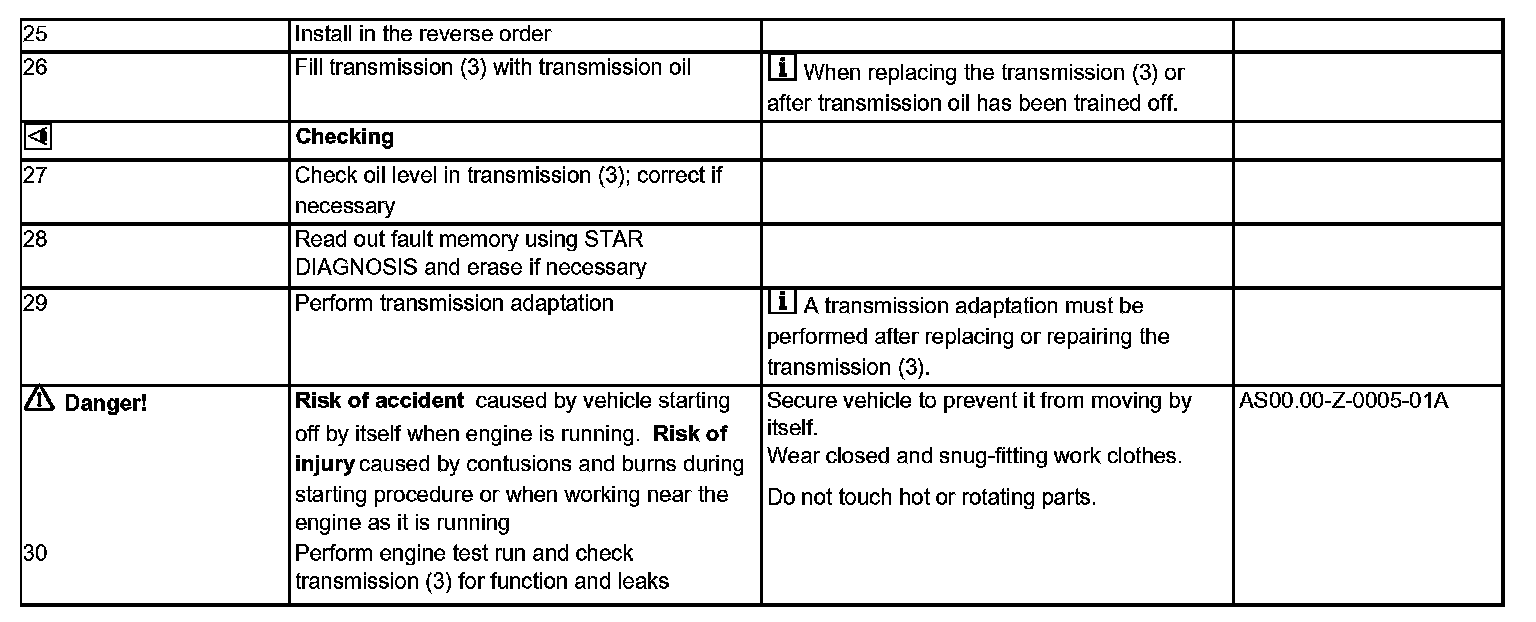

Remove/install Steps 25-30:

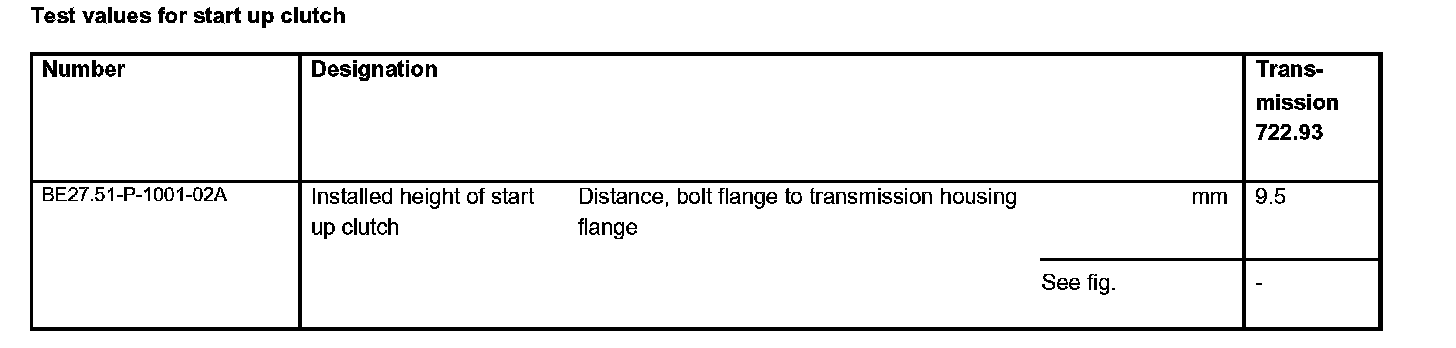

Test values for start up clutch:

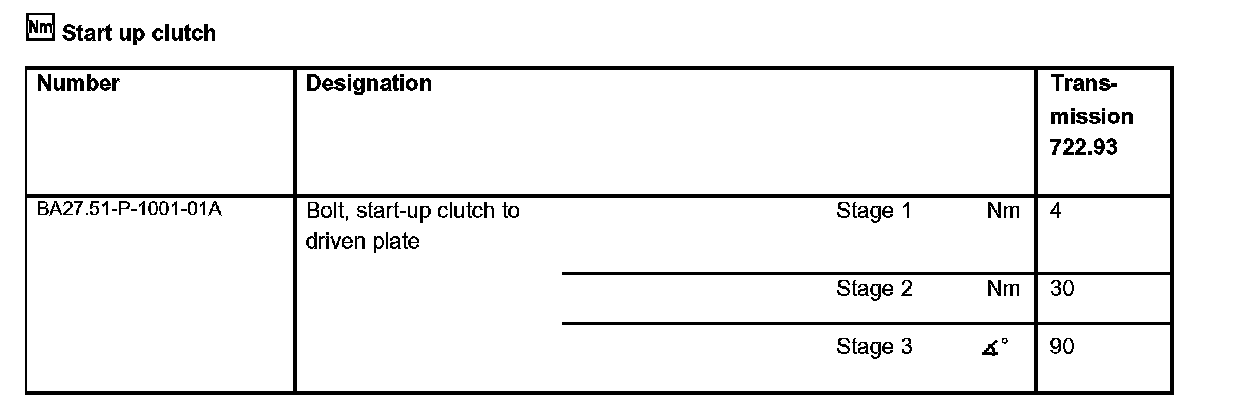

Start up clutch:

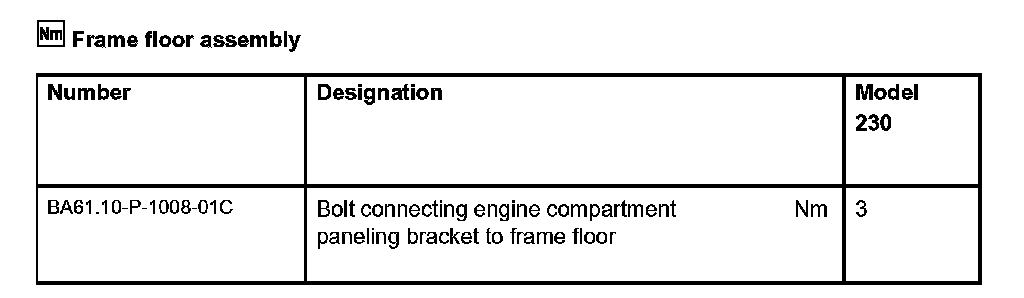

Frame floor assembly:
Propeller shaft:

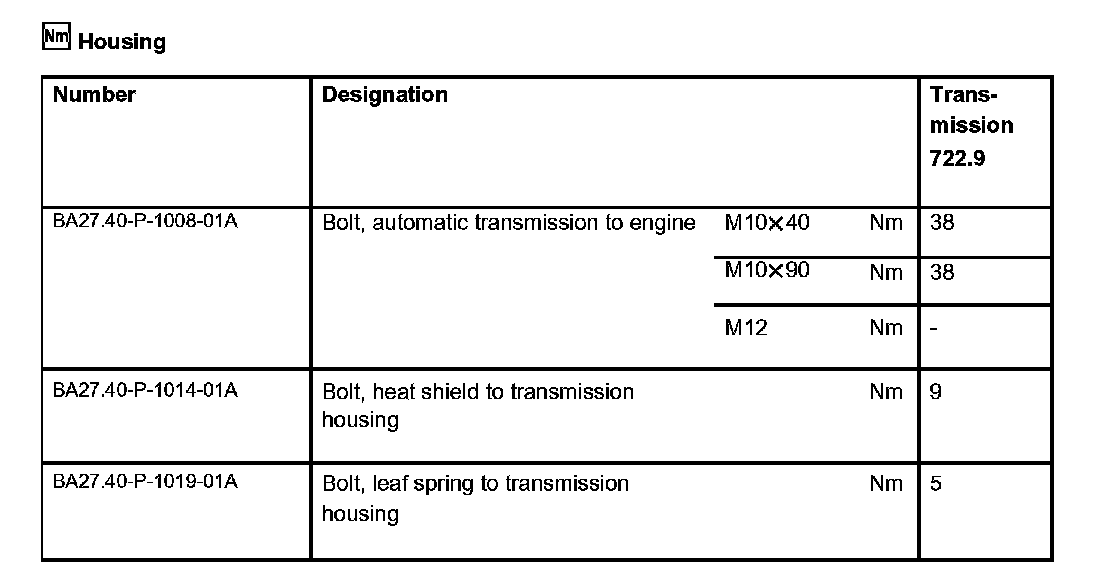

Housing:
Special Tools:
Repair materials:
