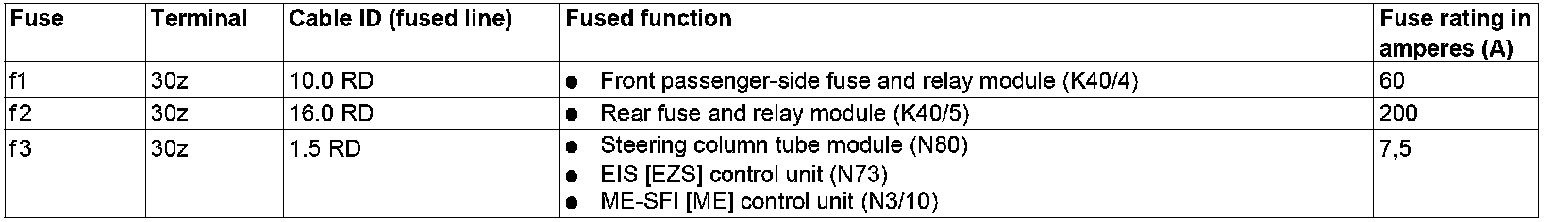

GF54.15-P-1256-08RI Fuse Assignment of Rear Prefuse Box
GF54.15-P-1256-08RI Fuse Assignment Of Rear Prefuse Box
- except CODE (P99) Special model "AMG Black Series"
- as of model year 09

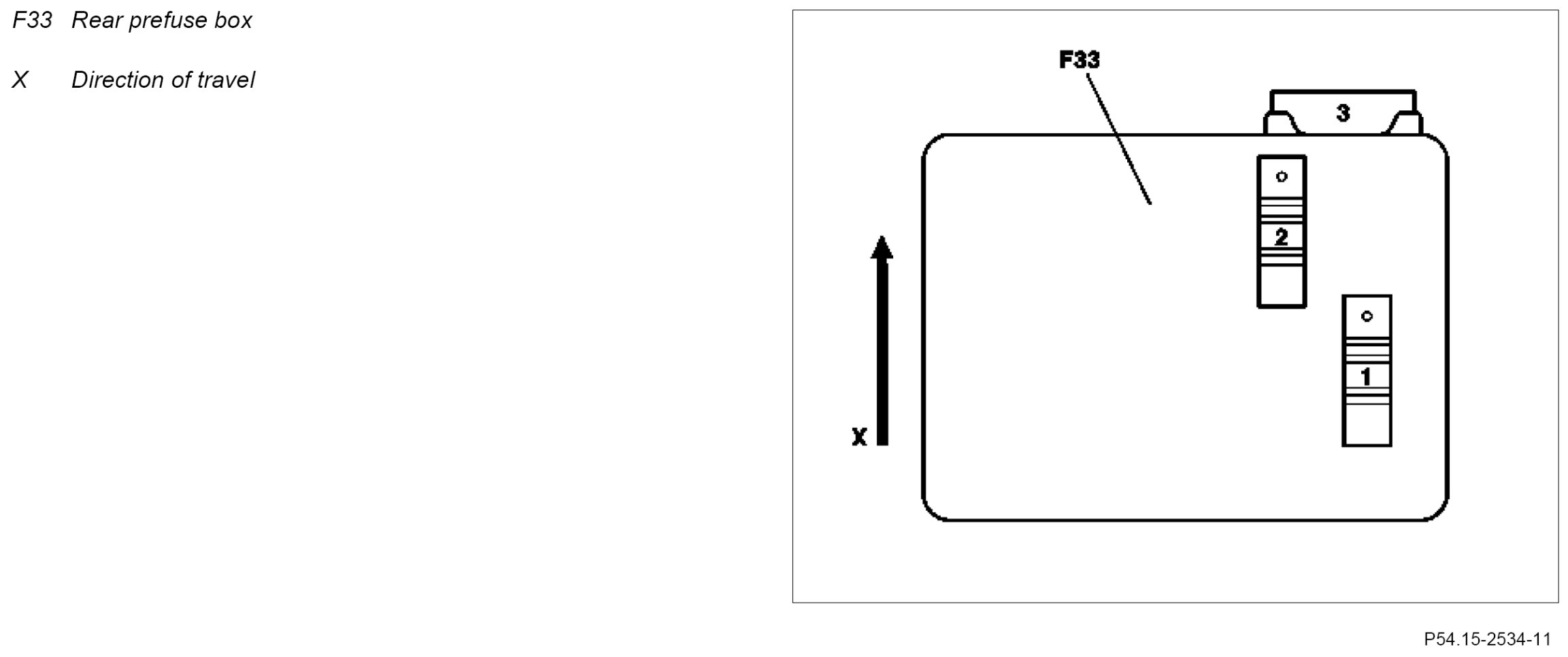

Component Identification:
GF54.15-P-1256-08RI Fuse Assignment Of Rear Prefuse Box
- except CODE (P99) Special model "AMG Black Series"
- as of model year 09
