GF54.15-P-1256-02RI Fuse Assignment of Fuse and Relay Box In Right Engine Compartment



GF54.15-P-1256-02RI Fuse Assignment Of Fuse And Relay Box In Right Engine Compartment
- except CODE (P99) Special model "AMG Black Series"
- as of model year 09

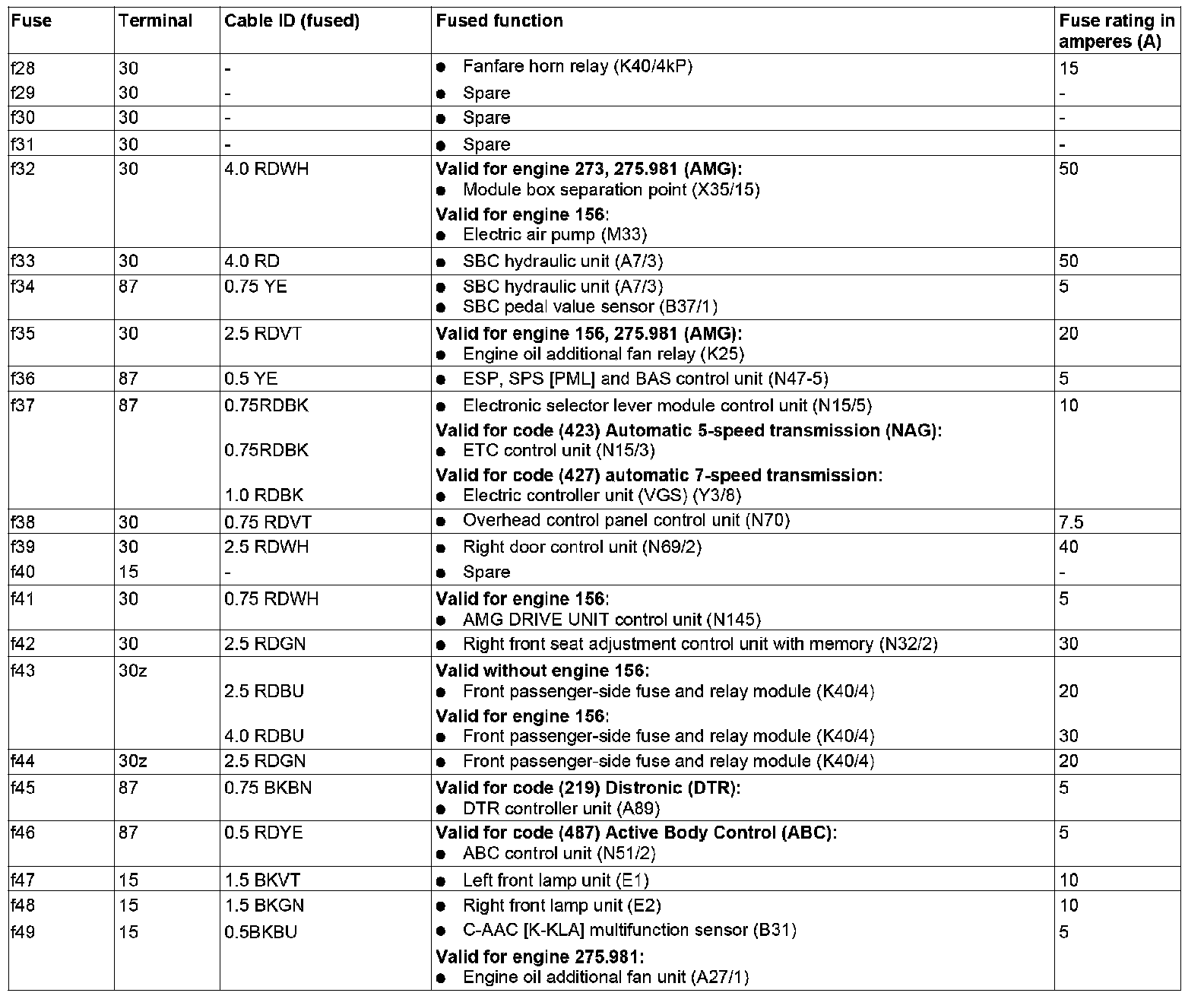

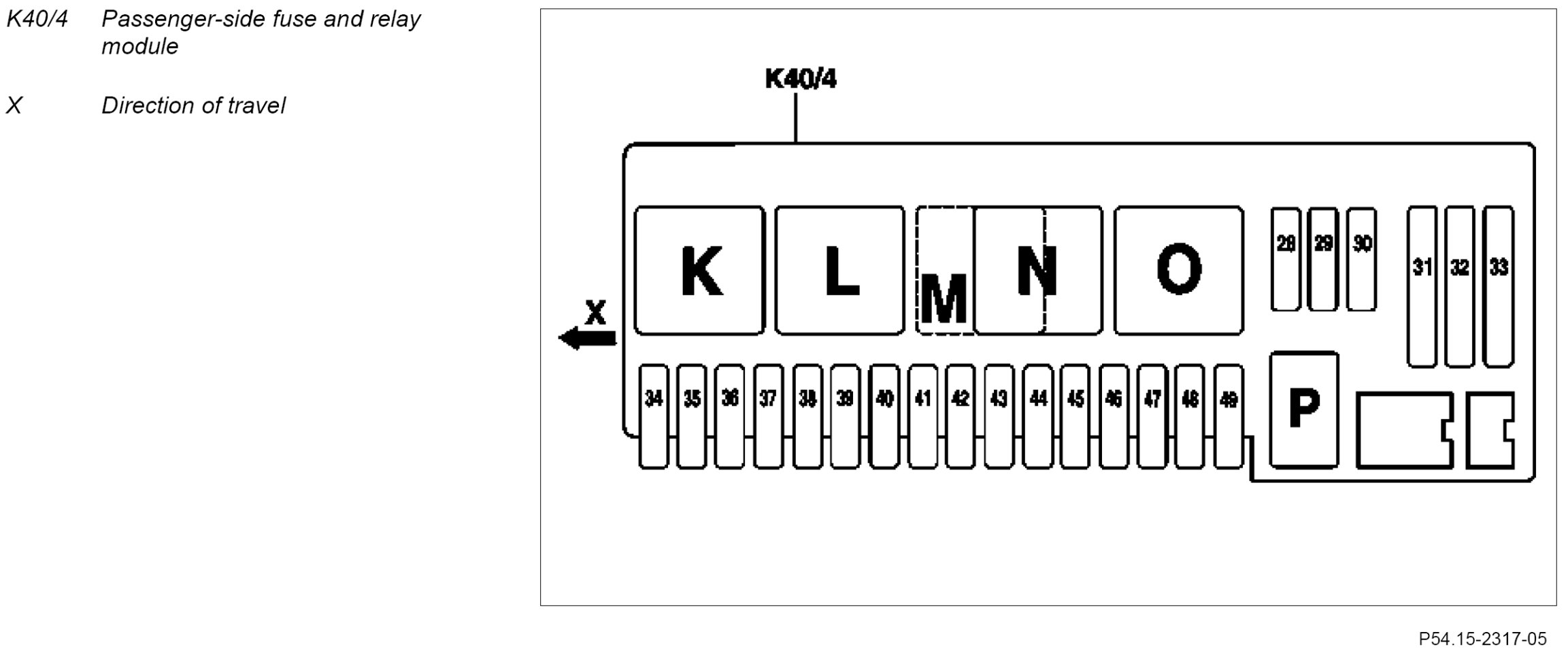

Component Identification:
