Home >> Mercedes Benz >> 2010 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> Brake Rotor/Disc >> BE42.10-P-1000-09N Test Values For Rear Brake Disks

BE42.10-P-1000-09N Test Values For Rear Brake Disks



BE42.10-P-1000-09N Test values for rear brake disks

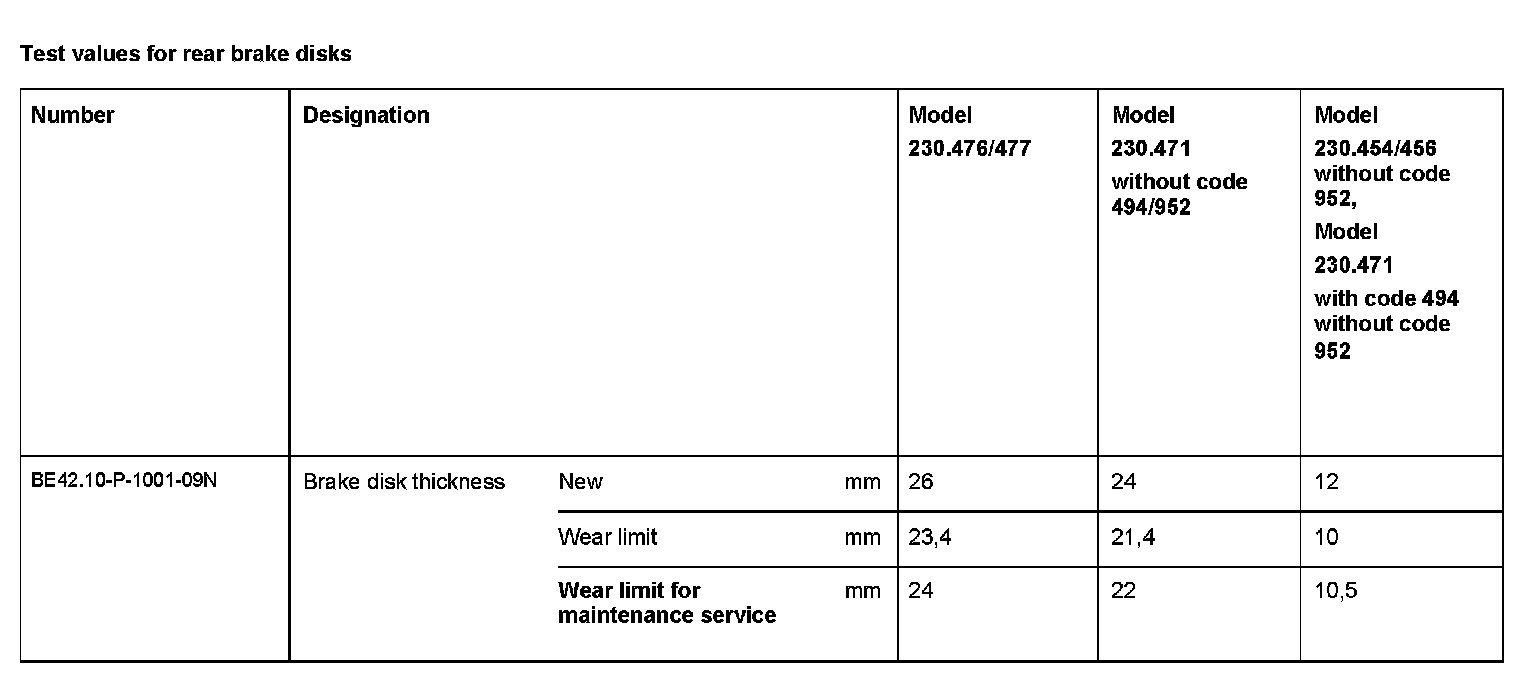

Test Values For Rear Brake Disks:

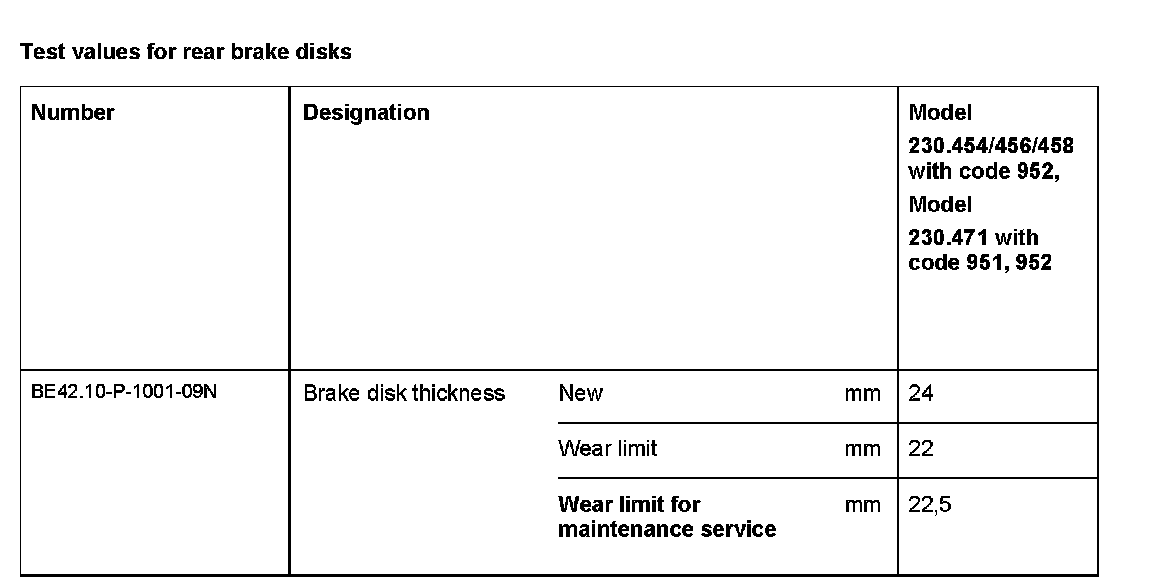

Test Values For Rear Brake Disks:




Test Values For Rear Brake Disks:
