GF91.60-P-4108RI Belt Tension Sensor, Component Description

GF91.60-P-4108RI Belt Tension Sensor, Component Description
- with CODE (494) USA version

Component Identification:

Location

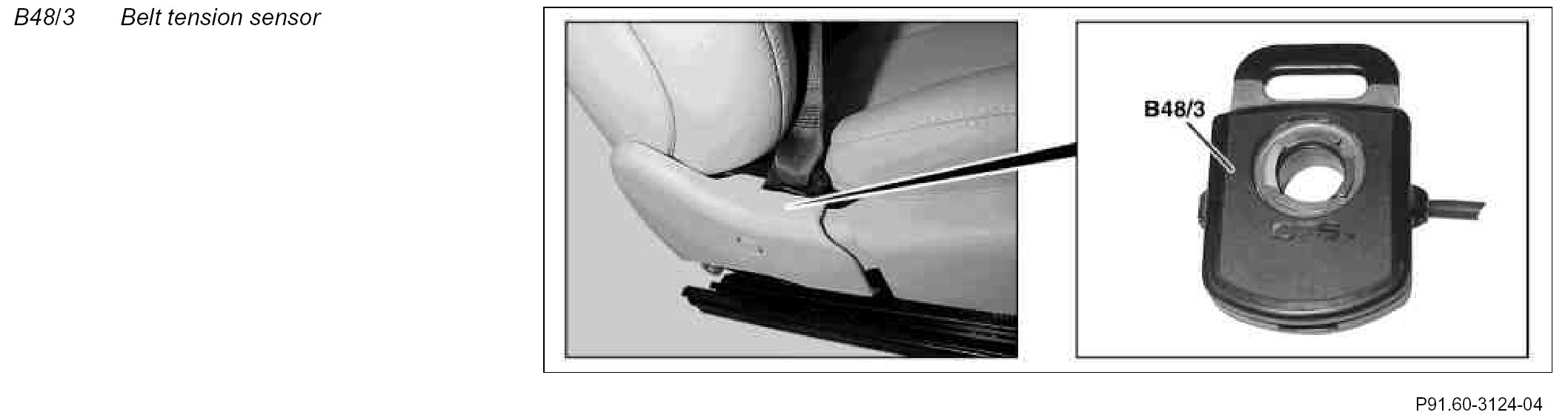

The belt tension sensor is located on the front passenger seat belt end fitting.

Task
The belt tension sensor measures the tension of the belt.

The value is read in by the Weight Sensing System (WSS) control unit (N110) to be able to perform any corrections during weight categorization of the seat occupied recognition.
