GF82.20-P-5071RI Mirror Lamp Switch, Component Description

GF82.20-P-5071RI Mirror Lamp Switch, Component Description

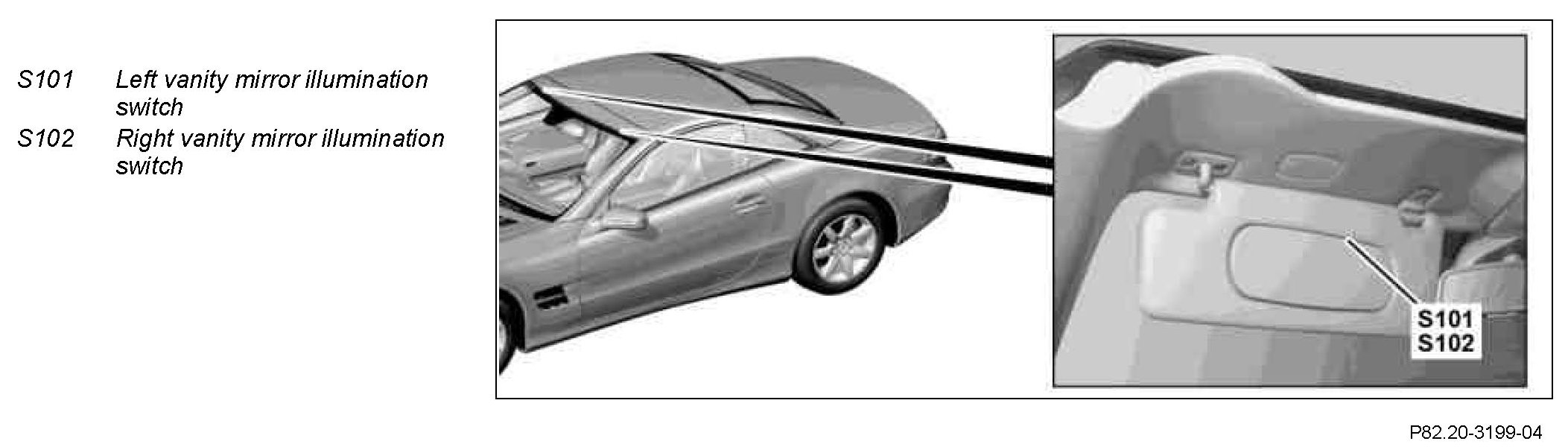

Component Identification:

Location
The left vanity mirror illumination switch is integrated in the hinge of the left mirror cover, and the right vanity mirror illumination switch is integrated in the hinge of the right mirror cover.

Task
When the relevant mirror cover is opened, vehicle ground is connected through to the left vanity mirror illumination (E14/6) or the right vanity mirror illumination (E14/7).
