Brake Light Switch: Description and Operation

GF42.10-P-2010RI Brake light switch, component description

Component Identification:

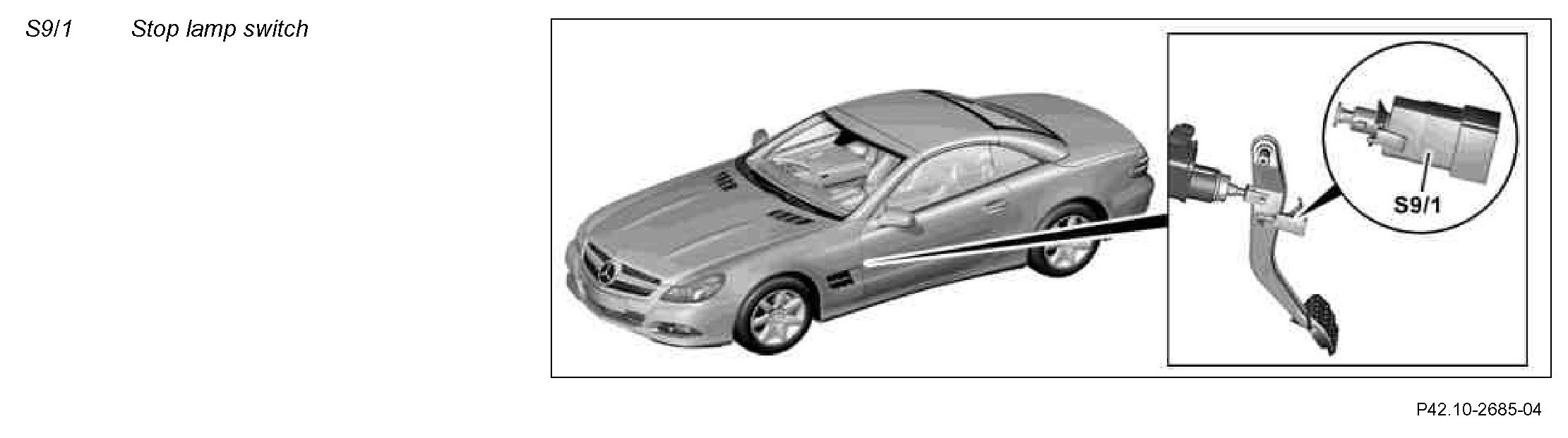

Location
The brake light switch is located on the brake pedal.

Task
The brake light switch is actuated when the brake pedal is depressed. Voltage is transmitted to the SBC control unit (A7/3n1) via the switching contacts of the brake light switch.

The SBC control unit generates the request for brake light actuation based on the incoming signal.
