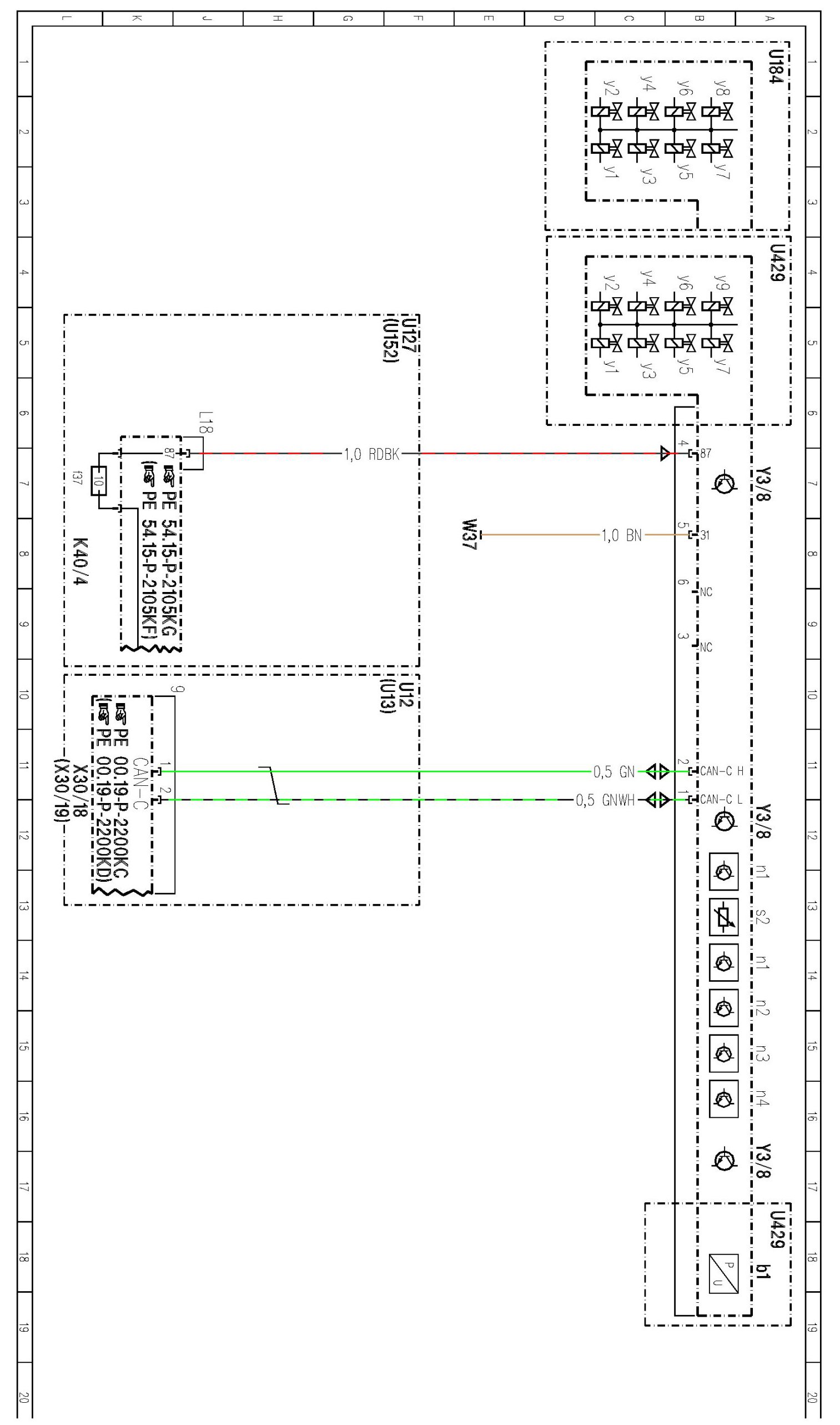

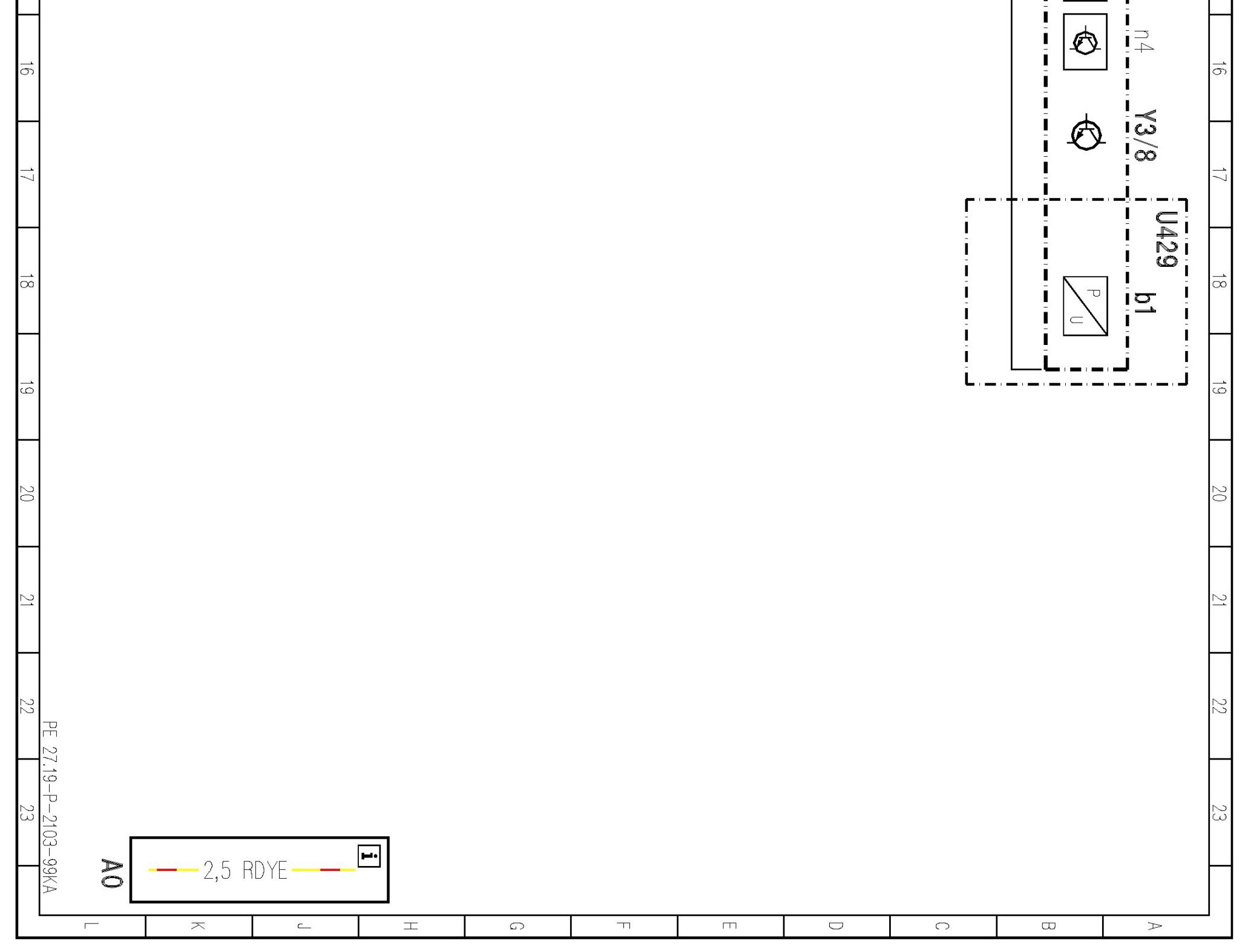

PE27.19-P-2103KA Fully Integrated Transmission Control Unit, Wiring Diagram

PE27.19-P-2103KA Fully Integrated Transmission Control Unit, Wiring Diagram

Transmission 722.9 in Model 230
- with CODE (427) 7-speed automatic transmission
- as of model year 2009 /YoM 08 model refinement package

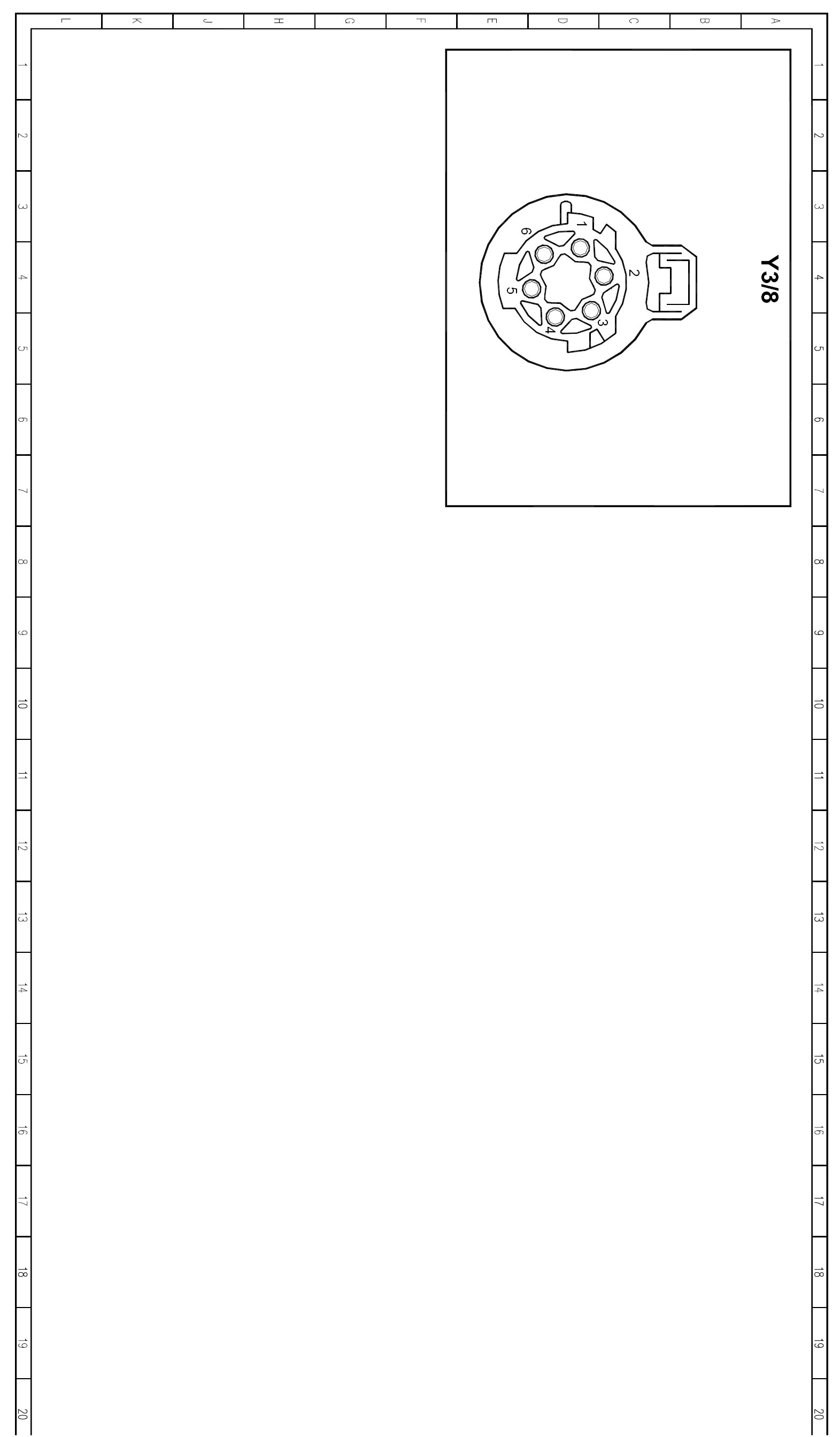

- Control unit Y3/8


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
