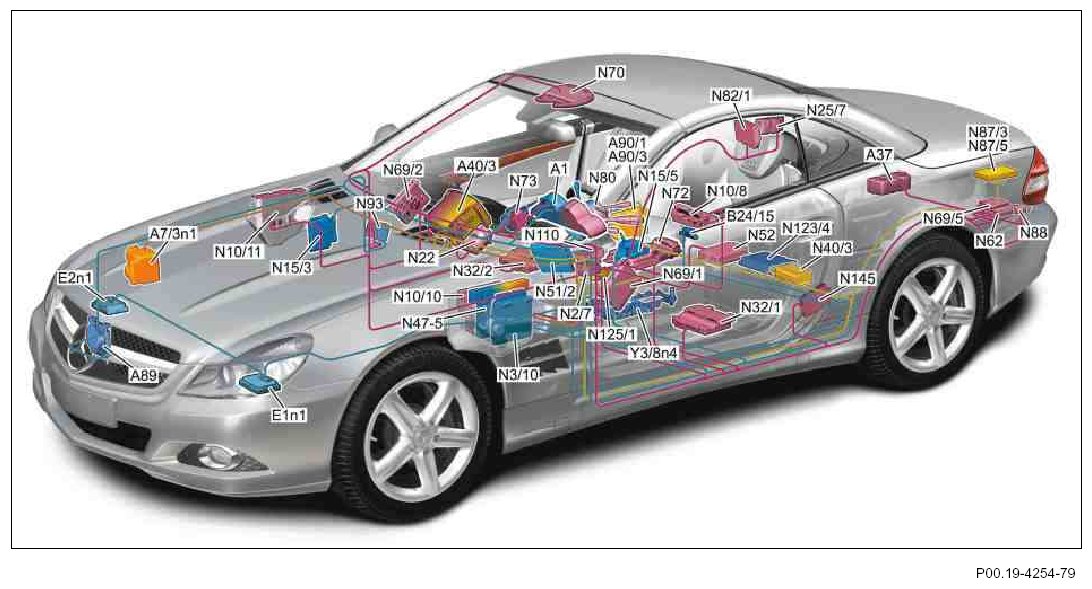

GF00.19-P-0001-01RI Overall Network (GVN), Location of Components

GF00.19-P-0001-01RI Overall Network (GVN), Location Of Components
- MODEL 230.4 except CODE (P99) Special model "AMG Black Series" as of Model Year 2009 /AEJ 08 MOPF






A1 Instrument cluster
A7/3n1 SBC control unit
A37 PSE controller unit with combined functions
A40/3 COMAND operating, display and controller unit
A89 DTR controller unit (with code (219) Distronic (DTR))
A90/1 TV combination tuner (analog/ digital) (with code (863) Digital/analog TV tuner)
A90/3 TV digital tuner (with code (865) TV tuner)
B24/15 Turn rate and lateral acceleration sensor
E1n1 Xenon headlamp control unit
E2n1 Xenon headlamp control unit
N2/7 Restraint systems control unit
N3/10 ME-SFI [ME] control unit
N10/8 Rear SAM control unit
N10/10 Driver-side SAM control unit
N10/11 Passenger-side SAM control unit
N15/3 ETC control unit (with transmission 722.6)
N15/5 Electronic selector lever module control unit
N22 AAC [KLA] control and operating unit
N25/7 AIRSCARF control unit (with code (403) AIRSCARF system)
N32/1 Left front seat adjustment control unit with memory
N32/2 Right front seat adjustment control unit with memory
N40/3 Amplifier for sound system (with code (810) Sound system)
N47-5 ESP, SPS [PML] and BAS control unit
N51/2 ABC control unit (with code (487) Active Body Control (ABC))
N52 RSC [UVS] control unit
N62 PTS control unit (with code (220) PARKTRONIC)
N69/1 Door control module left
N69/2 Door control module right
N69/5 Keyless-Go control unit (with code (889) Keyless-Go)
N70 Overhead control panel control unit
N72 Lower control panel control unit
N73 EIS [EZS] control unit
N80 Steering column module
N82/1 Vehicle power supply control module
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio and code (833) Great Britain version)
N87/5 SDAR control unit (with code (517) HD radio or code (536) SIRIUS satellite radio)
N88 TPM [RDK] control unit (with code (470) Tire pressure monitor (standard) or code (475) Tire pressure monitor (premium))
N93 Central gateway control unit
N110 WSS (Weight Sensing System) control unit (with code (494) USA version)
N123/4 Emergency call system control unit (with code (359) TELE AID emergency call system)
N125/1 Media interface control unit (with code (518) Media interface)
N145 AMG DRIVE UNIT control unit (with transmission 722.930)
Y3/8n4 Fully integrated transmission control (VGS) control unit (with transmission 722.9)
