Automatic Air Conditioning, Block Diagram
Automatic Air Conditioning, Block Diagram

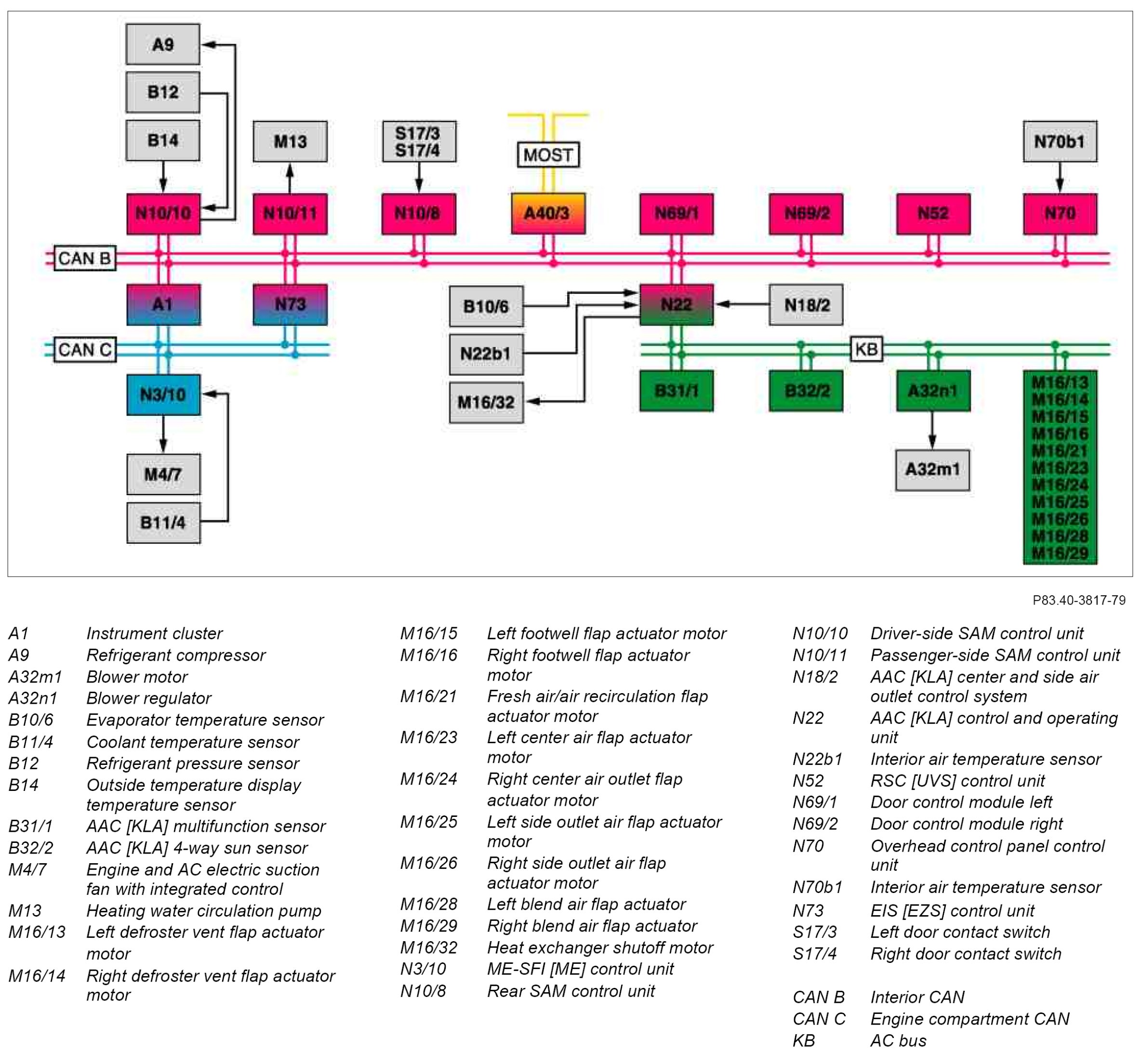

GF83.40-P-0005-02RI Automatic Air Conditioning, Block Diagram
