Home >> Mercedes Benz >> 2010 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Service and Repair >> Removal and Replacement >> AR01.30-P-5700ML Remove/Install Front Cover on Cylinder Head

AR01.30-P-5700ML Remove/Install Front Cover on Cylinder Head




ARO1.30-P-5700ML Remove/install front cover on cylinder head
- Left cover

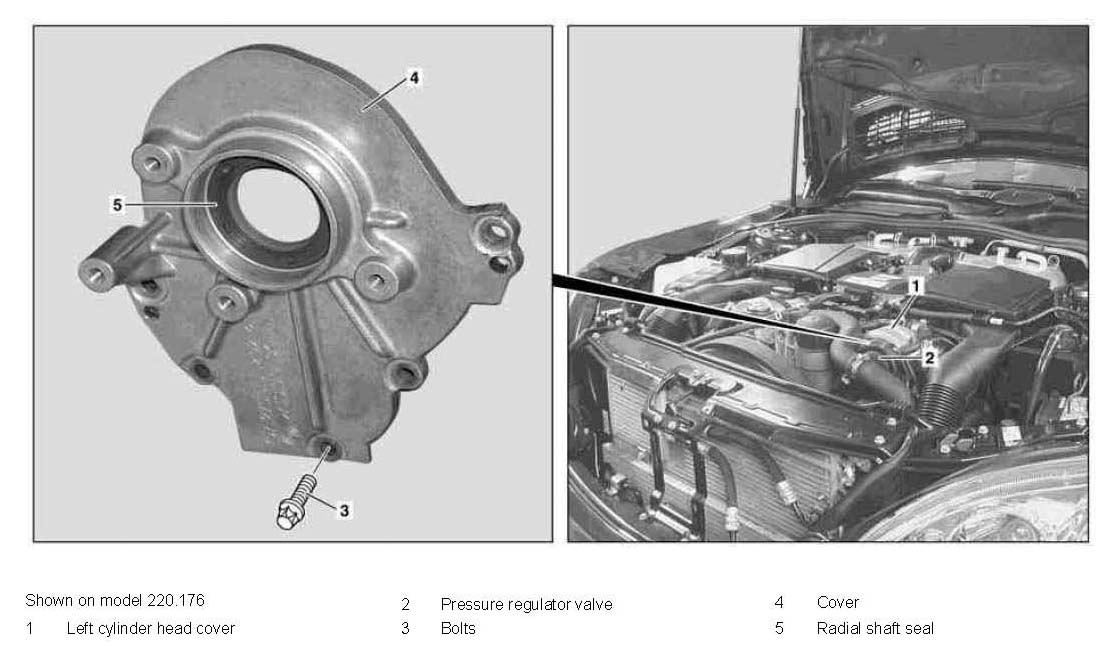

Component ID:

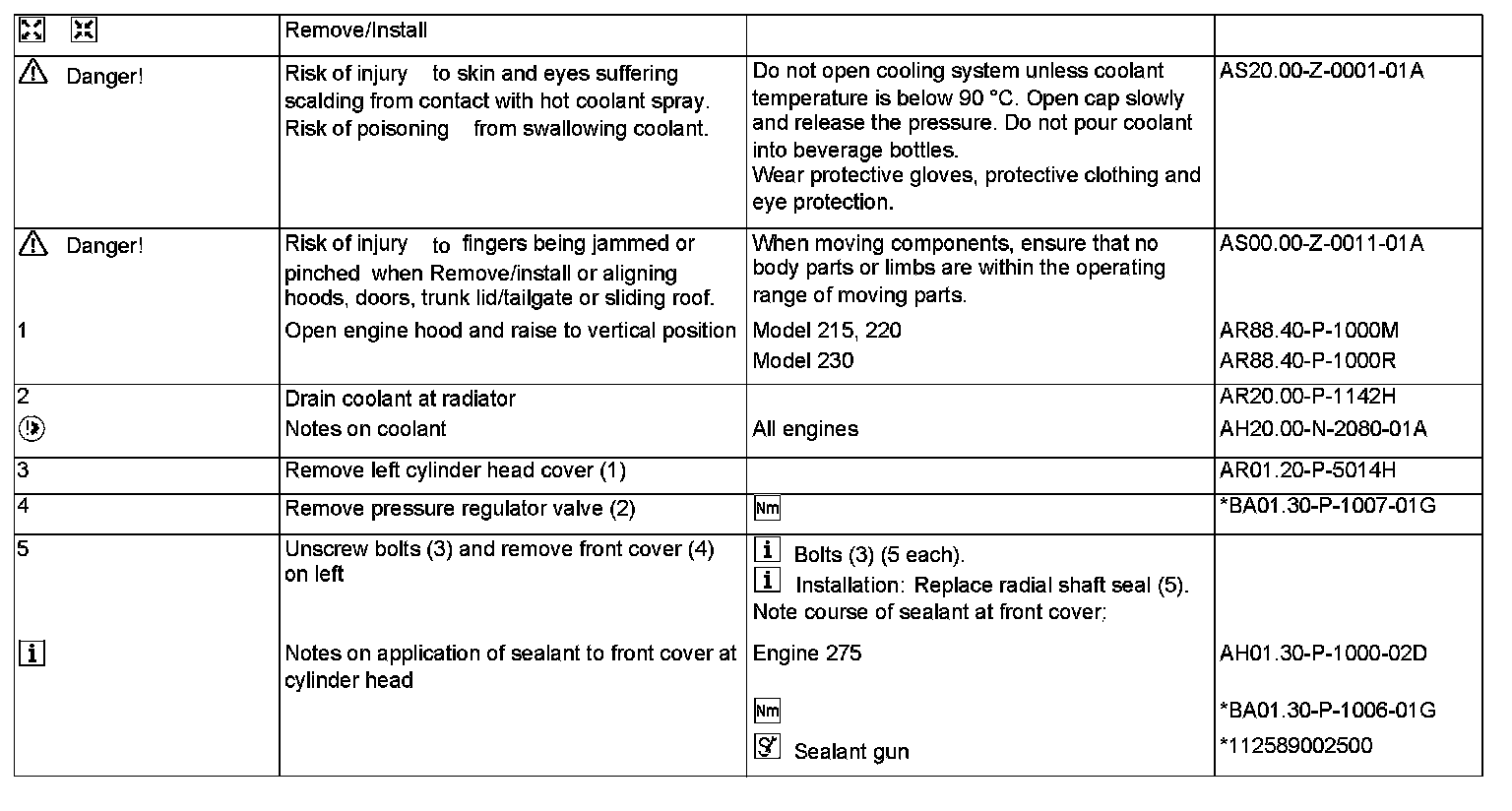

Steps 1-5:






Step 6:

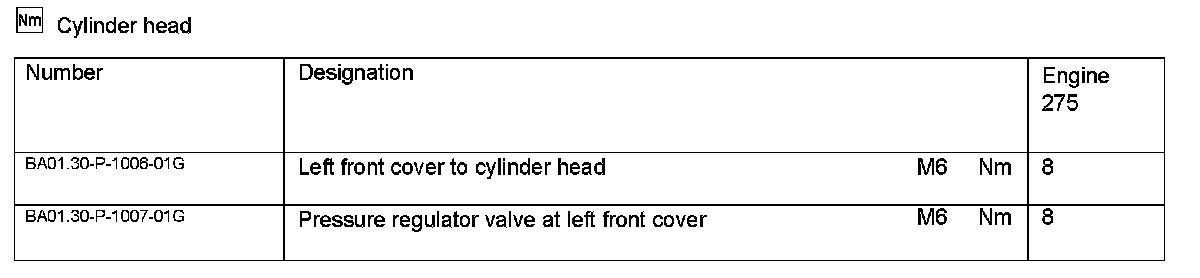

Torque Specs:

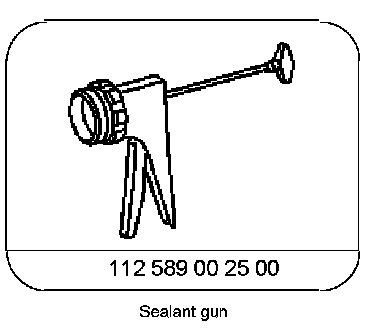

Commercially Available Tools:

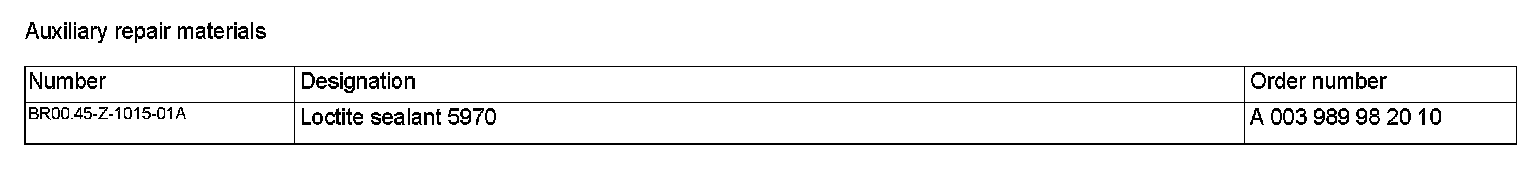

Auxiliary Repair Materials:
