Procedures

ARO3.20-P-4355-02L Mount crankshaft axially





















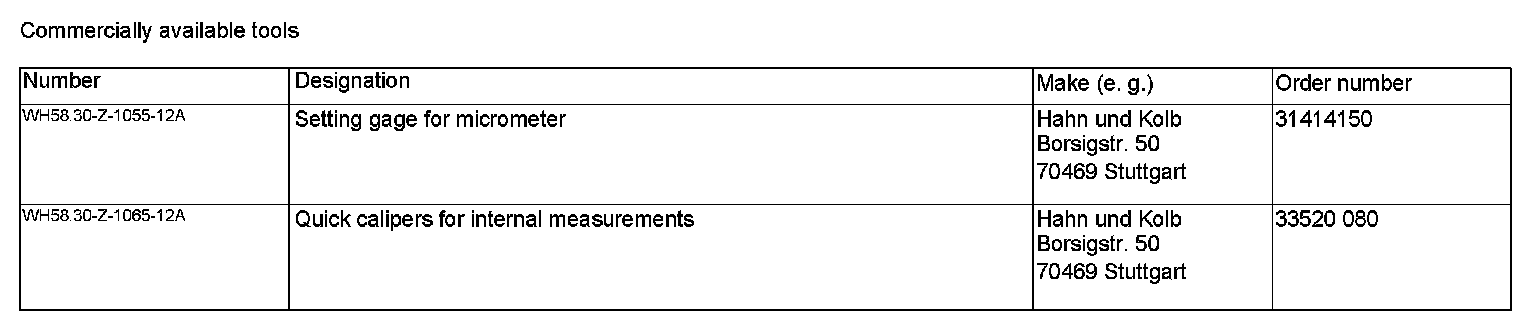

1 Measure fitted bearing width (5th main bearing) at the upper crankcase section and note.

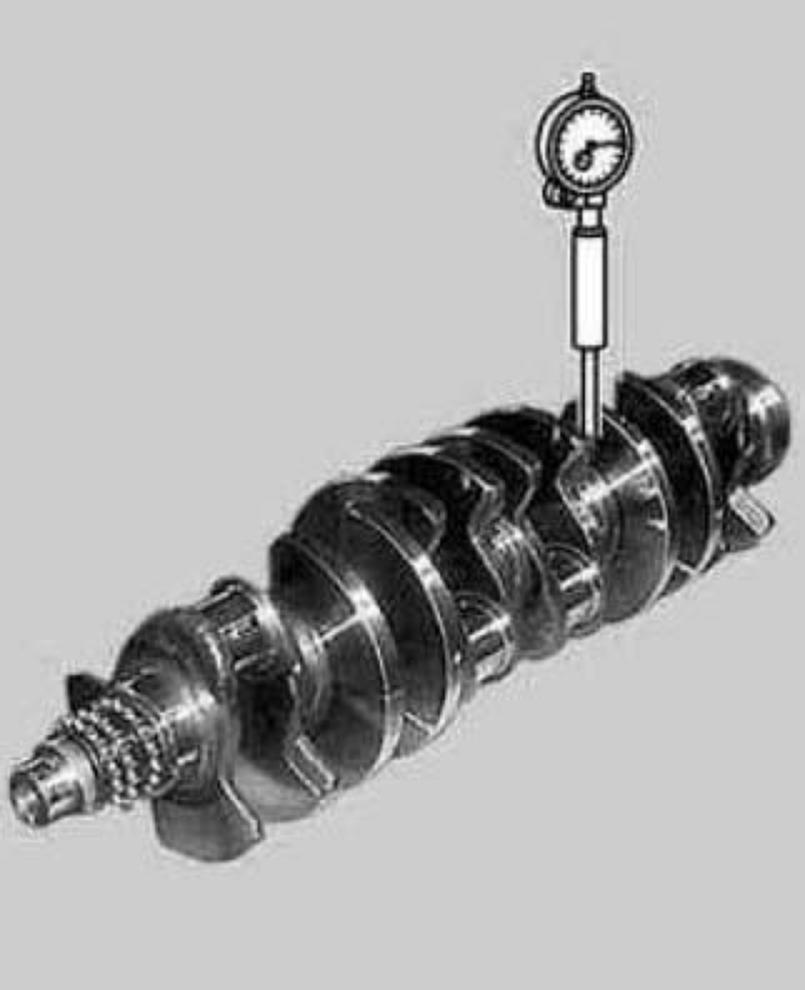

2 Measure width of fitted bearing at crankshaft, note.

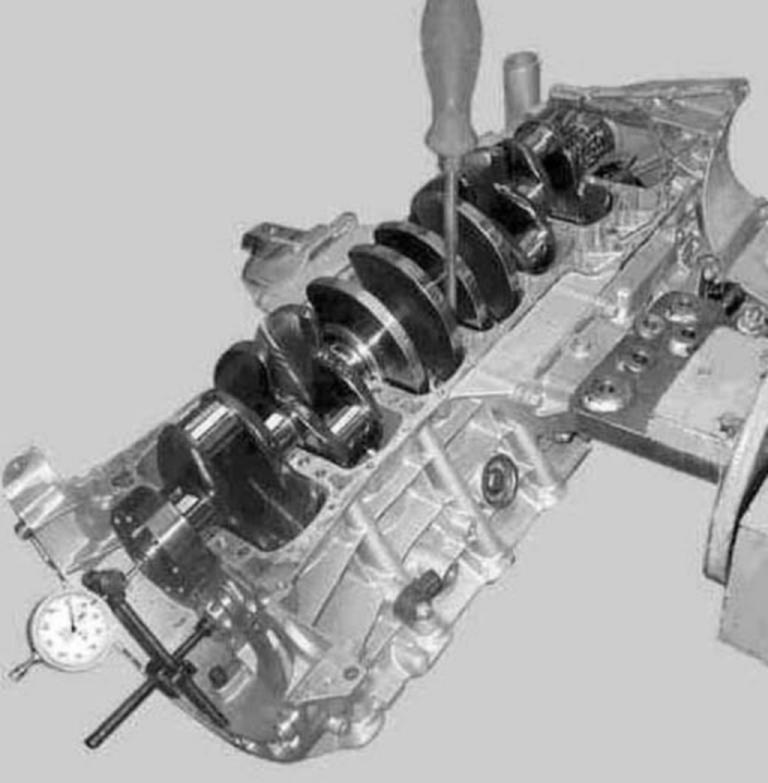

3 Determine thickness of thrust washer.





4 Insert thrust plates (5). m The oil grooves (arrows) must be pointing toward the contact surface of the crankshaft and be oiled.

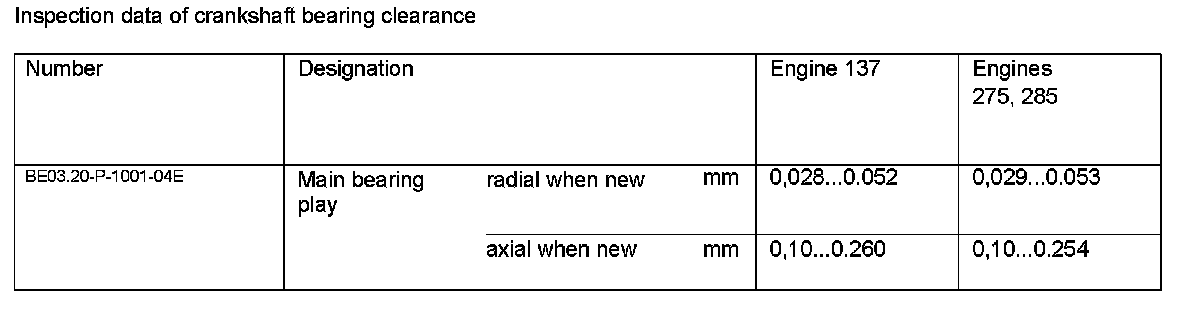

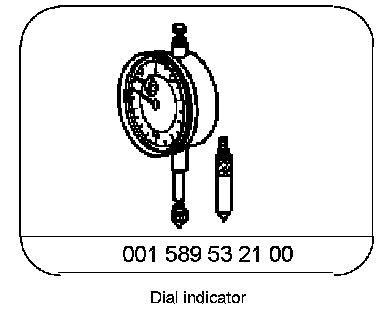

5 Measure axial bearing clearance and correct if necessary.
