Function Diagrams

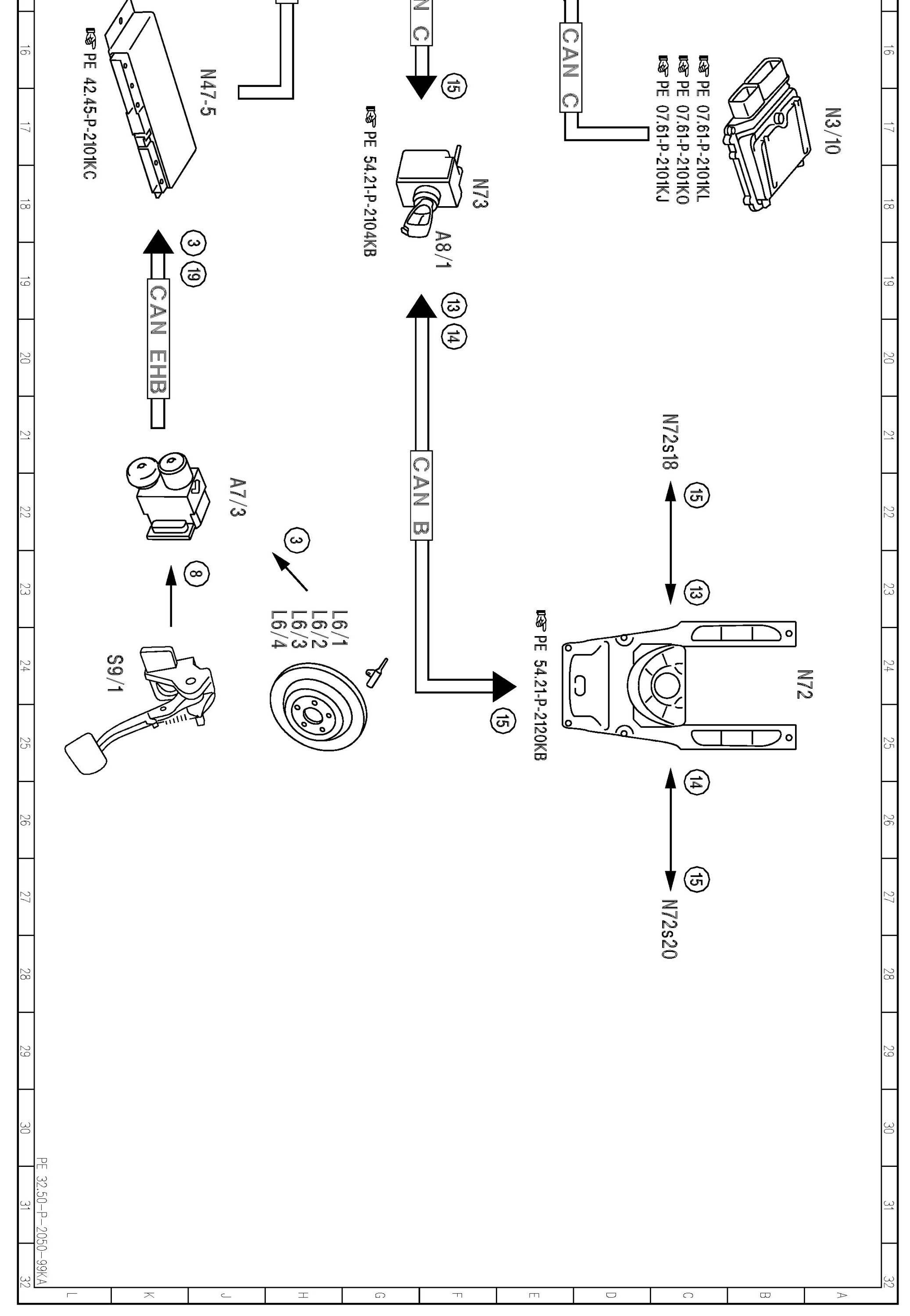

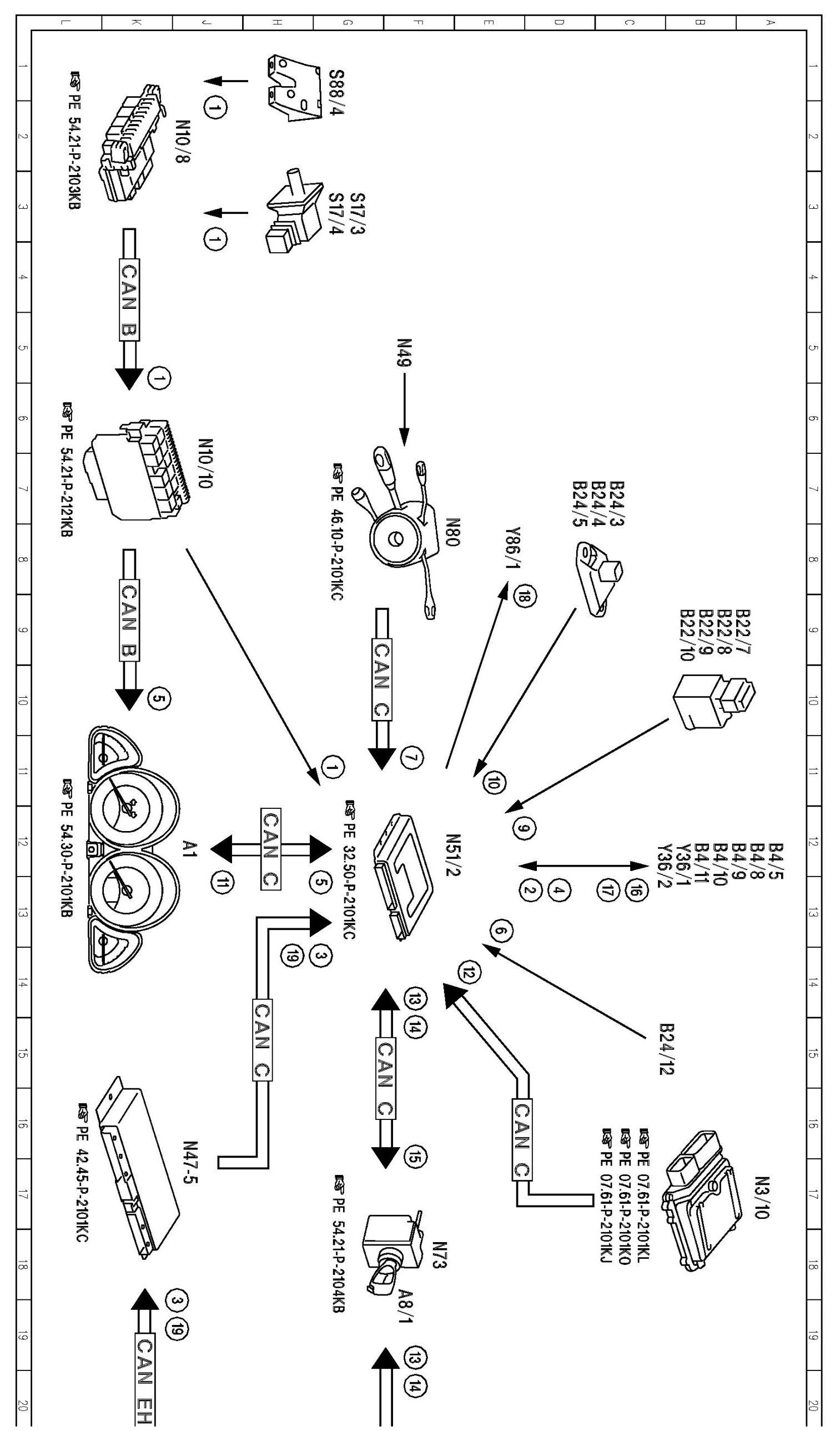

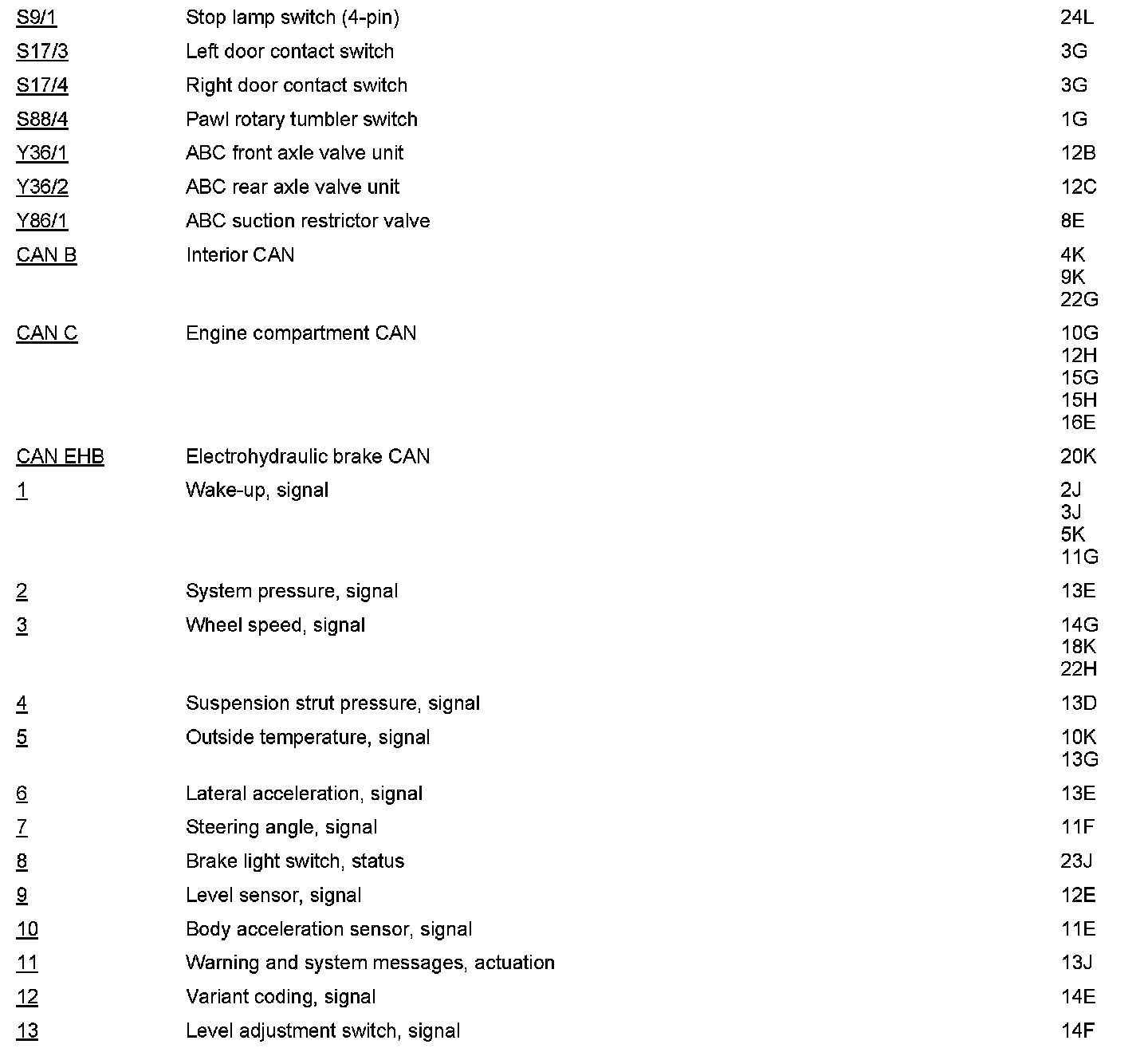

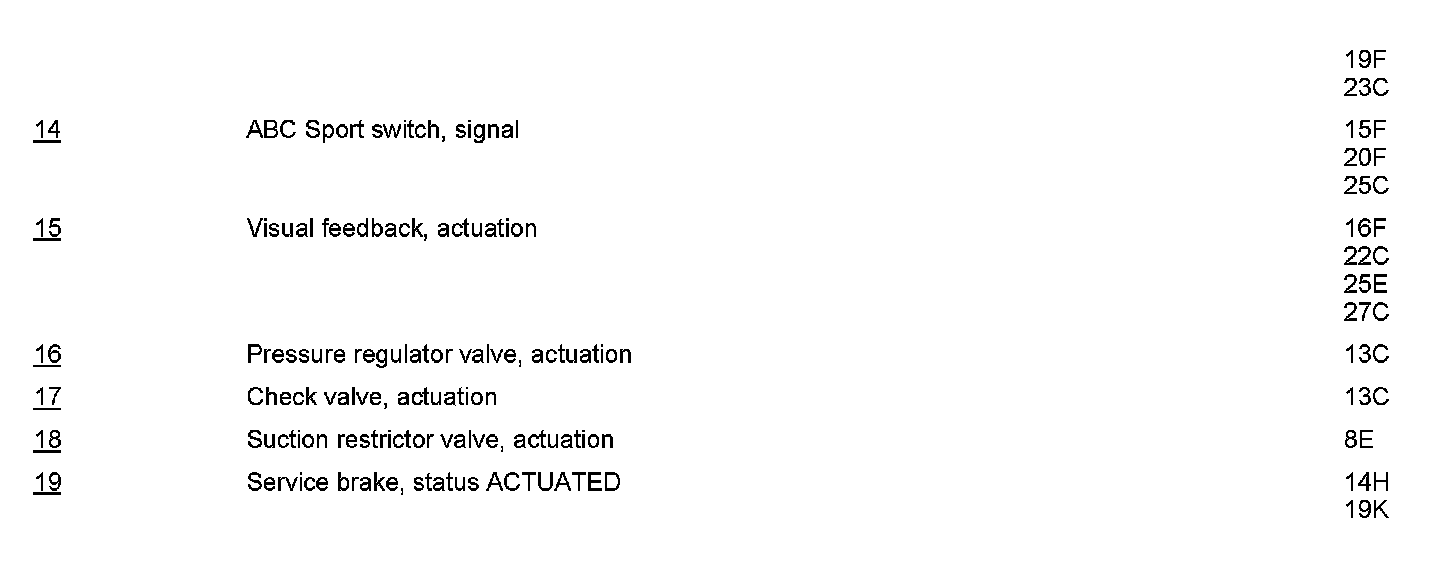

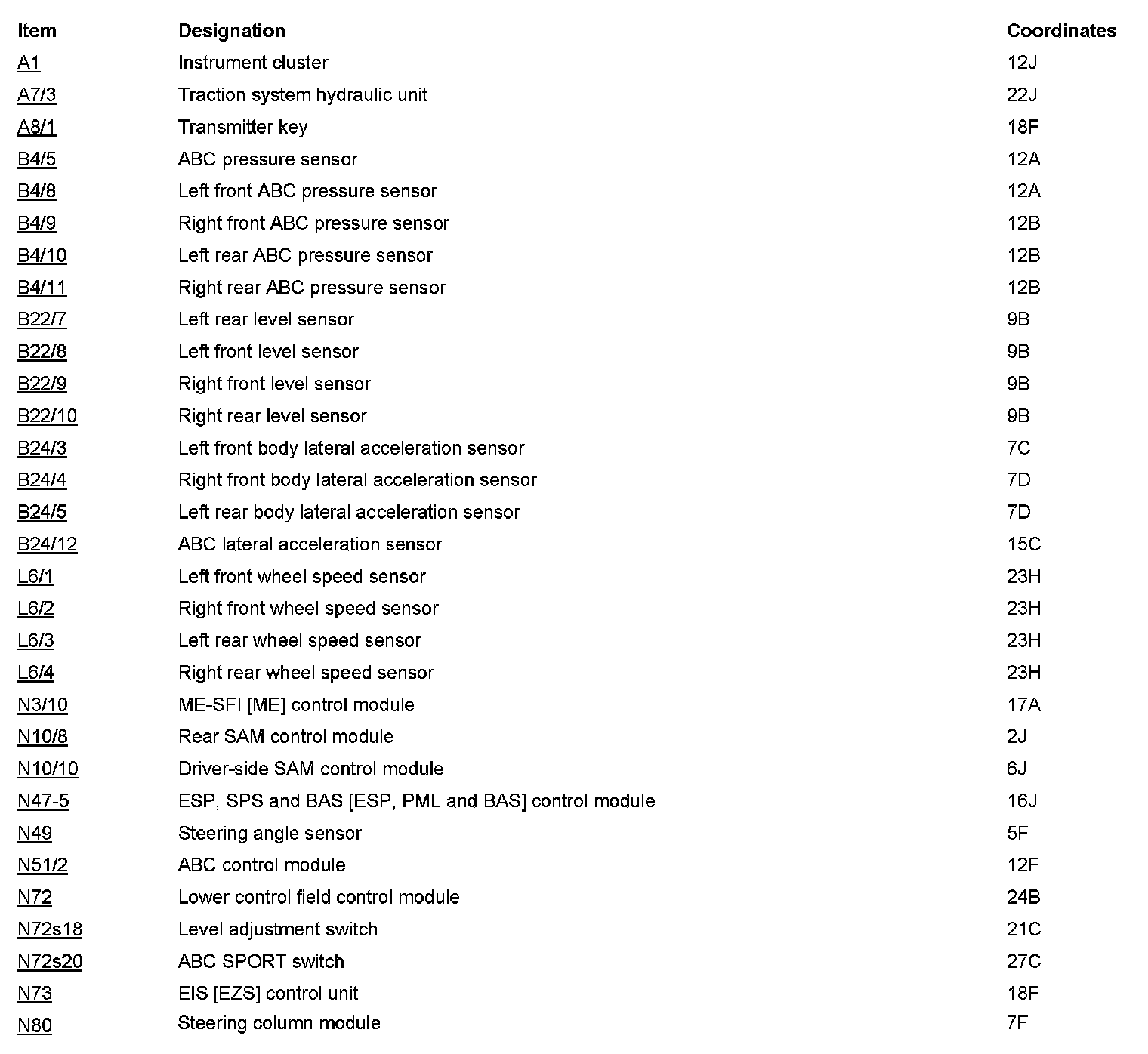

PE32.50-P-2050KA Active Body Control (ABC), Function Diagram

Engine 156, 272, 273, 275 in Model 230.4
- with CODE (219) Distronic (DTR)
- as of model year 2009 /YoM 08 model refinement package






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
