PE09.40-P-2050KC Electrical Function Schematic For Boost Pressure Control

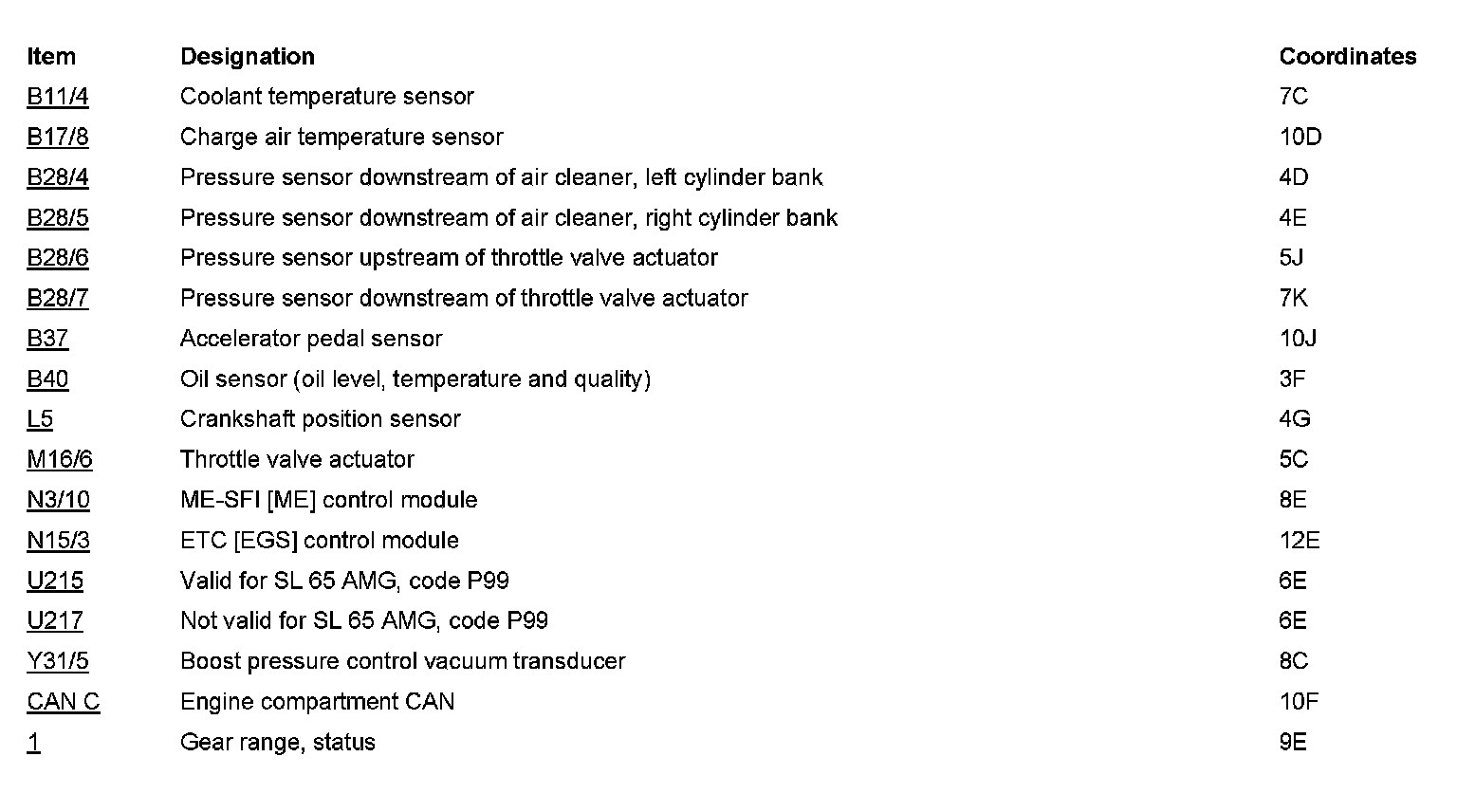

PE09.40-P-2050KC Boost Pressure Control, Function Diagram

Model 230.4
- with Engine 275
- as of model year 09 /YoM 08 model refinement package










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
