Convertible Top Motor: Description and Operation

GF77.39-P-3051RI Vario Roof Side Flap Motor, Component Description
- except CODE (P99) Special model "AMG Black Series"
- refinement package
- as of model year 09

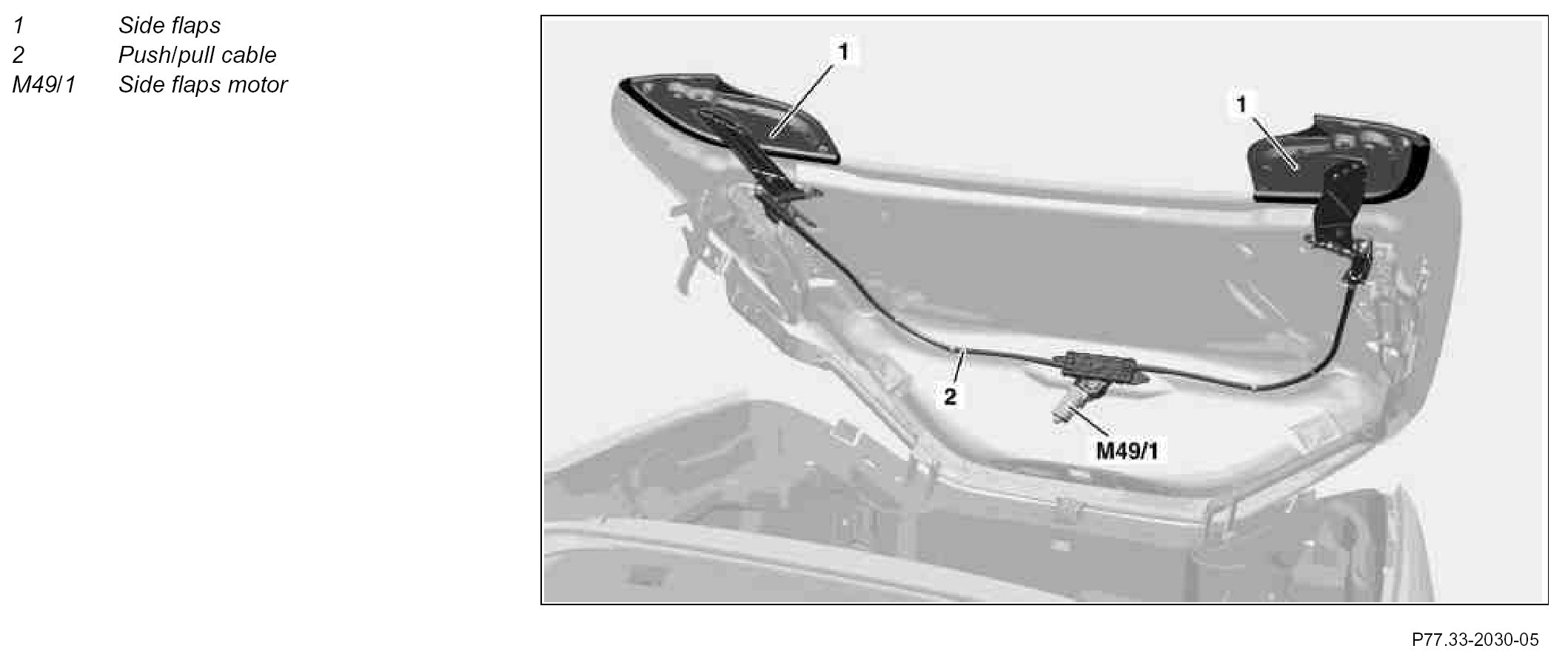

Component Identification:

Location
In the center of the trunk lid above trunk lid lock

Task
Actuation via push/pull cable for side flaps.

Design
The side flap motor (M49/1) is connected firmly to the two side flaps by the push/pull cable.
