FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2010
>>
SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Convertible Top Latch
>>
Service and Repair
Convertible Top Latch: Service and Repair
AR77.33-P-3400R Remove/Install Catch At Front of Vario Roof

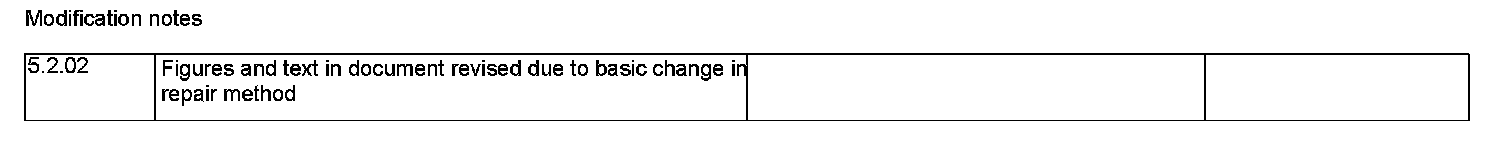

Modification Notes:

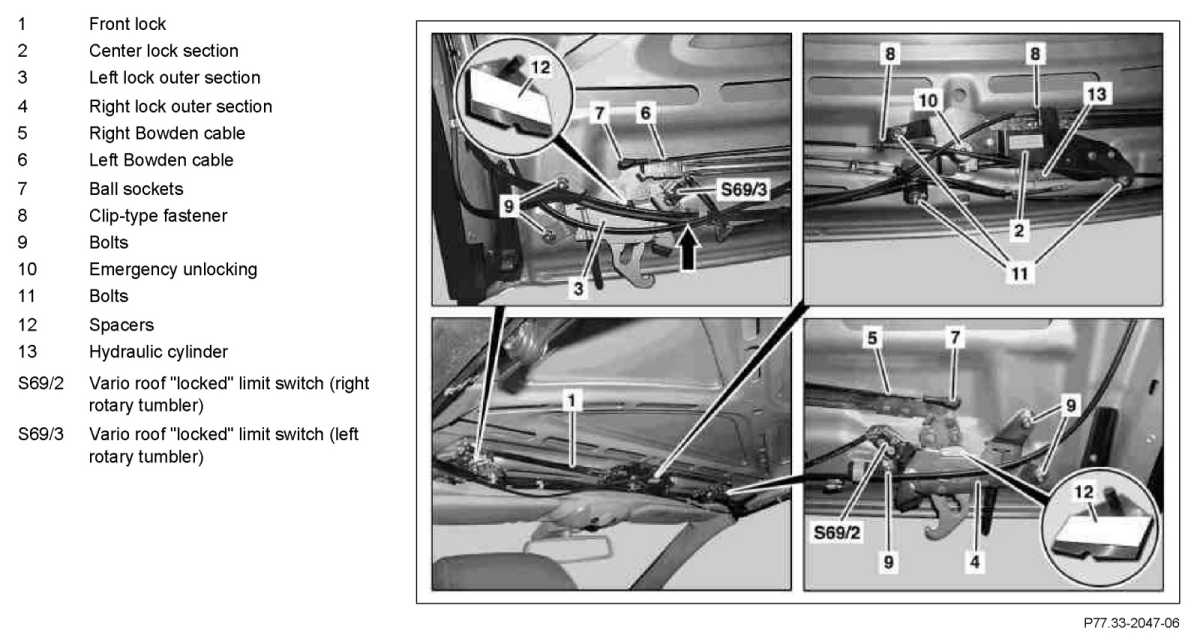

Part 1:

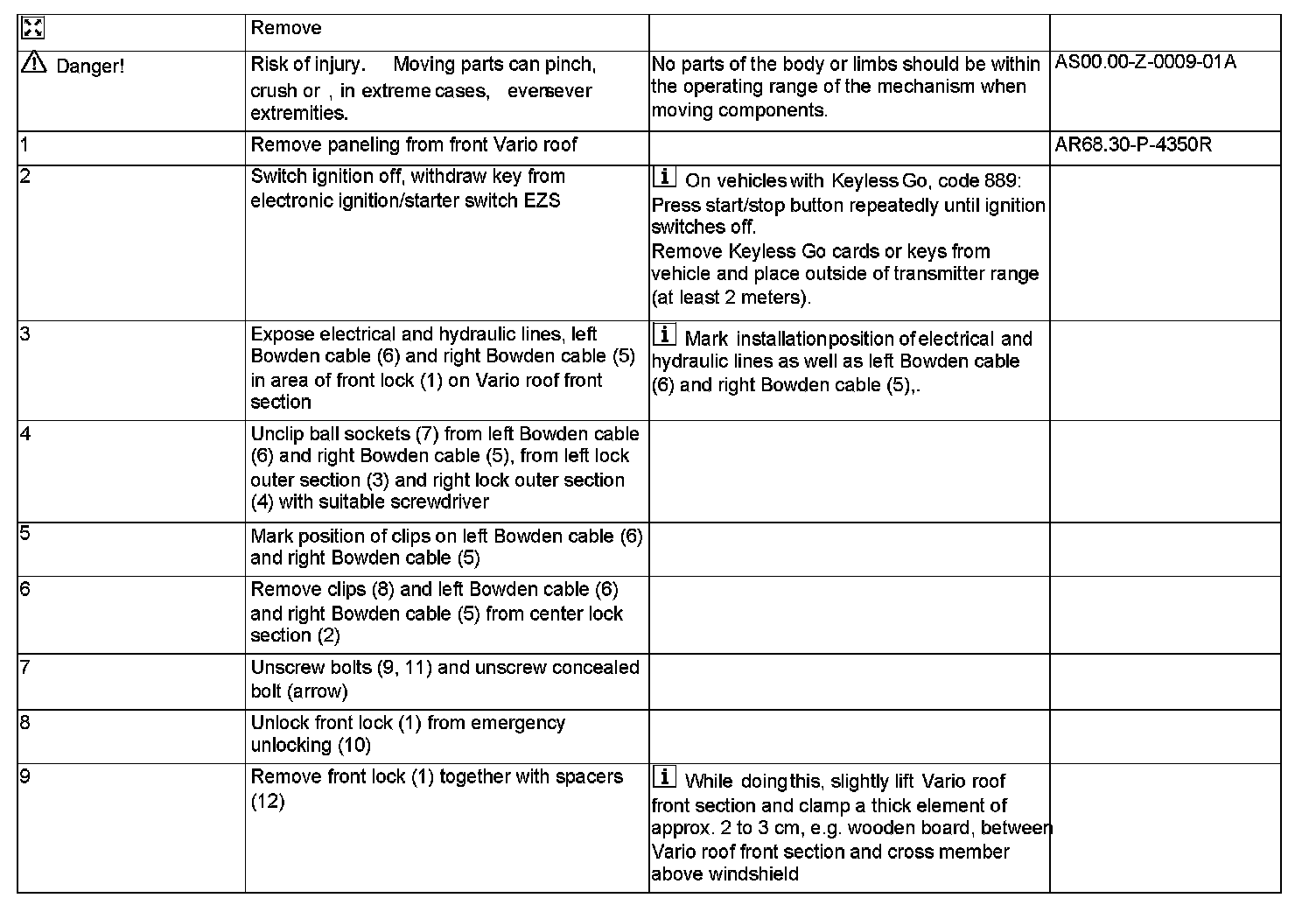

Part 2:

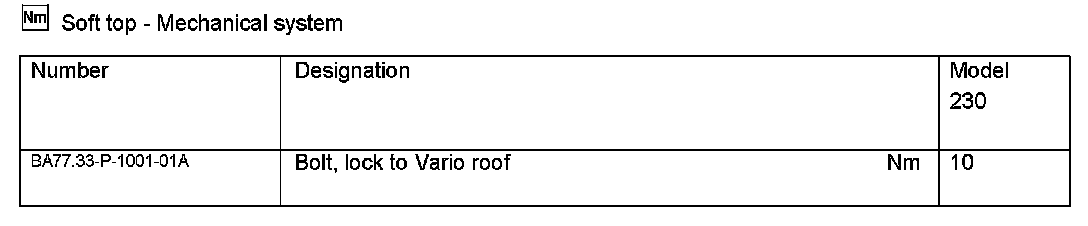

Soft Top - Mechanical System:
