GF54.65-P-0003-02RI Parktronic Block Diagram
GF54.65-P-0003-02RI Parktronic Block Diagram

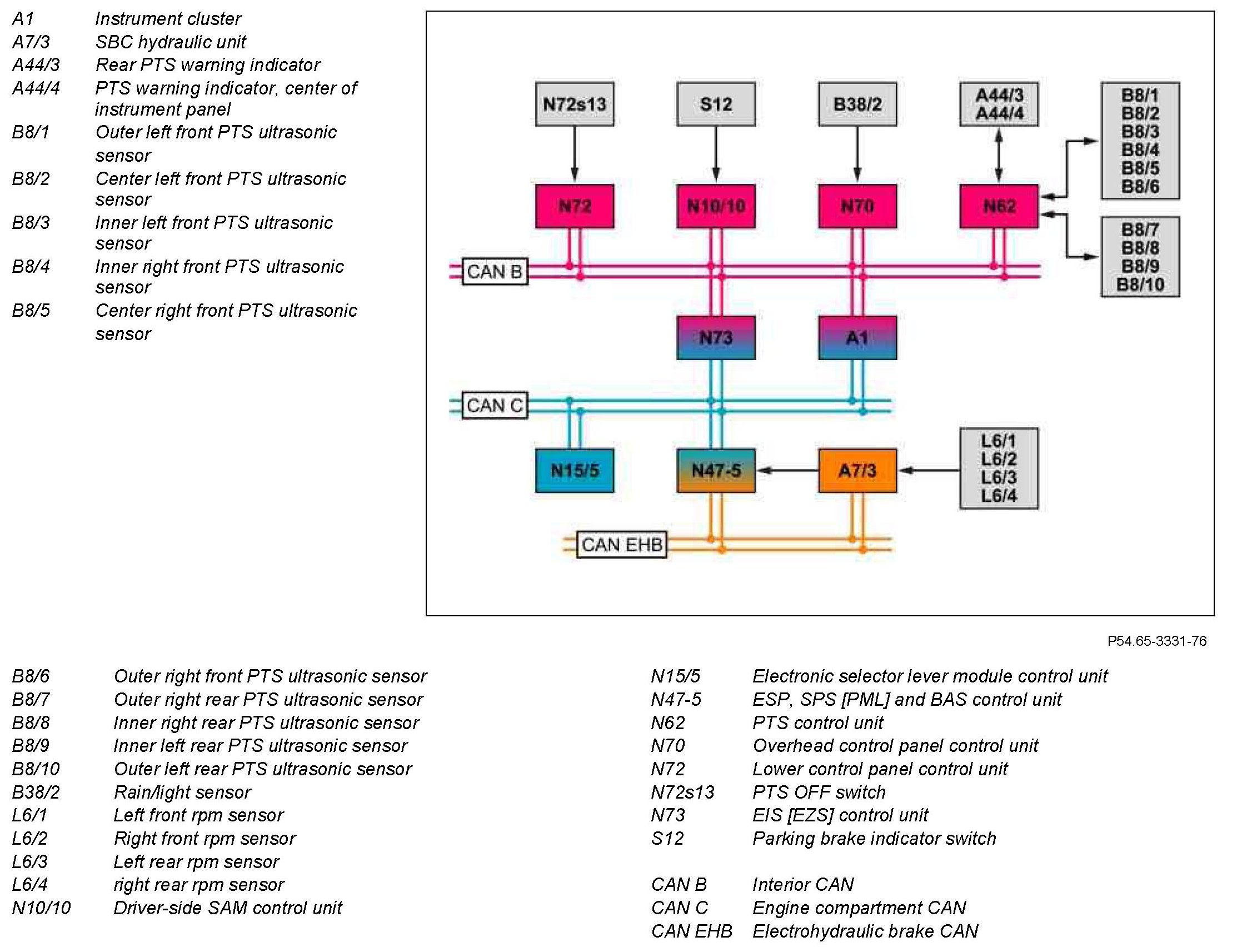

GF54.65-P-0003-02RI PARKTRONIC Block Diagram
- with CODE (220) PARKTRONIC
Component Identification:
