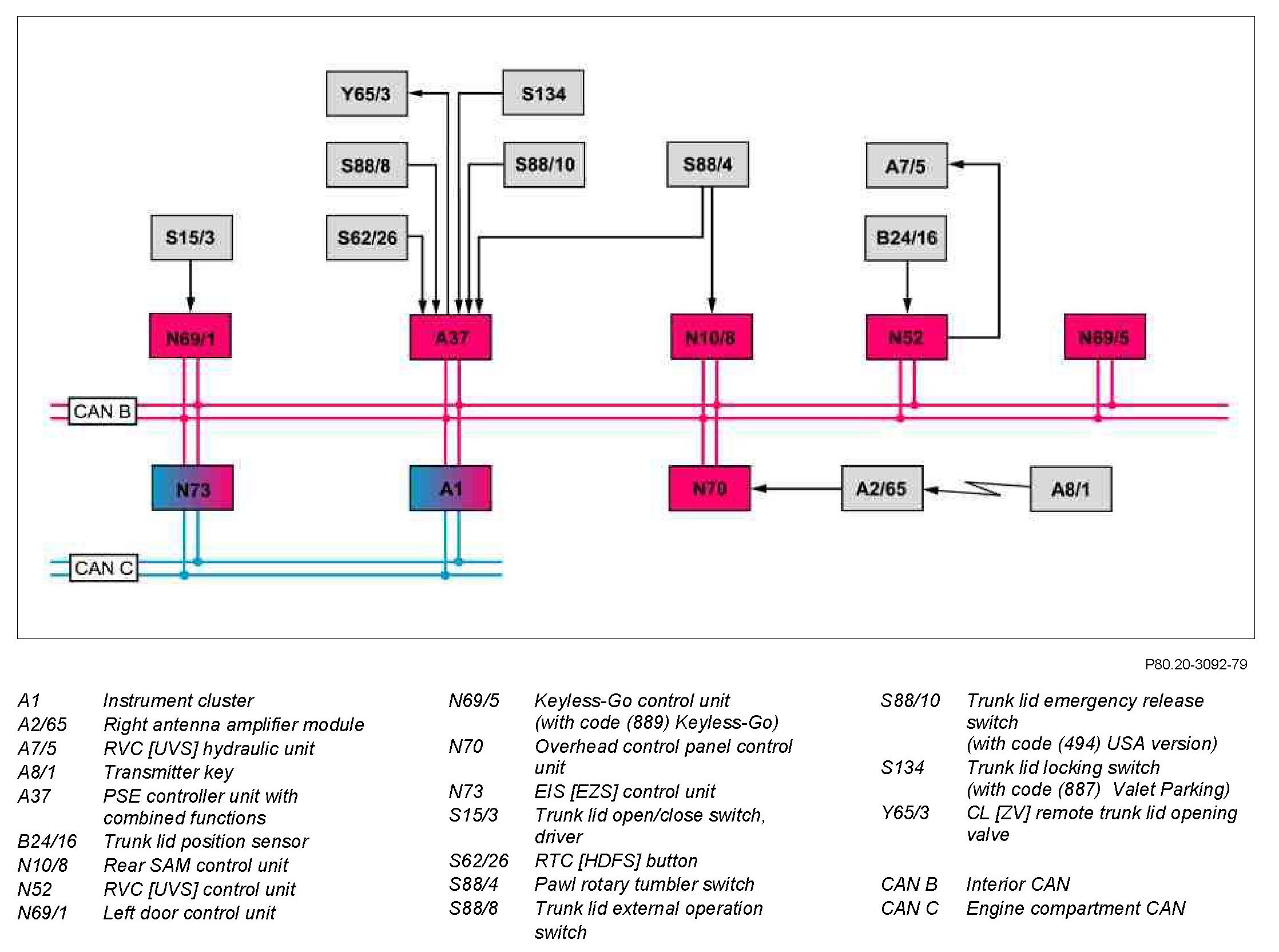

GF80.20-P-0007-04RI Remote Trunk Closing (RTC) Block Diagram



GF80.20-P-0007-04RI Remote Trunk Closing (RTC) Block Diagram
- with CODE (881) Remote trunk closing (RTC [HDFS])


Component Identification:
