Antenna - Keyless Entry: Description and Operation

GF80.61-P-4202RI Keyless-go Antenna, Component Description
- with CODE (889) Keyless Go

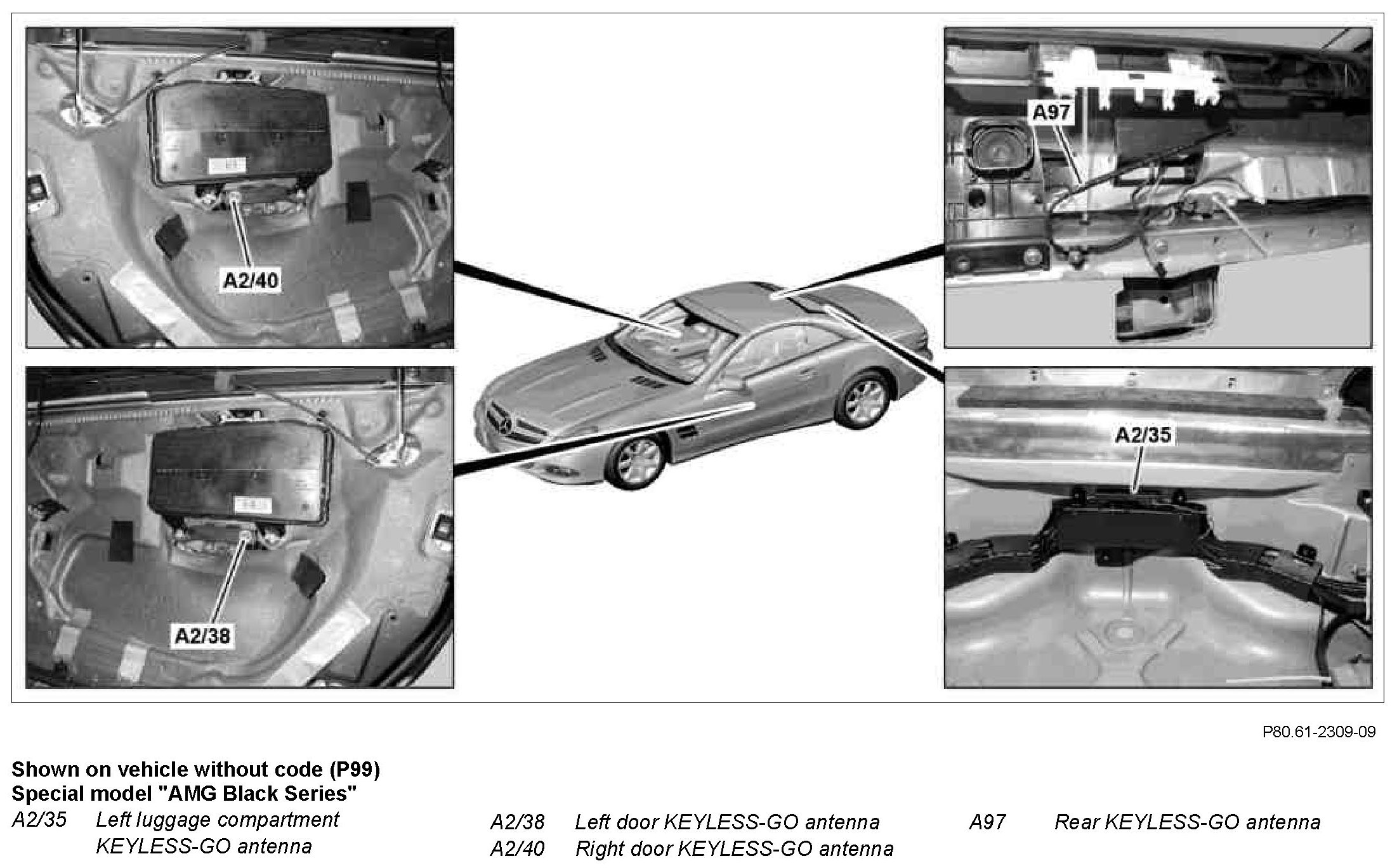

Component Identification:

Location
The left trunk KEYLESS GO antenna is located in front of the spare tire well in the trunk.
The KEYLESS GO door antennas are located in the corresponding door behind the door panel.
The rear Keyless Go antenna is located in the bracket in the roll bar.

Task
On request from the KEYLESS GO control unit (N69/5) the KEYLESS GO trunk antennas and the KEYLESS GO door antennas transmit a wake-up and locating signal to the transmitter key (A8/1). The rear KEYLESS-GO antenna receives signals transmitted by the transmitter key.
