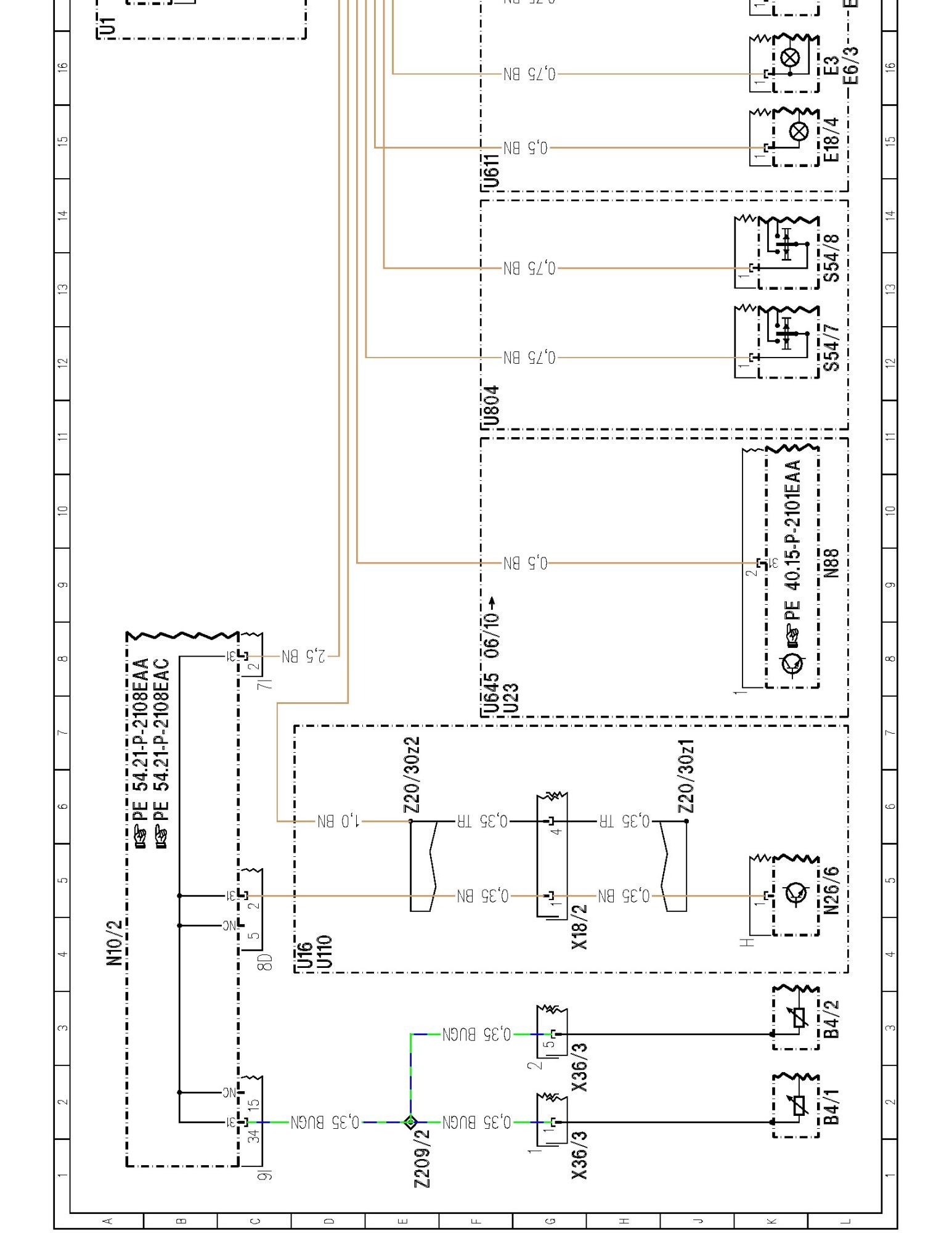

PE00.19-P-2800EAA Ground Wiring

PE00.19-P-2800EAA Ground Wiring

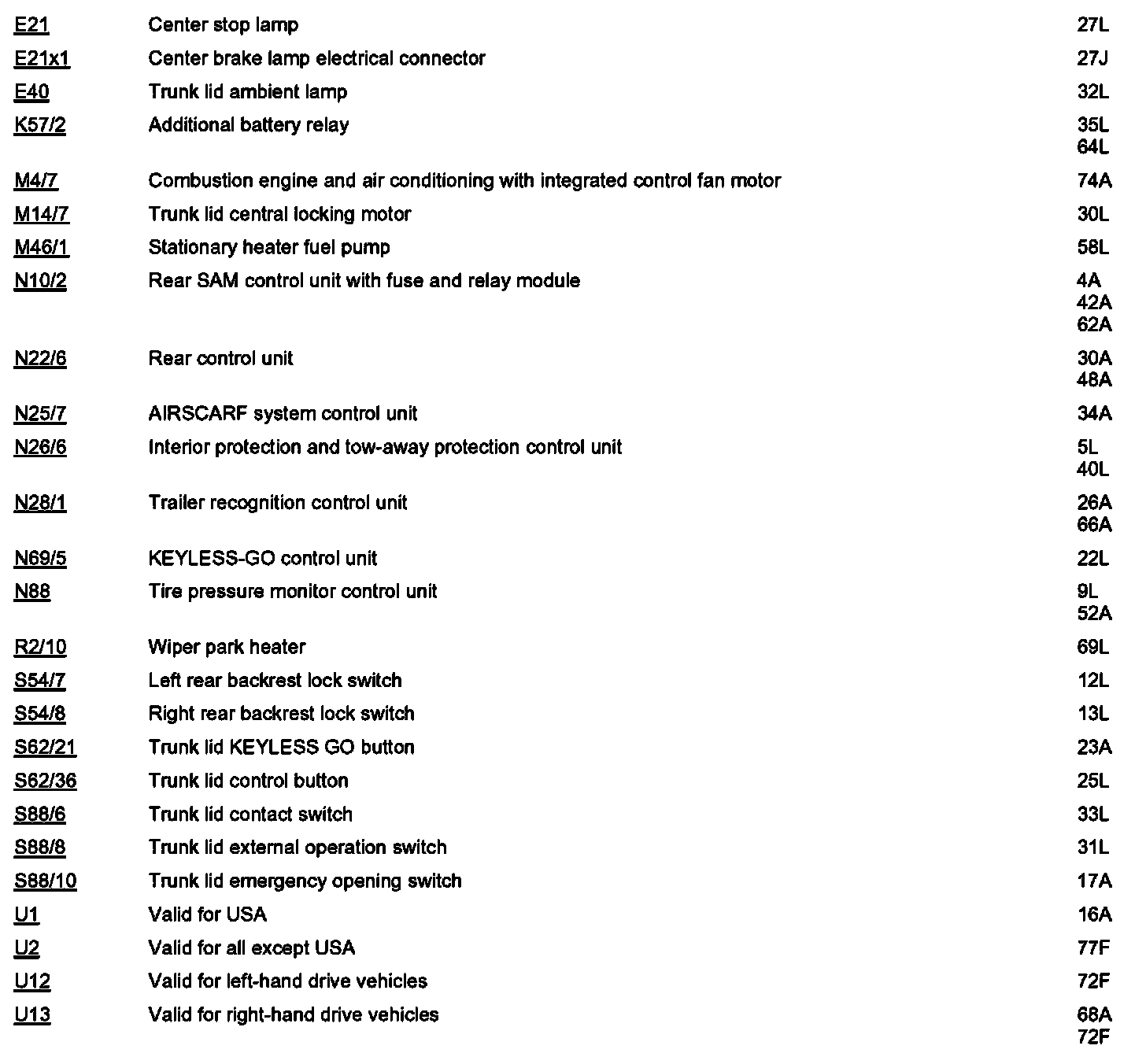

- W7, W7/1, W9, W33/4, Z6/1, Z20/30z1, Z20/30z2, Z108, Z209/2
- Sheet 1











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
