Front Axle Toe



BE40.20-P-1001-07I Front axle toe

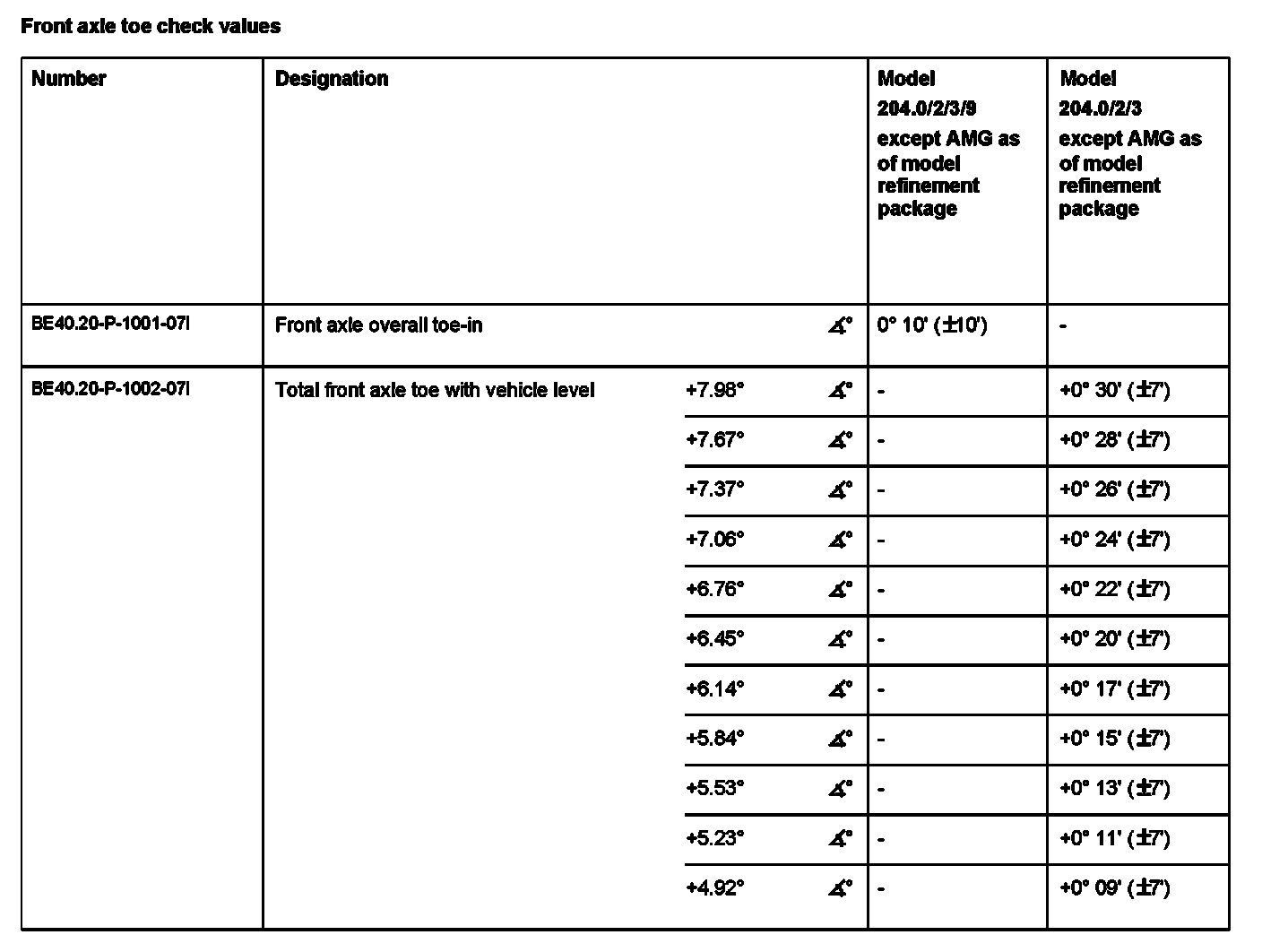

Front axle toe check values:

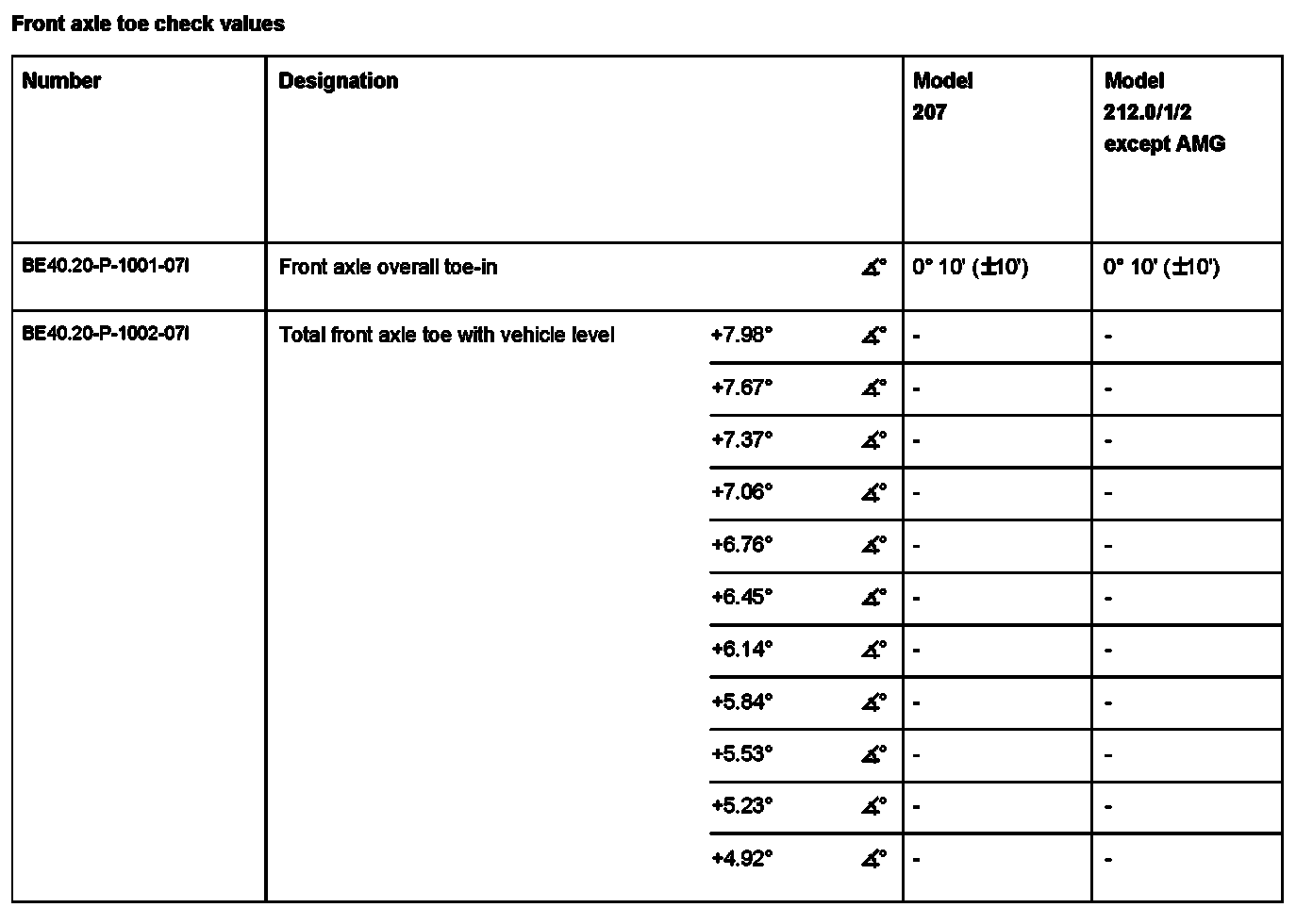

Front axle toe check values:
