Window Shade Switch: Locations

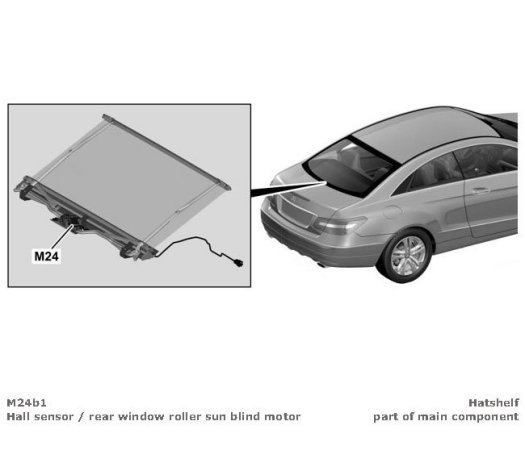

Hall Sensor / Rear Window Roller Sun Blind Motor


Hall Sensor/Rear Window Roller Sun Blind Motor:
