AR09.20-P-1993QB Remove/Install Resonance Flap Switchover Valve on the Intake Manifold
Removing/Installing the Resonance Flap Switchover Valve on the Intake Manifold

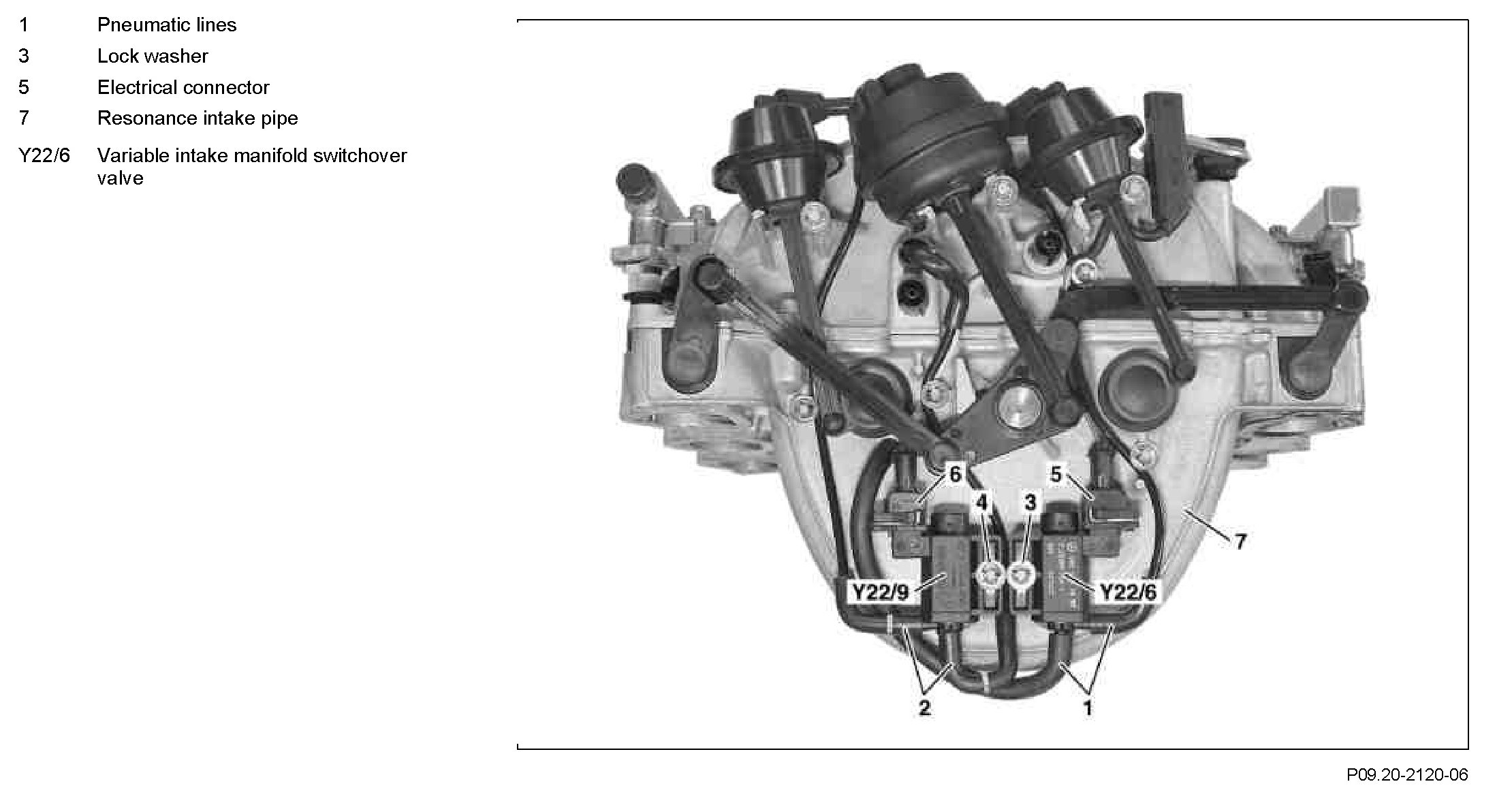

Component Identification:

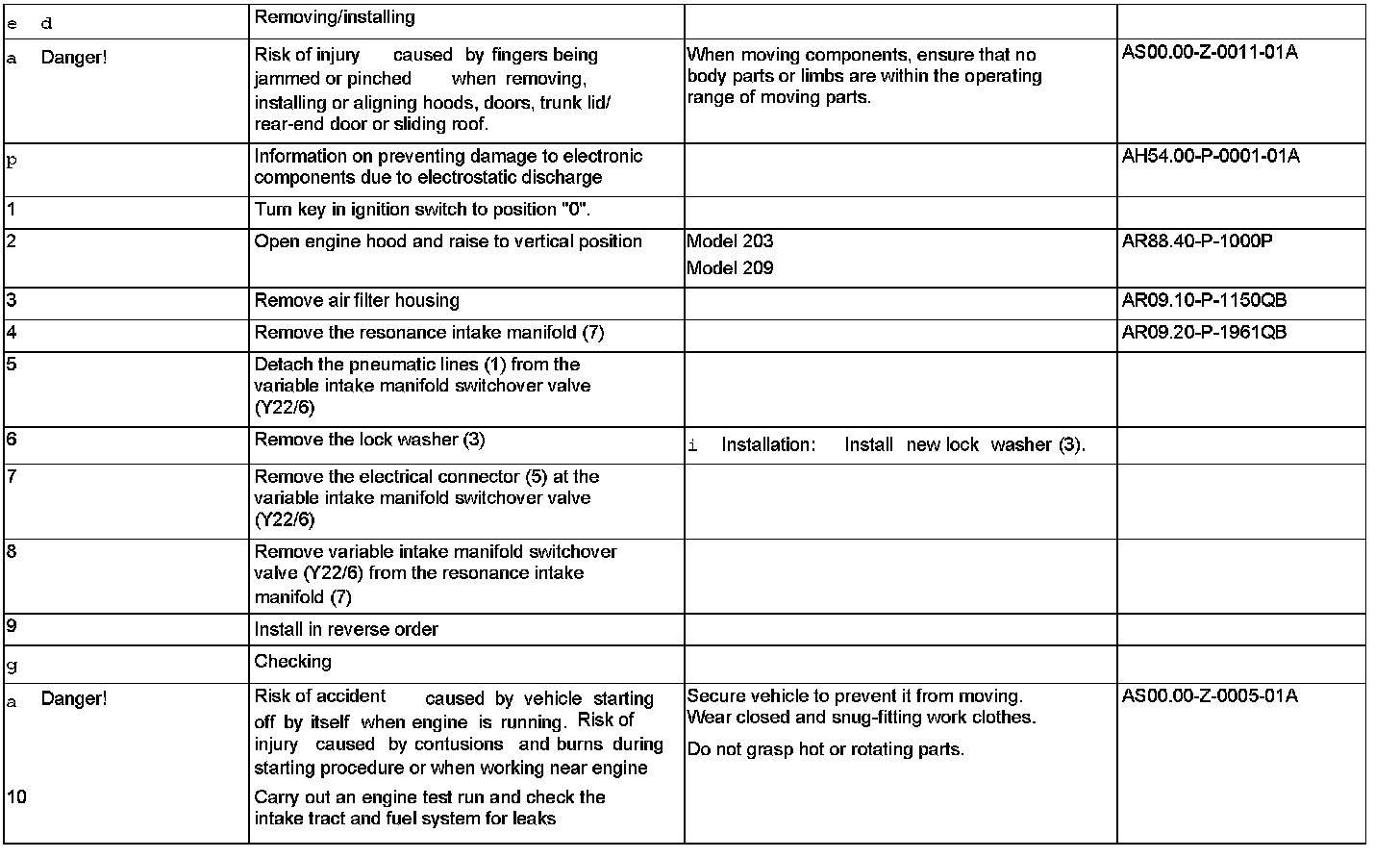

Steps 1 - 10:
Removing/Installing the Resonance Flap Switchover Valve on the Intake Manifold
