Blower Motor Relay: Service and Repair
AR83.25-P-1220EC Remove And Install Electronic Blower Control Unit

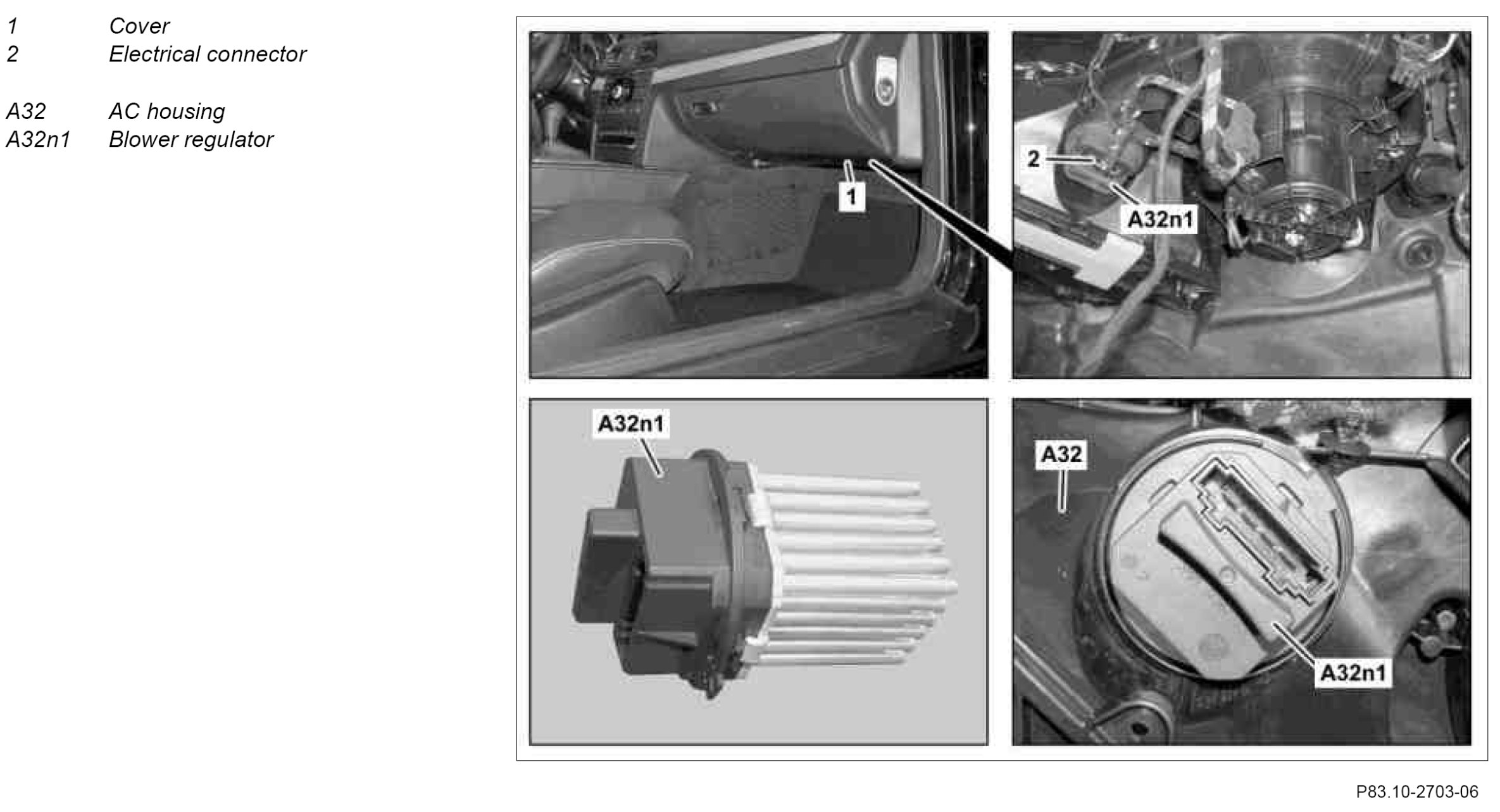

Component Identification:

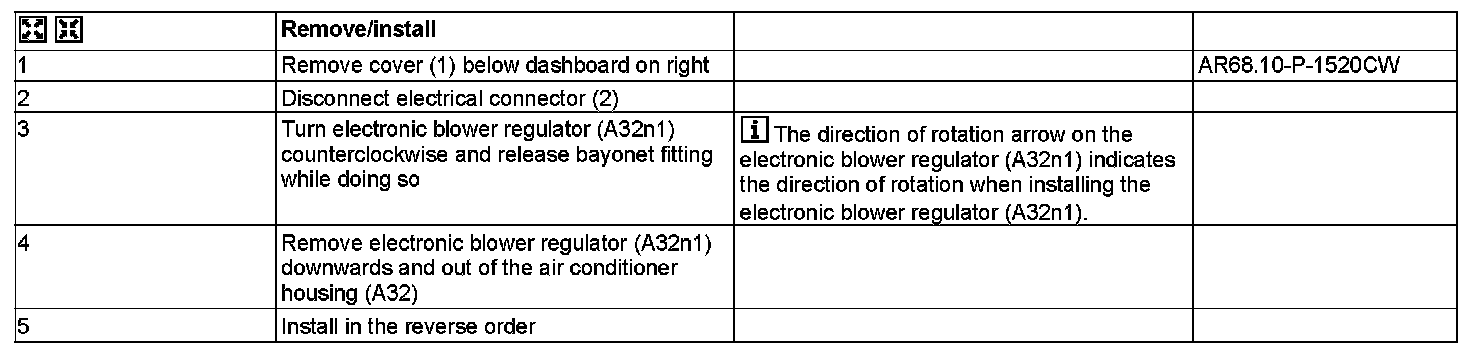

Steps 1-5:
