BT03.20-P-0003-01A Diameter of the Crankshaft Flange Altered

BT03.20-P-0003-01A Diameter Of The Crankshaft Flange Altered
ENGINES 273.92# ## as of 300194, 273.96# /97# ## as of 300346





273 589 00 43 00
Insertion tool





Altered crankshaft flange diameter

As of engine production date 06/10/08 crankshafts were installed whose crankshaft flange (3) had a diameter of 96 mm (it was previously a diameter of 93 mm).
During assembly of the end cover (2) (with a vulcanized crankshaft radial sealing ring (1)), it is therefore necessary to use the insertion tool as mentioned.

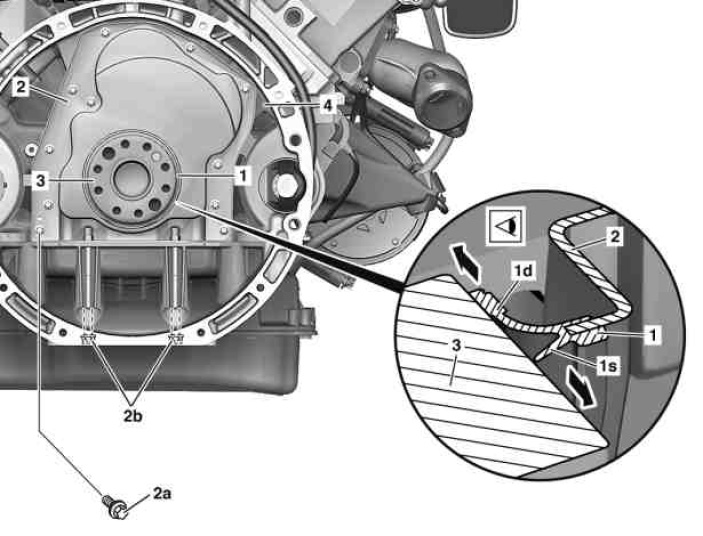

1 Crankshaft radial seal
2 End cover
3 Crankshaft flange
