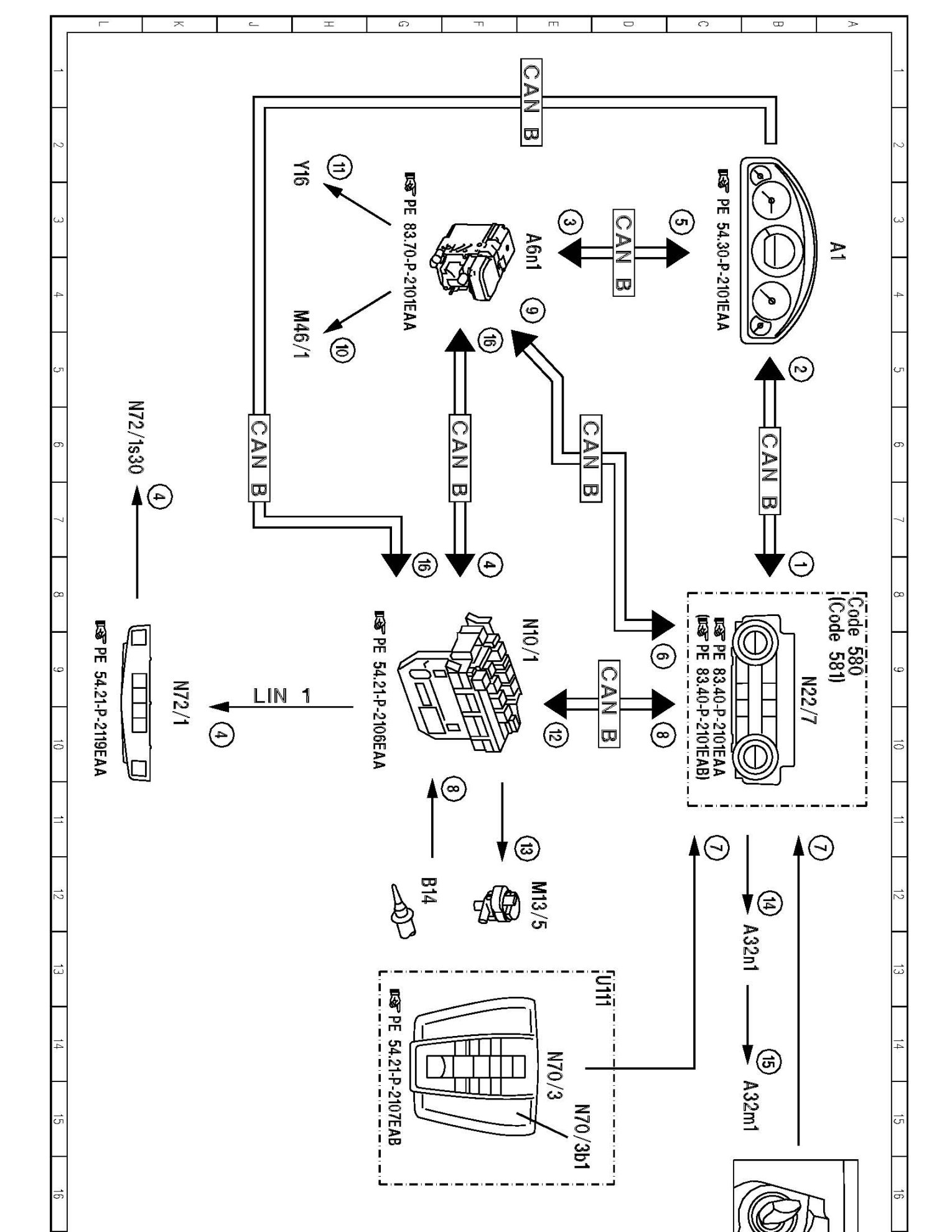

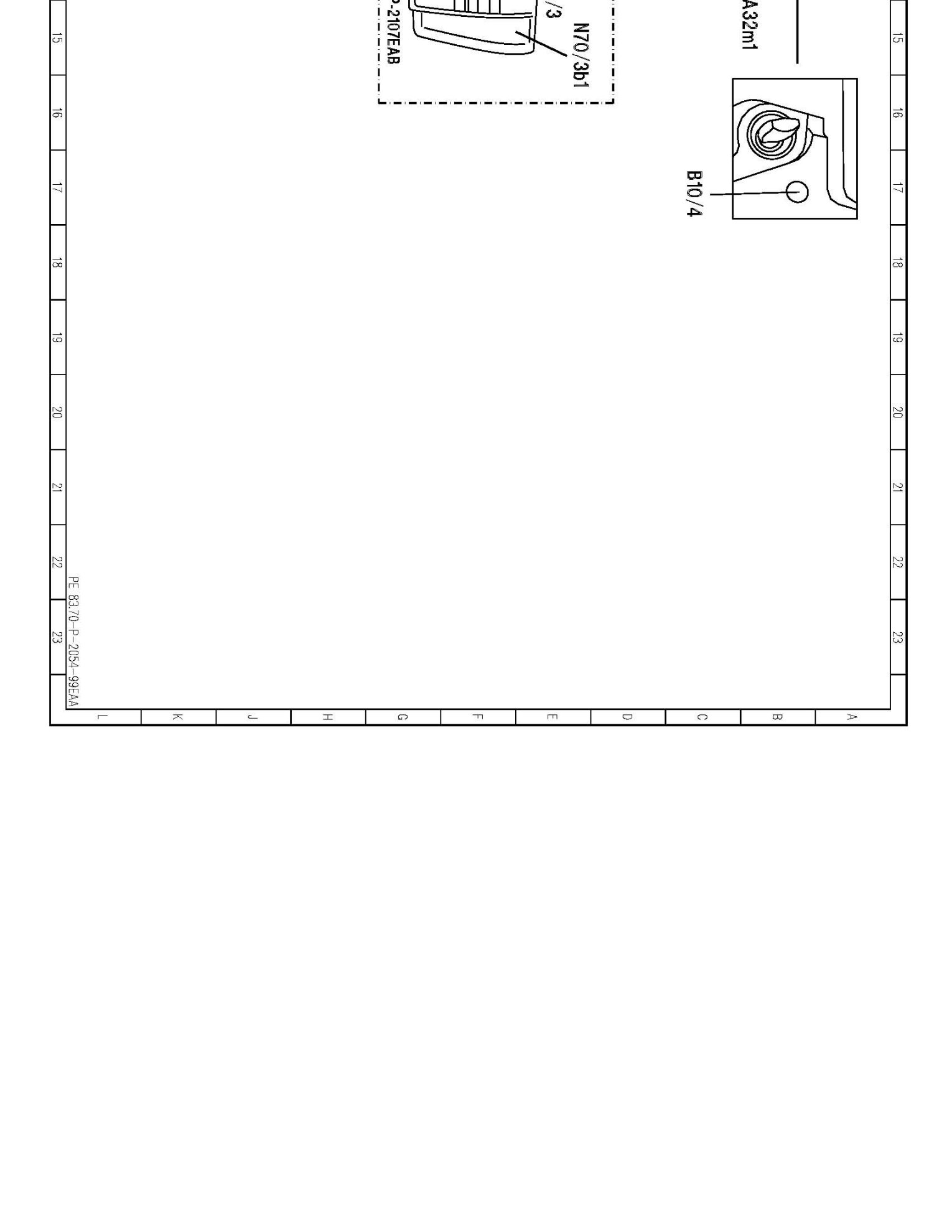

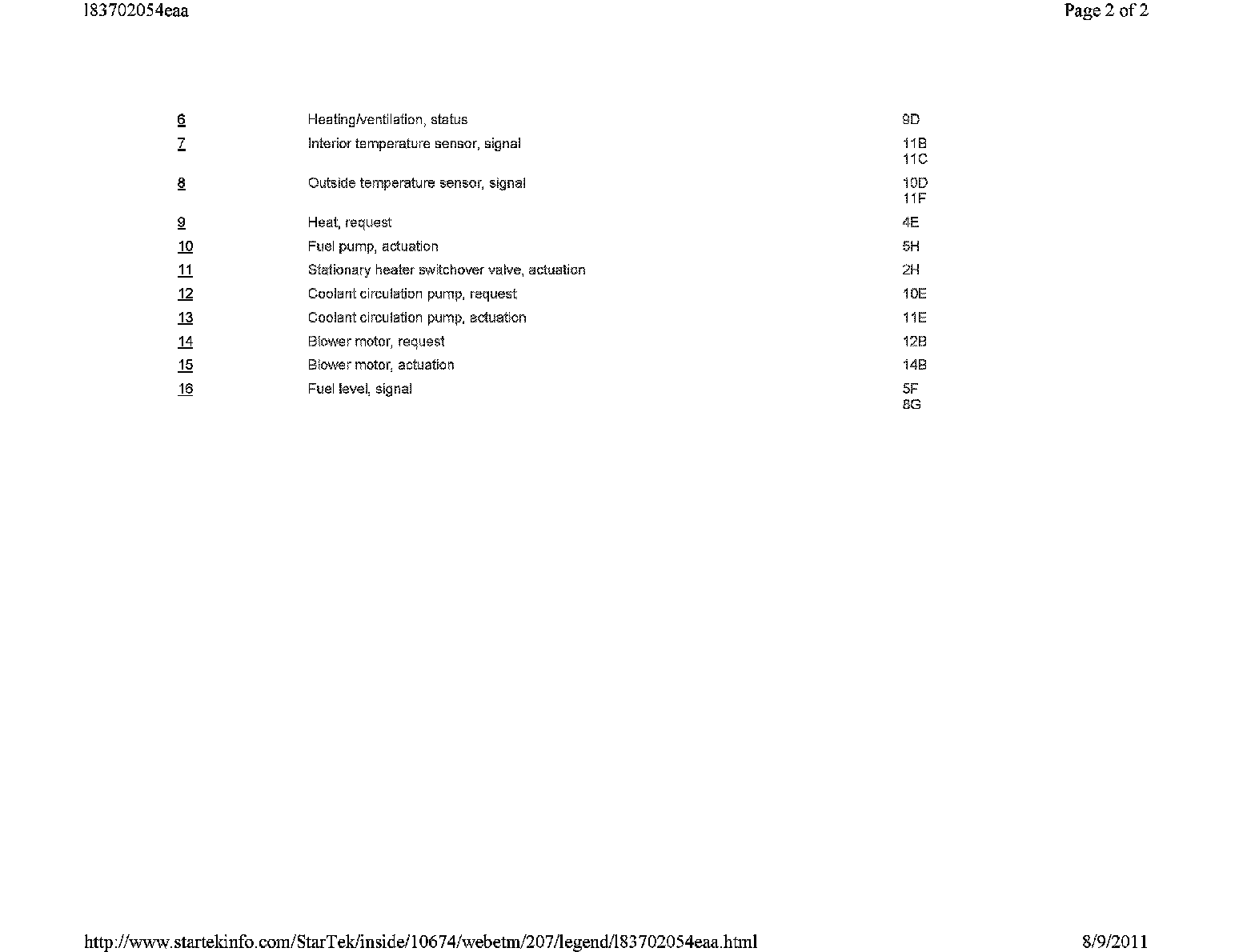

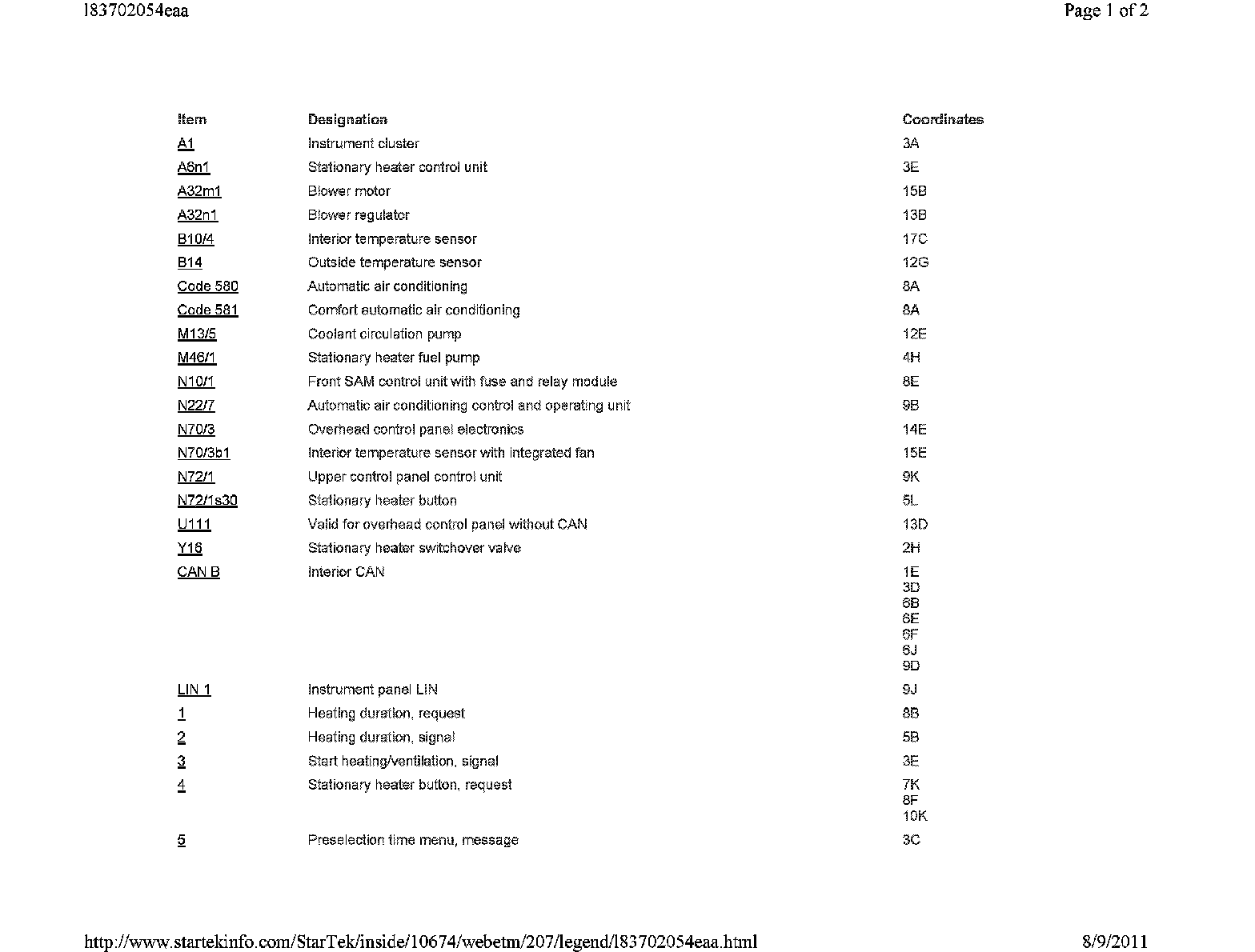

PE83.70-P-2054EAA Electrical Function Schematic, Trigger Heater Preselect Mode




PE83.70-P-2054EAA Electrical Function Schematic, Trigger Heater Preselect Mode
- with CODE (228) Stationary heater
