PE30.30-P-2053EAA Distronic PLUS Function Schematic
Distronic PLUS Function Schematic pe30.30-p-2053eaa

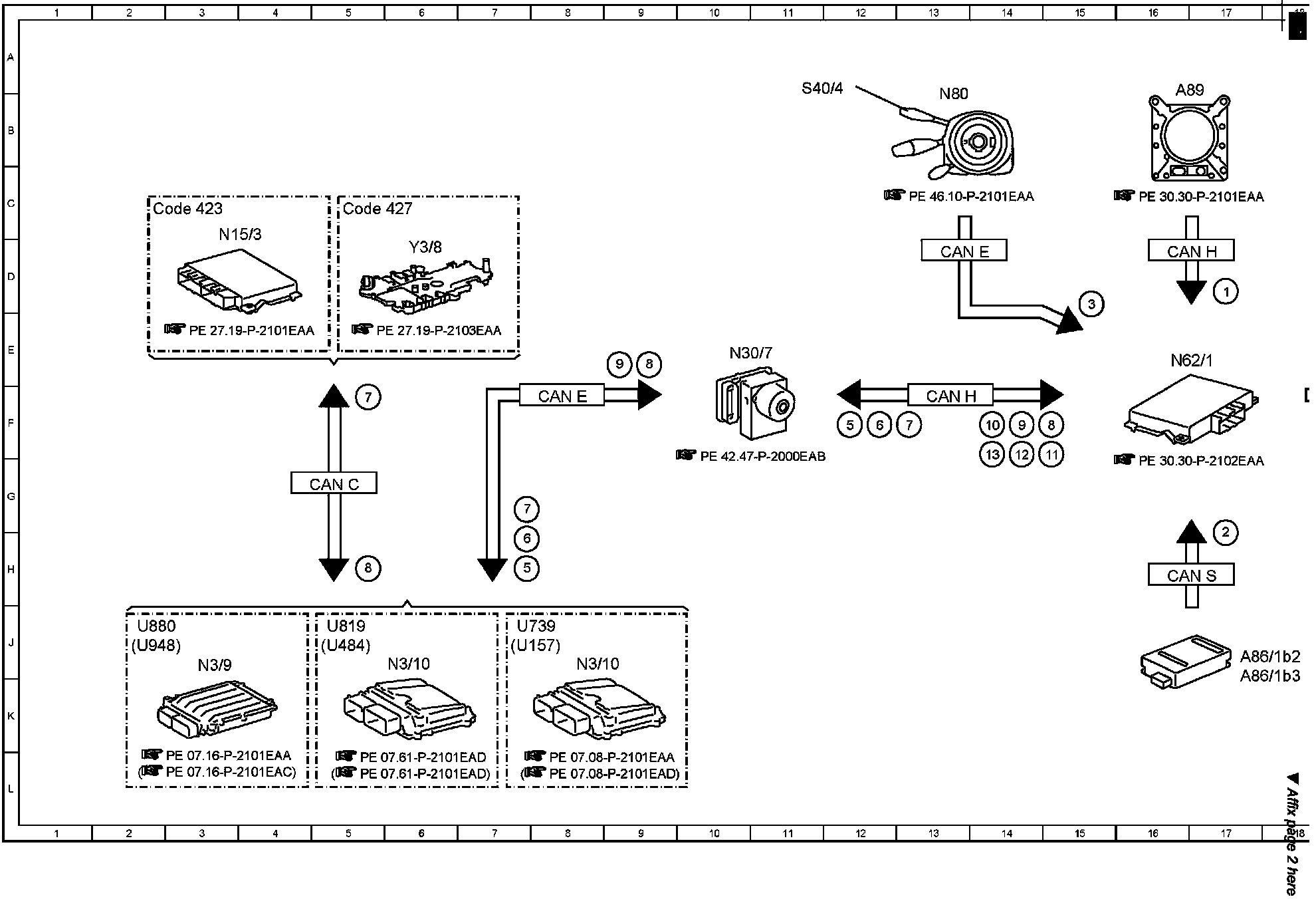

Function Diagram (Part 1):

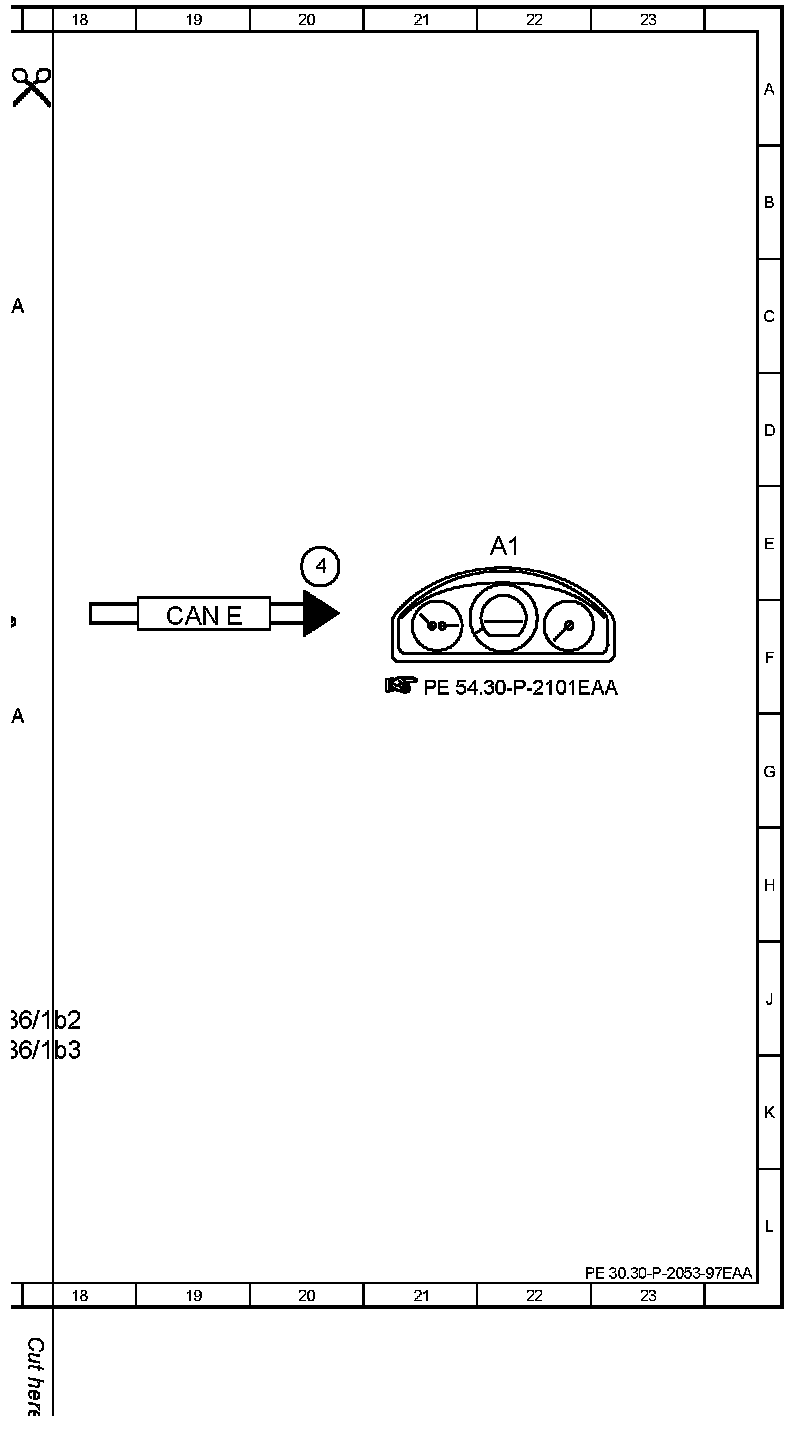

Function Diagram (Part 2):

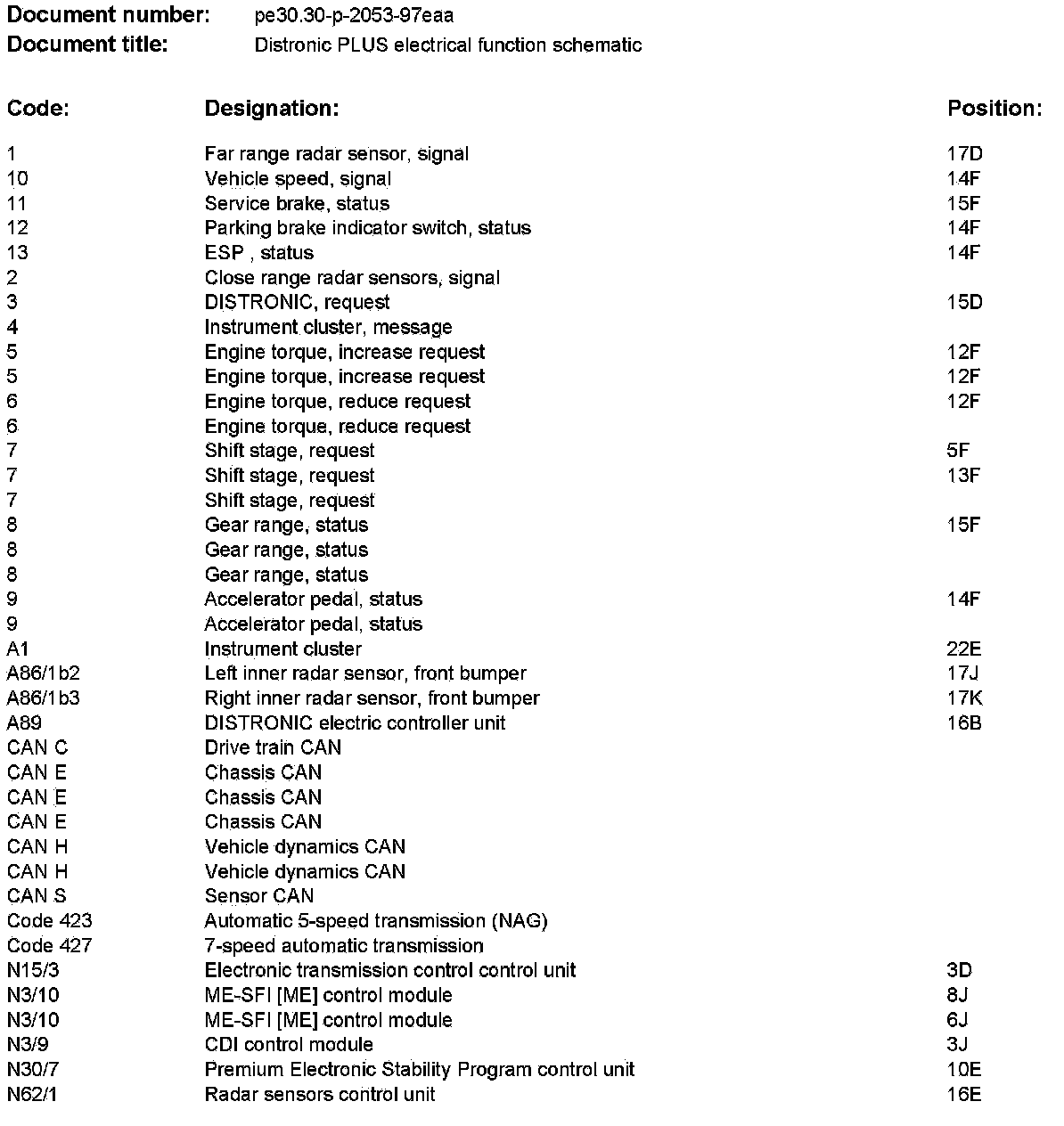

Component Description/Coordinates, 1 to N62/1:

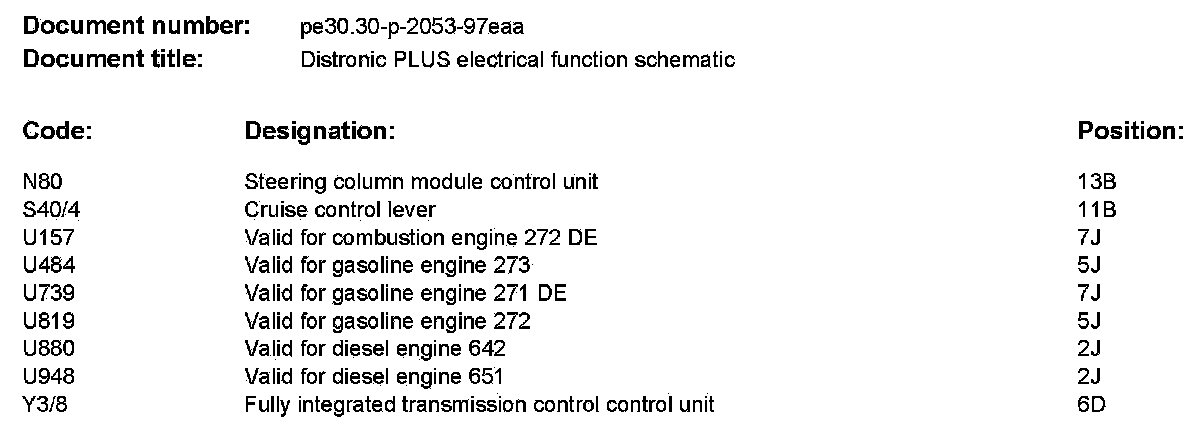

Component Description/Coordinates, N80 to Y3/8:
