Function Diagrams



Function Diagram For Power Windows pe72.29-p-2050eaa

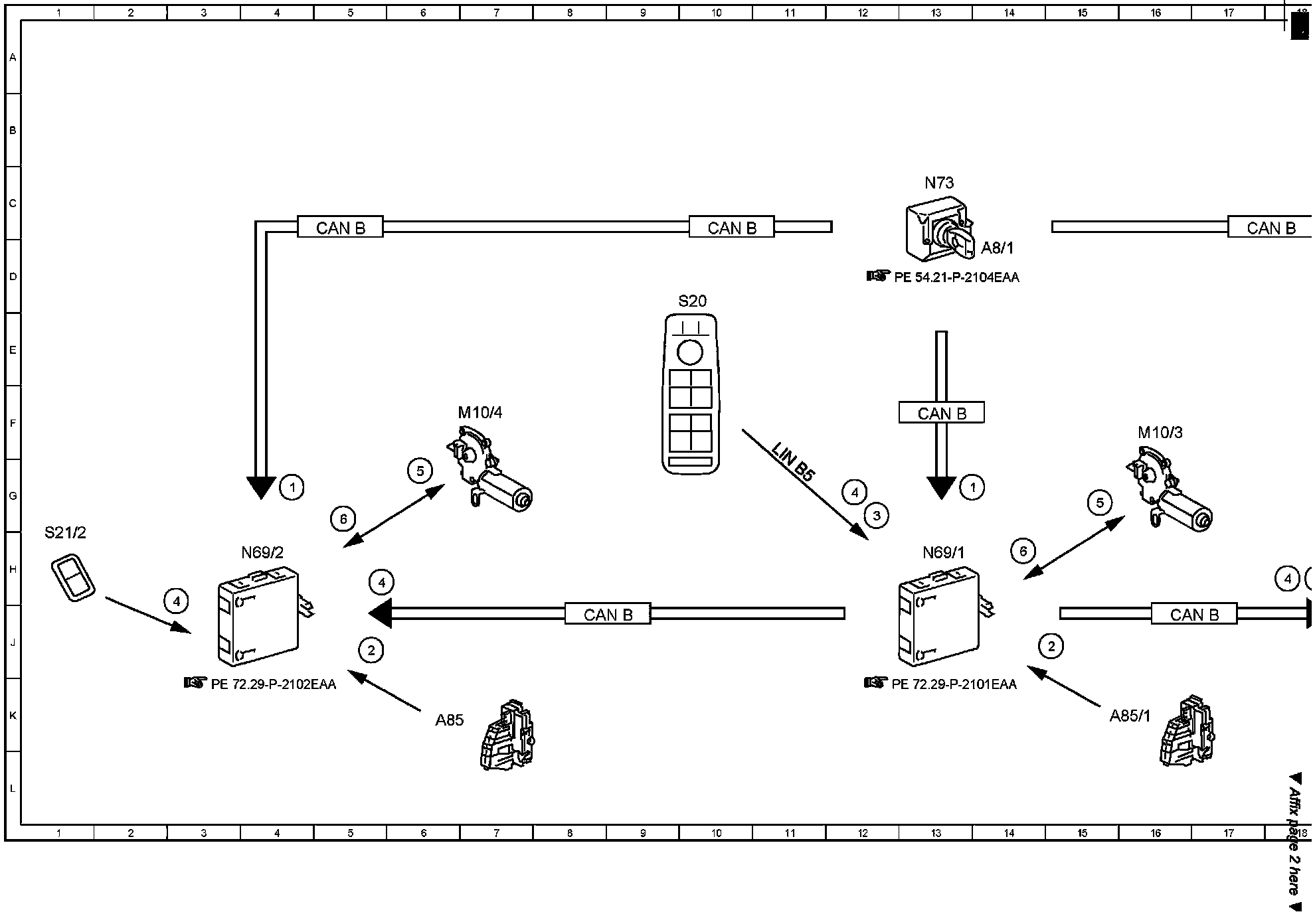

Function Diagram (Part 1):





Function Diagram (Part 2):

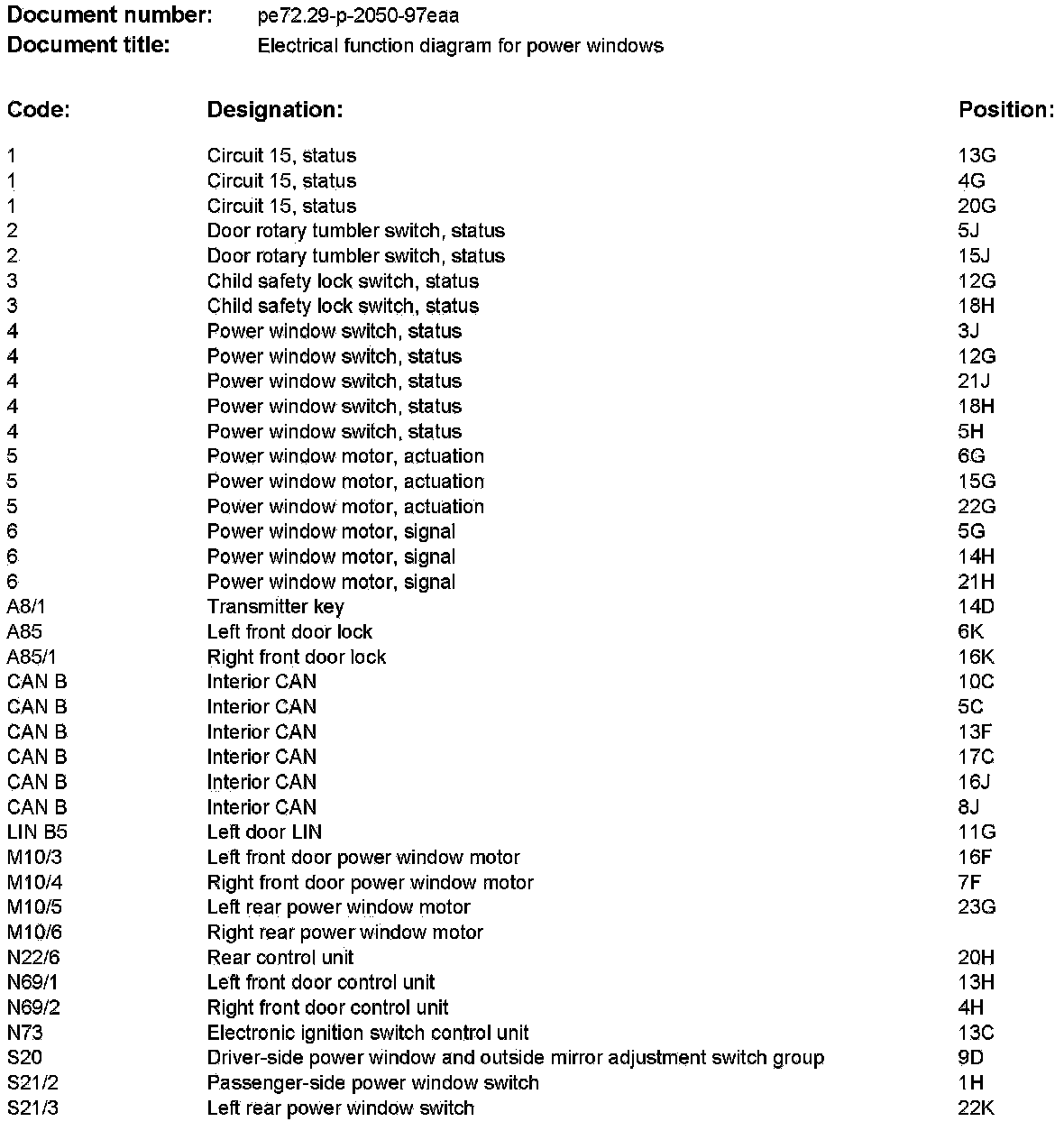

Component Description/Coordinates, 1 to S21/3:

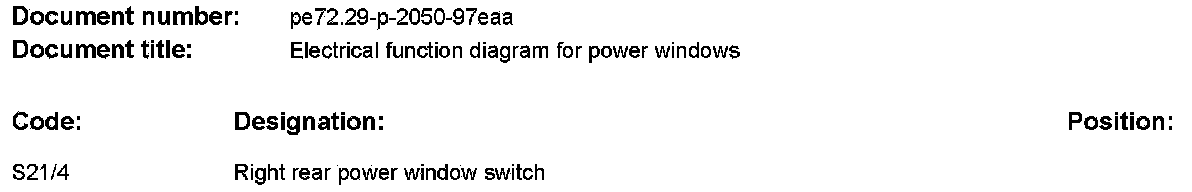

Component Description/Coordinates, S21/4:
