AR54.25-P-3270CW Remove/Install Light Switch Module
AR54.25-P-3270CW Remove/Install Light Switch Module
AR54.25-P-3270CW Remove/Install Light Switch Module

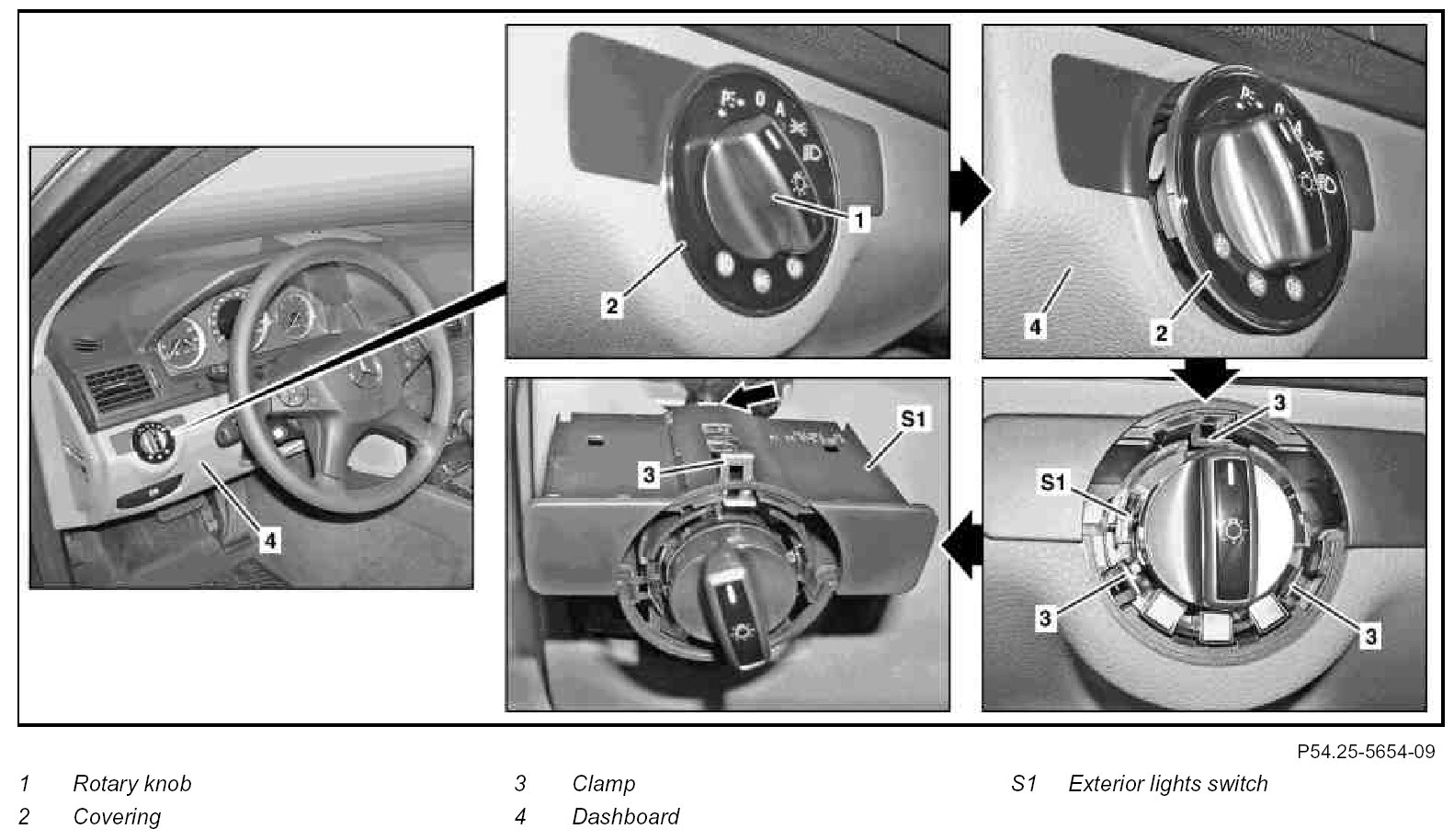

Component Identification:

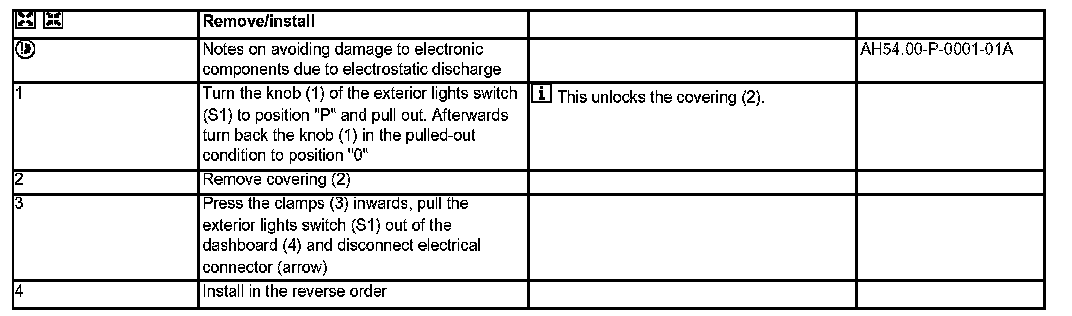

Steps 1 - 4:
