Connector Locations



Belt Tension Sensor Electrical Connector

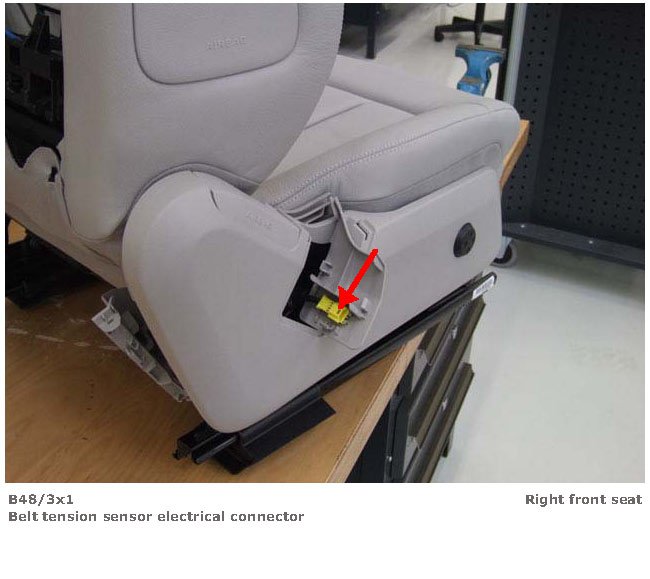

Belt Tension Sensor Electrical Connector (View 1):

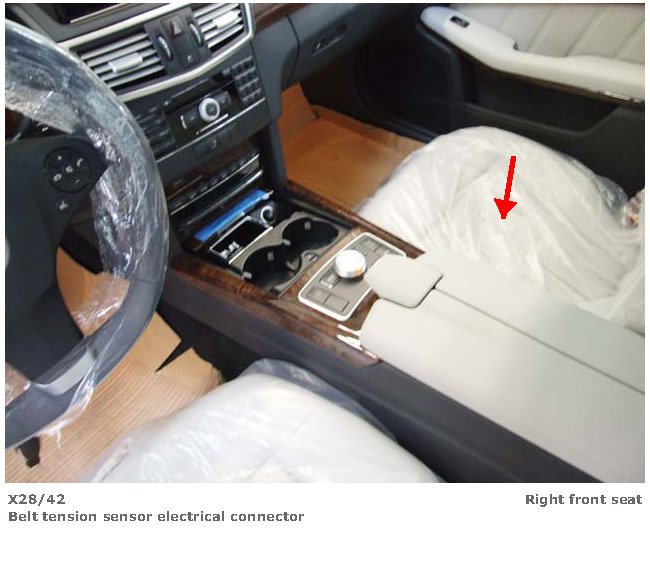

Belt Tension Sensor Electrical Connector (View 2):

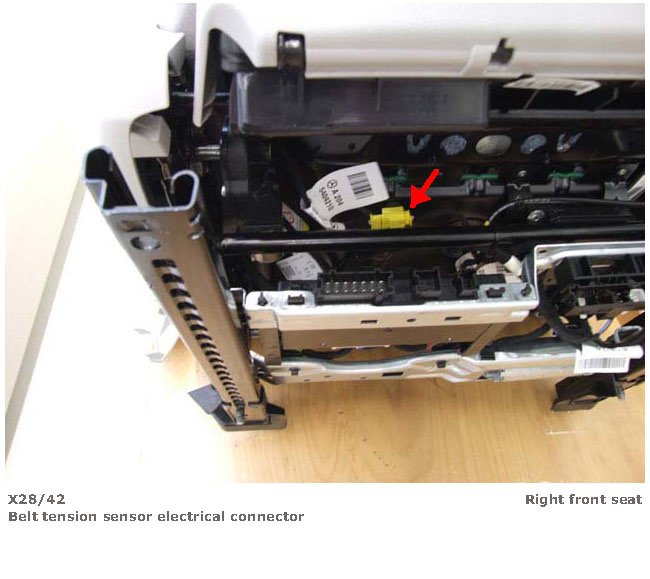

Belt Tension Sensor Electrical Connector (View 1):




Belt Tension Sensor Electrical Connector (View 2):
