Seat Occupant Classification Module - Air Bag: Locations



Weight Sensing System [WSS] Control Unit

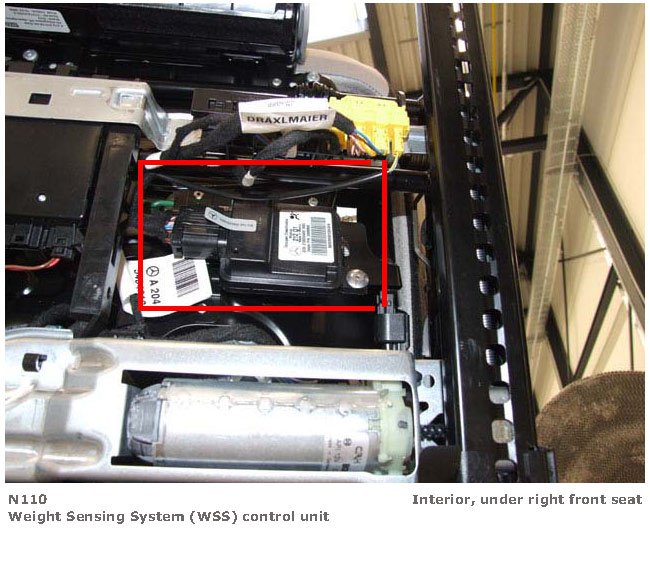

Weight Sensing System [WSS] Control Unit (View 1):

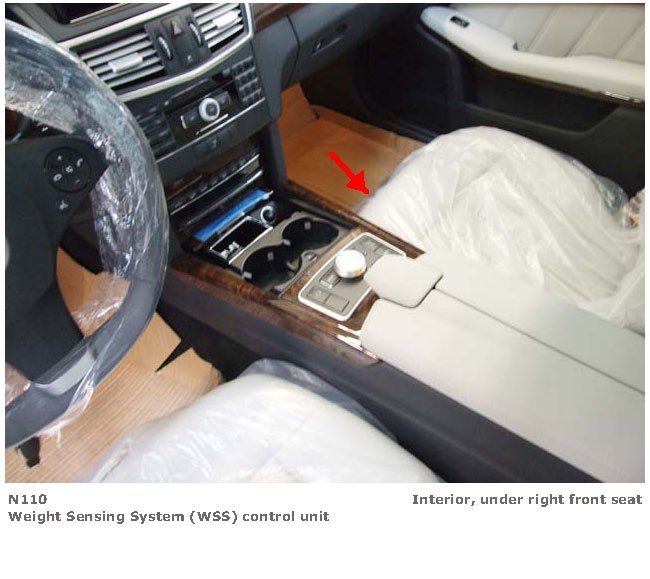

Weight Sensing System [WSS] Control Unit (View 2):

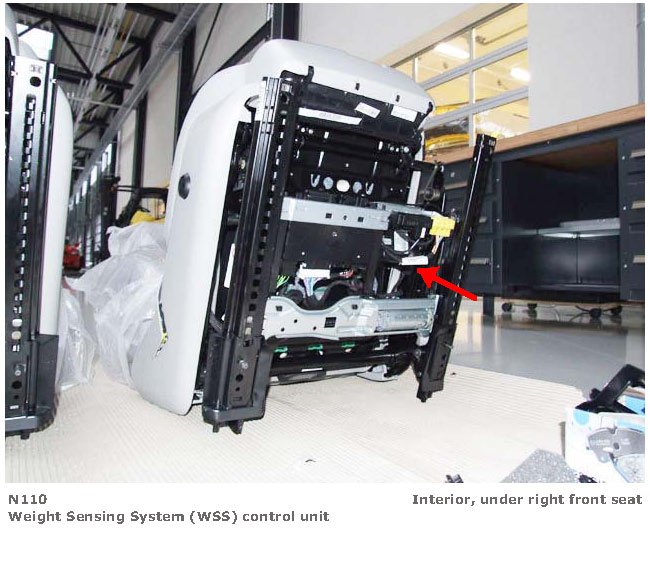

Weight Sensing System [WSS] Control Unit (View 3):
