Home >> Mercedes Benz >> 2010 >> E 350 4MATIC Sedan (212.087) V6-3.5L (272.977) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Wiper and Washer Systems >> Wiper Relay >> Locations >> Tailgate Windshield Wiper Relay

Tailgate Windshield Wiper Relay



Tailgate Windshield Wiper Relay

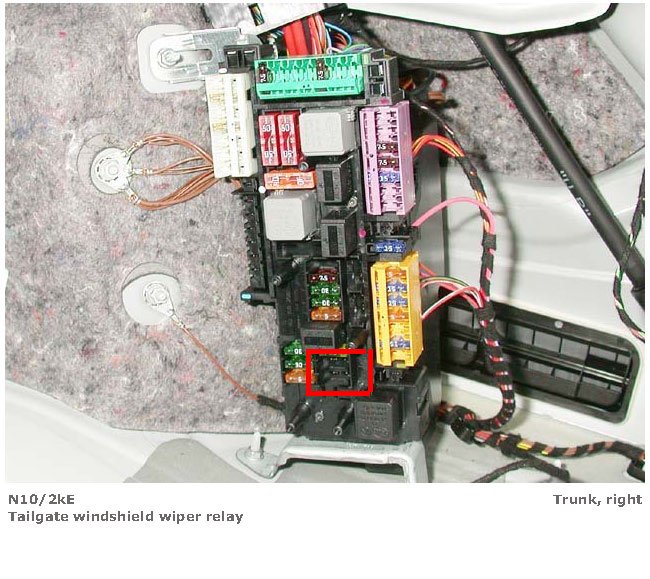

Tailgate Windshield Wiper Relay (View 1):

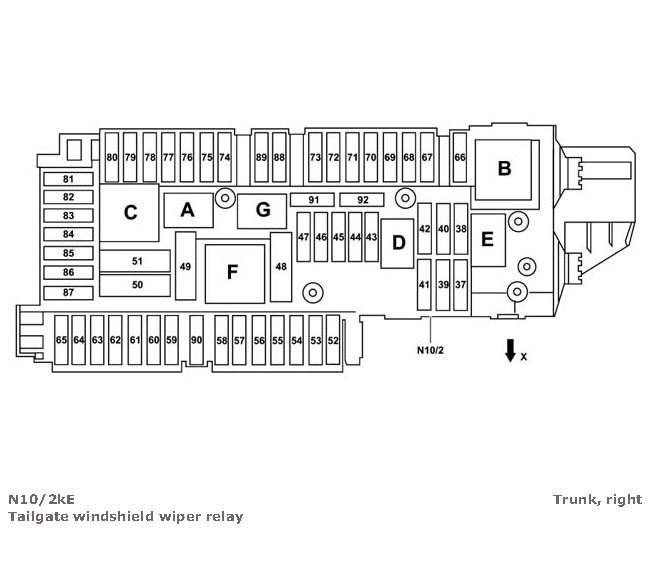

Tailgate Windshield Wiper Relay (View 2):

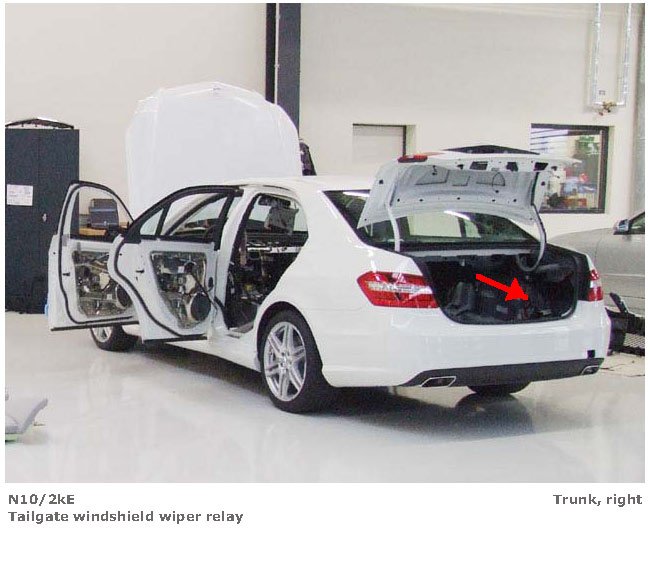

Tailgate Windshield Wiper Relay (View 3):

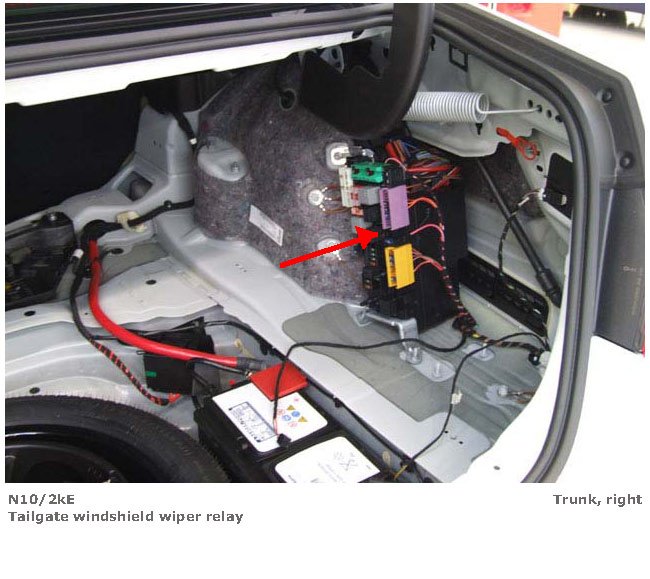

Tailgate Windshield Wiper Relay (View 4):
