Air Injection Pump Relay
>>
Locations
Air Injection Pump Relay: Locations
Secondary Air Injection Relay

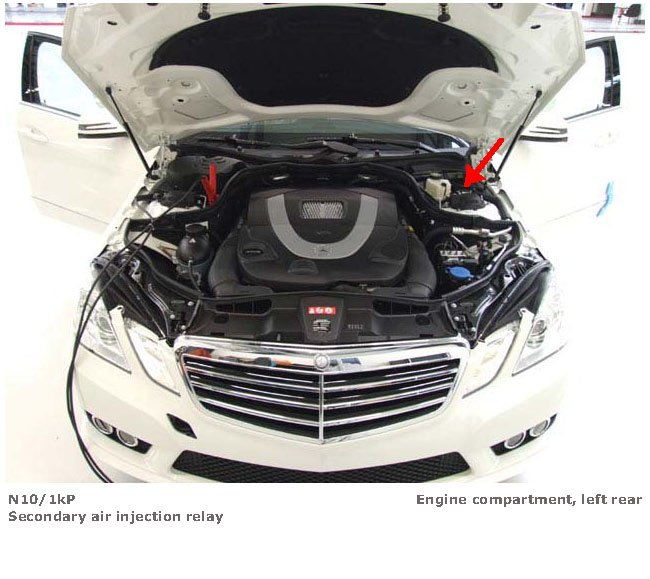

Secondary Air Injection Relay (View 1):

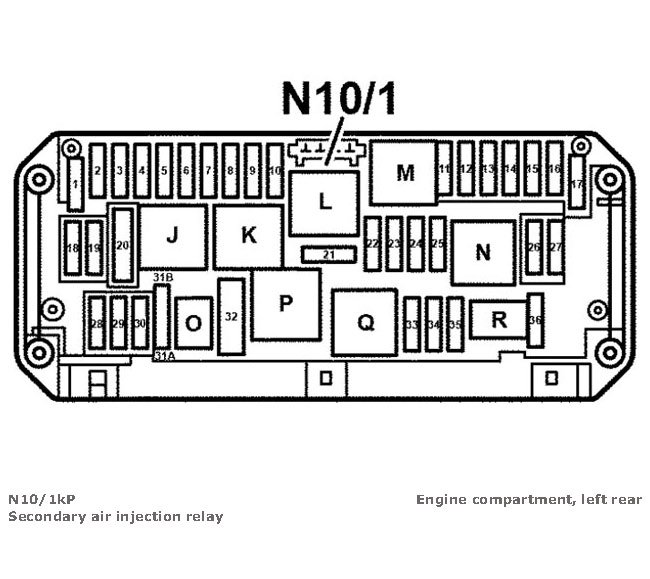

Secondary Air Injection Relay (View 2):

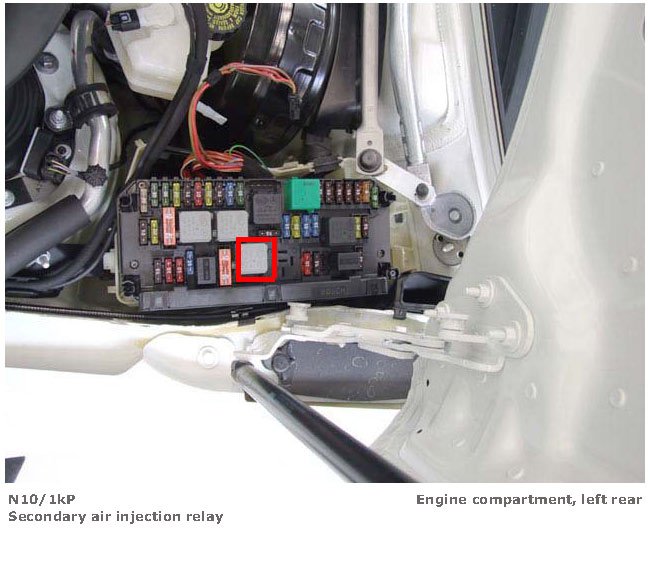

Secondary Air Injection Relay (View 3):
