E 350 4MATIC Sedan (212.087) V6-3.5L (272.977)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Brake Signal
>>
Locations
Brake Signal: Locations
Axle Brake Pressure Sensor, Front

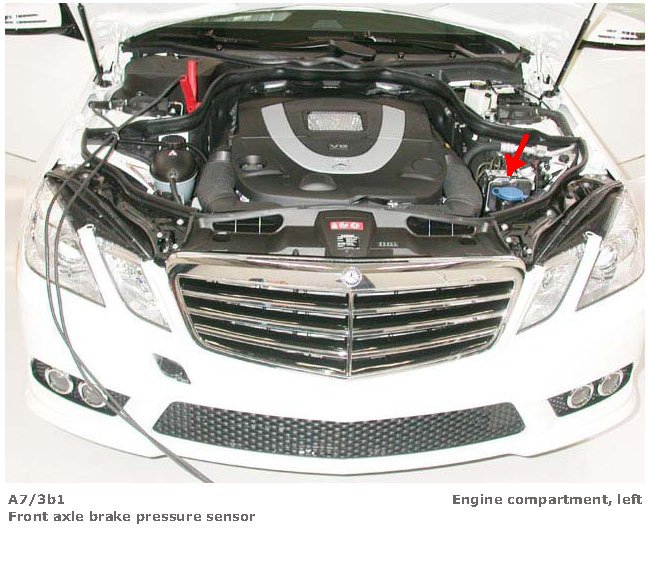

Front Axle Brake Pressure Sensor (View 1):

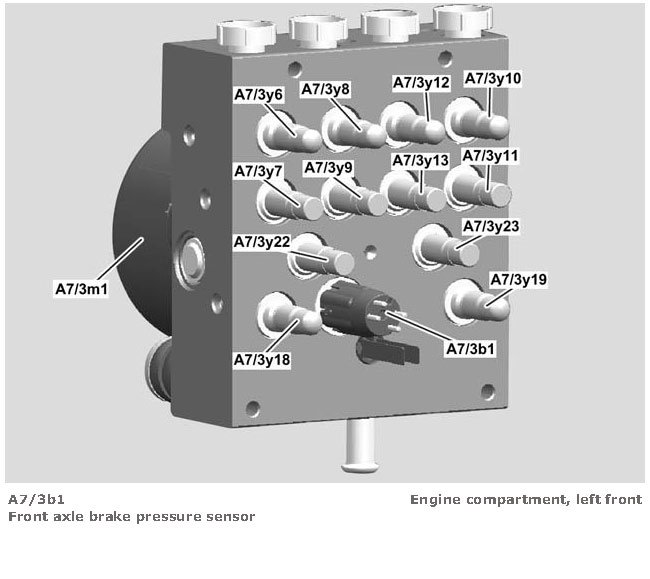

Front Axle Brake Pressure Sensor (View 2):

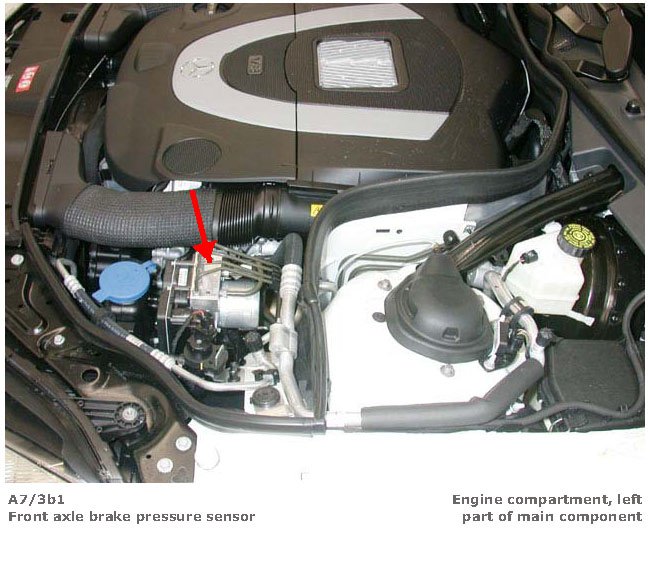

Front Axle Brake Pressure Sensor (View 3):
