PE54.30-P-2059DAA Function Schematic, Speed Limit Assist



Function Schematic, Speed Limit Assist pe54.30-p-2059daa
- with CODE (513) Speed Limit Assist

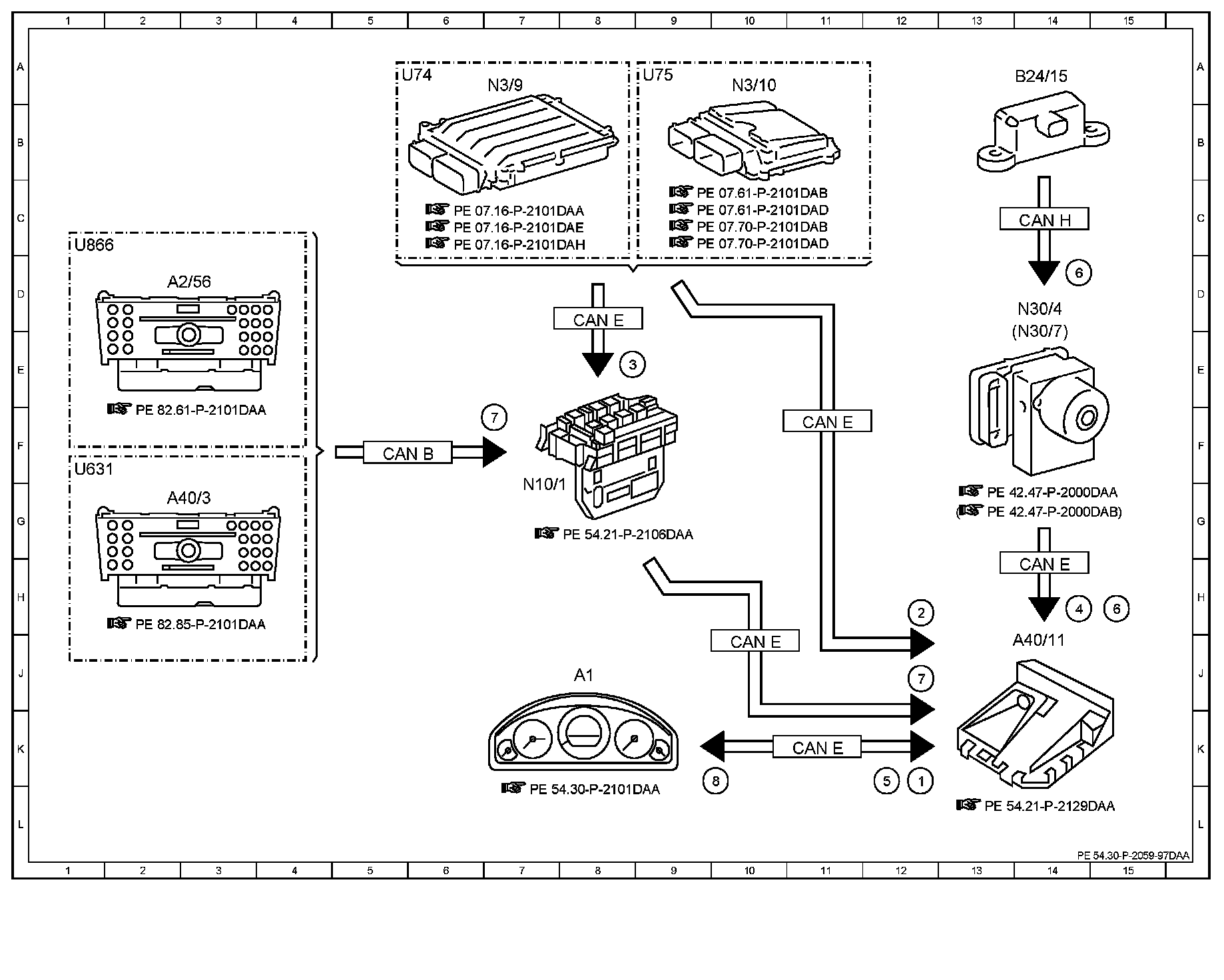

Function Diagram:

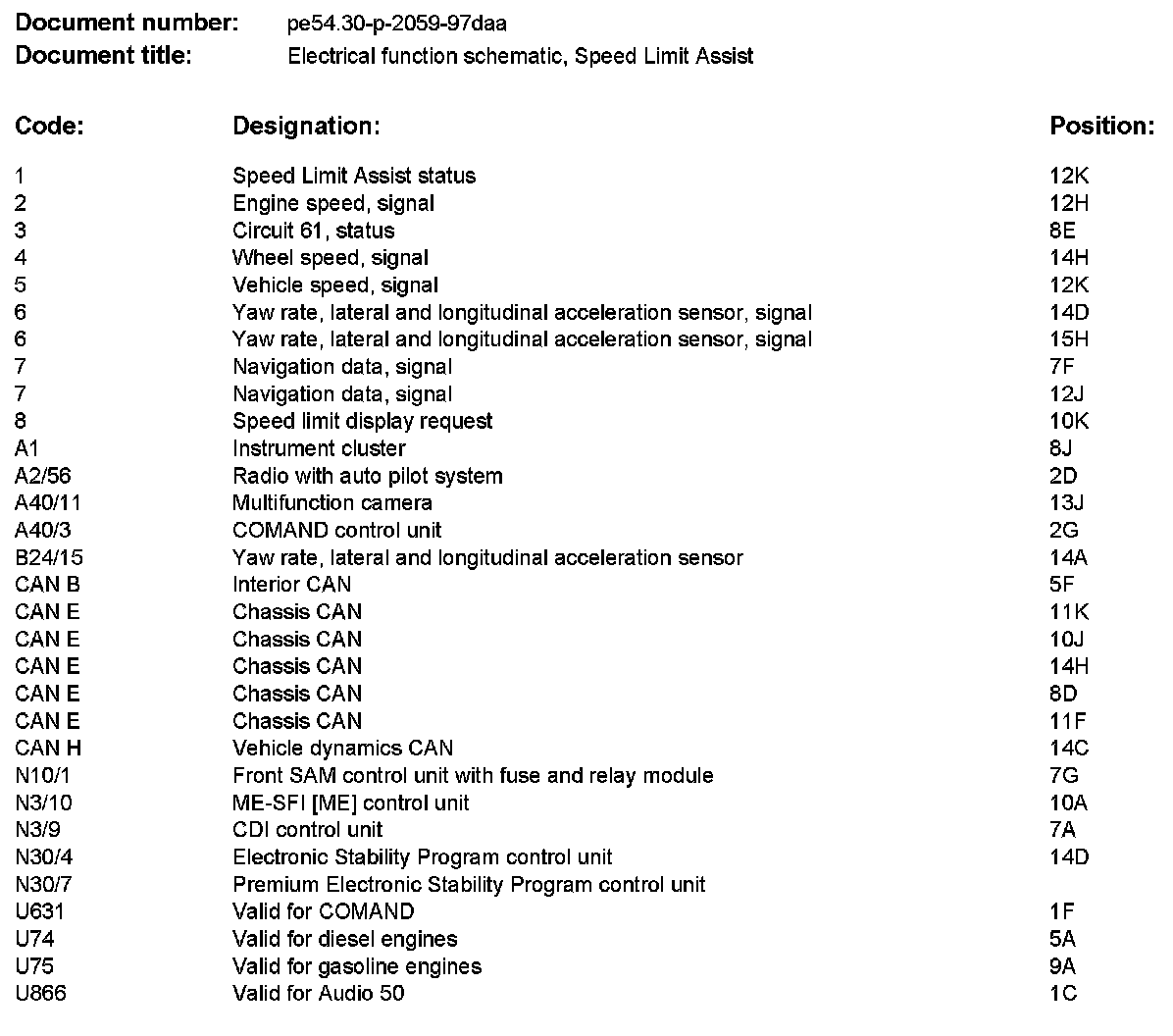

Component Description/Coordinates, 1 To U866:
